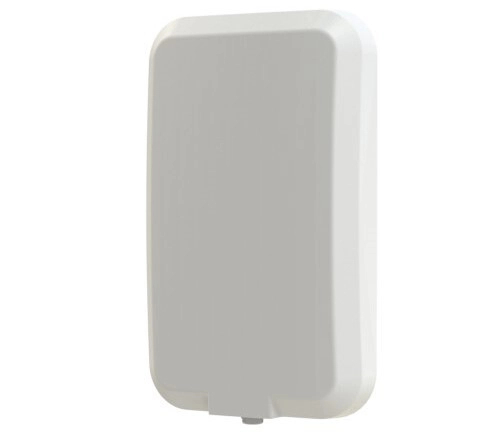

Panorama 2×2 MIMO 3G, 4G & 5G Panel Antenna

SKU: WMM2G-6-60

Key Features

  • Ultra wide-band coverage 700 to 6000MHz
  • Wall Mount or Pole Mount
  • Your choice of cable length and connectors (SMA or N-type)
  • Two cables for true 2×2 MIMO operation
  • Wide spectrum design, suits all current and planned cellular networks (including 5G Networks).

Additional Information

  • The WMM2G-6-60 is a high gain directional 2×2 MiMo antenna for 4G and 5G networks.
  • It incorporates two wideband element assemblies in a single housing and is designed to support fixed site client devices. It offers 6dBi peak gain for 617- 960MHz and 9dBi peak gain for 1710-6000MHz.
  • The weather resistant housing is designed for wall or mast mounting with the supplied hardware.
  • The standard WMM2G-6-60-5SP version has 5m length ultra-low loss CS32 type coaxial cables which eliminates exposed connector joints and simplifies the installation process
  • The WMM2G-6-60-05NJ version has 50cm length cables, fitted with N type jacks, which is ideal for installations that require a longer cable run.
  • The WMM2G-6-60 is a value added product for network operators and service providers by improving the link resilience to the router, achieving increased data rates.
