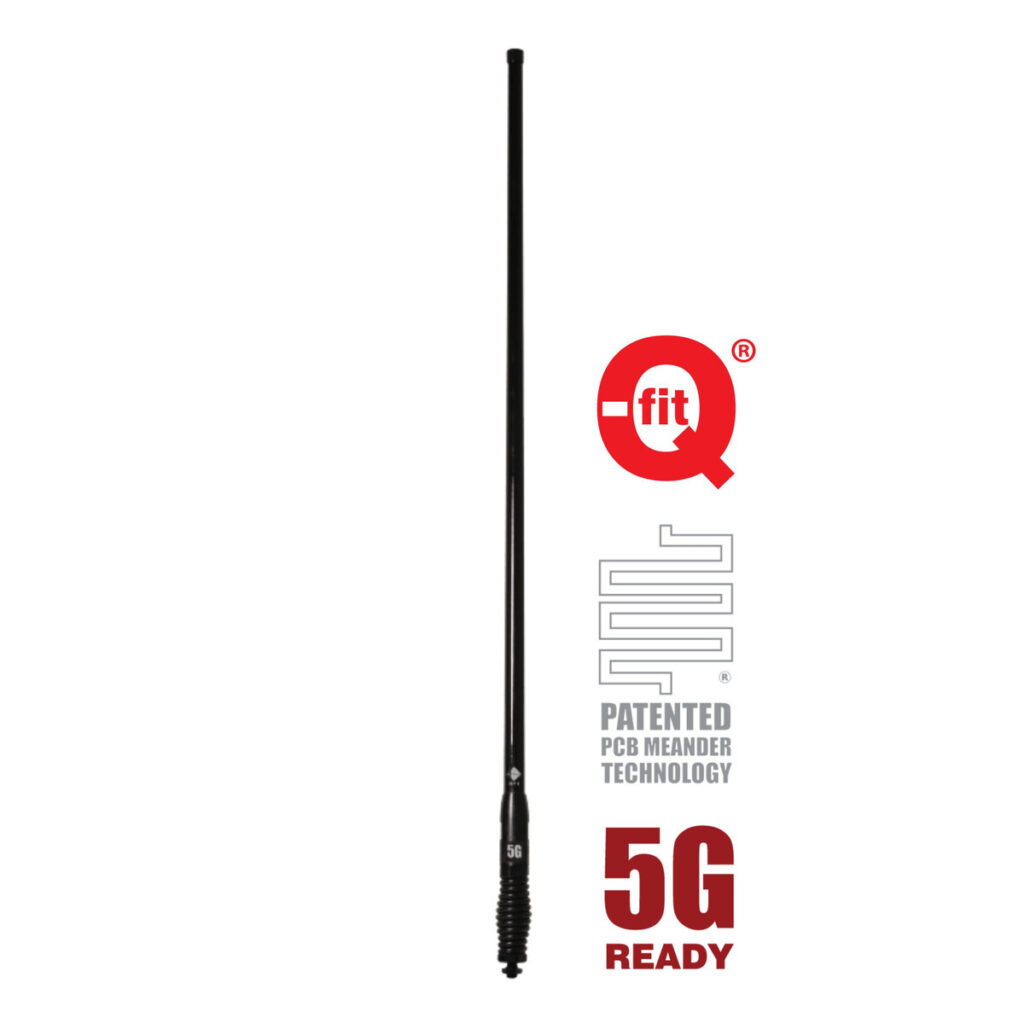

RFI CDQ8197 – 7.5dBi Quick Removable Spring Based Mobile Antenna 3G+4G+5G

SKU: CDQ8197

Key Features

  • The RFI CDQ8197 is perfect for the traveller heading to regional areas, providing enough gain to stop the drop outs between towns but still providing a 20° vertical beamwidth to get the service up and over the rolling hills or dunes.
  • Ideal for new 5G/LTE networks with true multi-band coverage.
  • Multiband covering all of the 3G, 4G & 5G frequencies currently in use
  • Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security purposes
  • Patented PCB based collinear design offering the ultimate in pattern and gain stability
  • Supplied with 5m low loss coaxial cable, with Male SMA connector

Additional

  • The new CDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700MHz) but now the new 5G LTE band (3400-3800 MHz) and is ideal for use with cellular modems & active repeaters, especially when signal is poor.
  • The outstanding performance of the CDQ8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit. It is our flagship product and is designed for the harsh Australian conditions. & includes an integrated spring with threaded stud/nut for easy installation on vehicles.
  • The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
  • It’s important to note this antenna does not provide MIMO, if you require the best possible Internet performance, you should use two antennas, separated by around 300mm.
  • “Q-Fit™ removable whip system for fast and simple removal when entering low height areas, car washes or for antenna security.” – read more on the RFI website

Usage

  • As a rule of thumb: the higher the dBi, the flatter the angle the antenna can receive from making this antenna perfect for the regional travellers
  • The CDQ8197 provides an impressive 7.5dBi gain on lower bands such as 3G, Next-G, and 4GX, as well as a modest 4.5dBi gain on regular 4G bands & 6.5dBi on the higher 5G 3500MHz band.
  • With a 13mm stud mount on an heavy duty black electropolished stainless steel spring, these antennas may be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks
  • The CDQ8197’s fully ground-independent design results in true 7.5dBi gain regardless of mounting position.

A heads up!

  • This product is over 1100mm long and can only be delivered by a courier (not Australia Post), therefore, we cannot accept a PO Box.
  • Please provide an address where someone will be present to sign for the package.

Connection

  • This antenna has a 5m cable that terminates with an SMA Male connector

The SMA Male is the most common type of connector for mobile antennas and mates with the SMA Female connector found on the Cel Fi Repeaters & our various patch leads.

If you would like a shorter length of cable, or a different connector, please contact us so we can customise this antenna for you.
