Yarra Valley Mobile Voice & Broadband

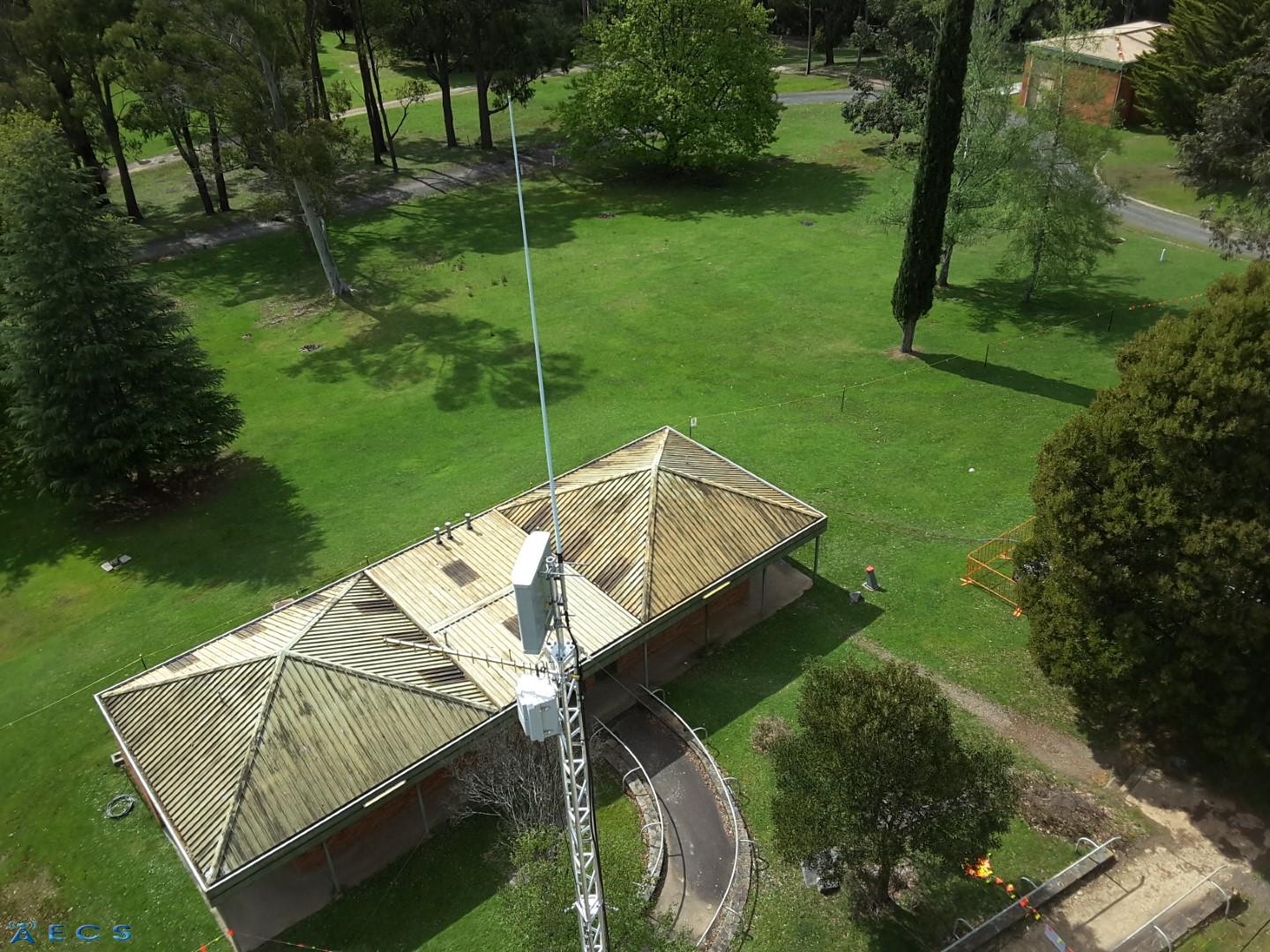

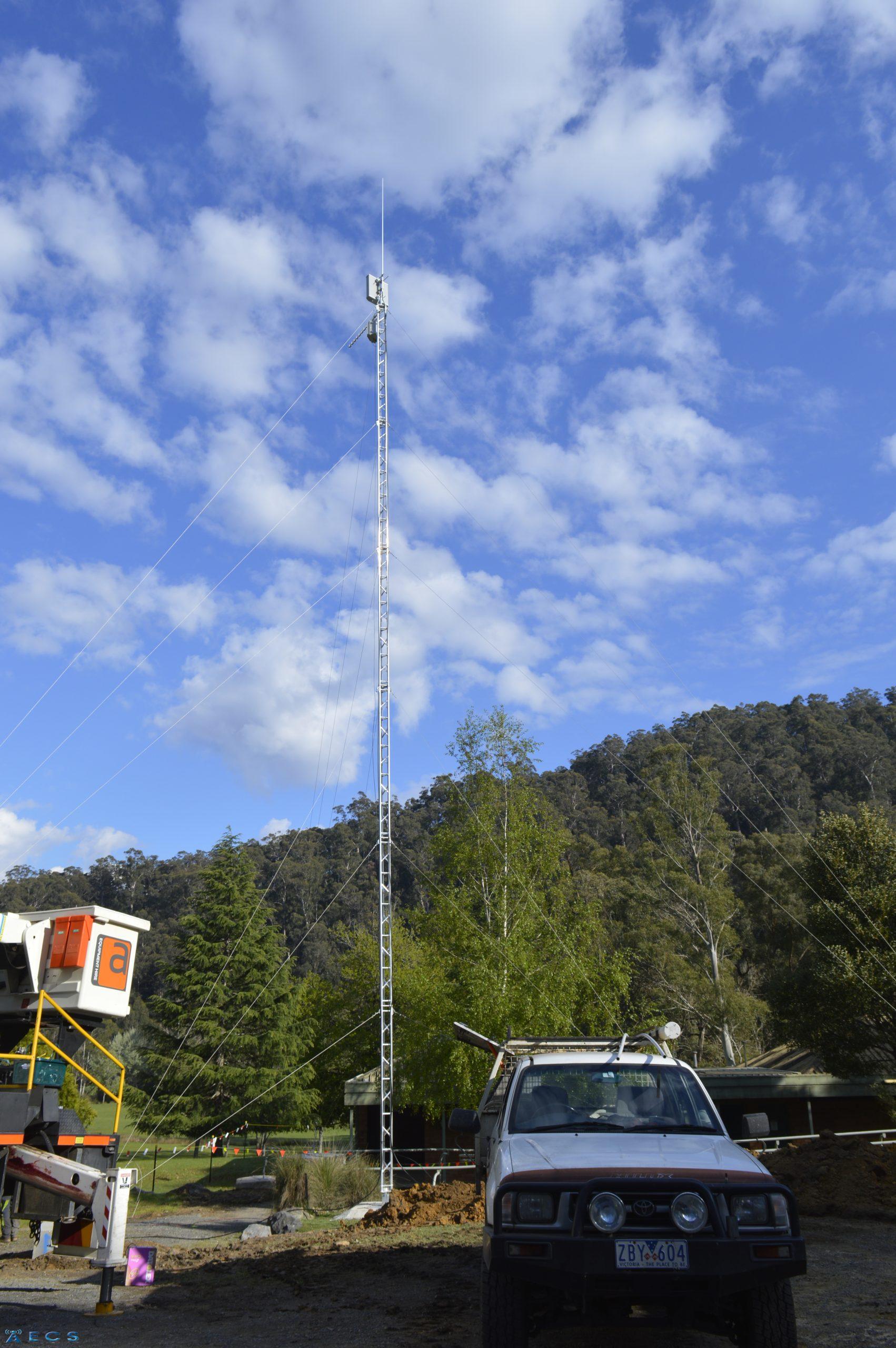

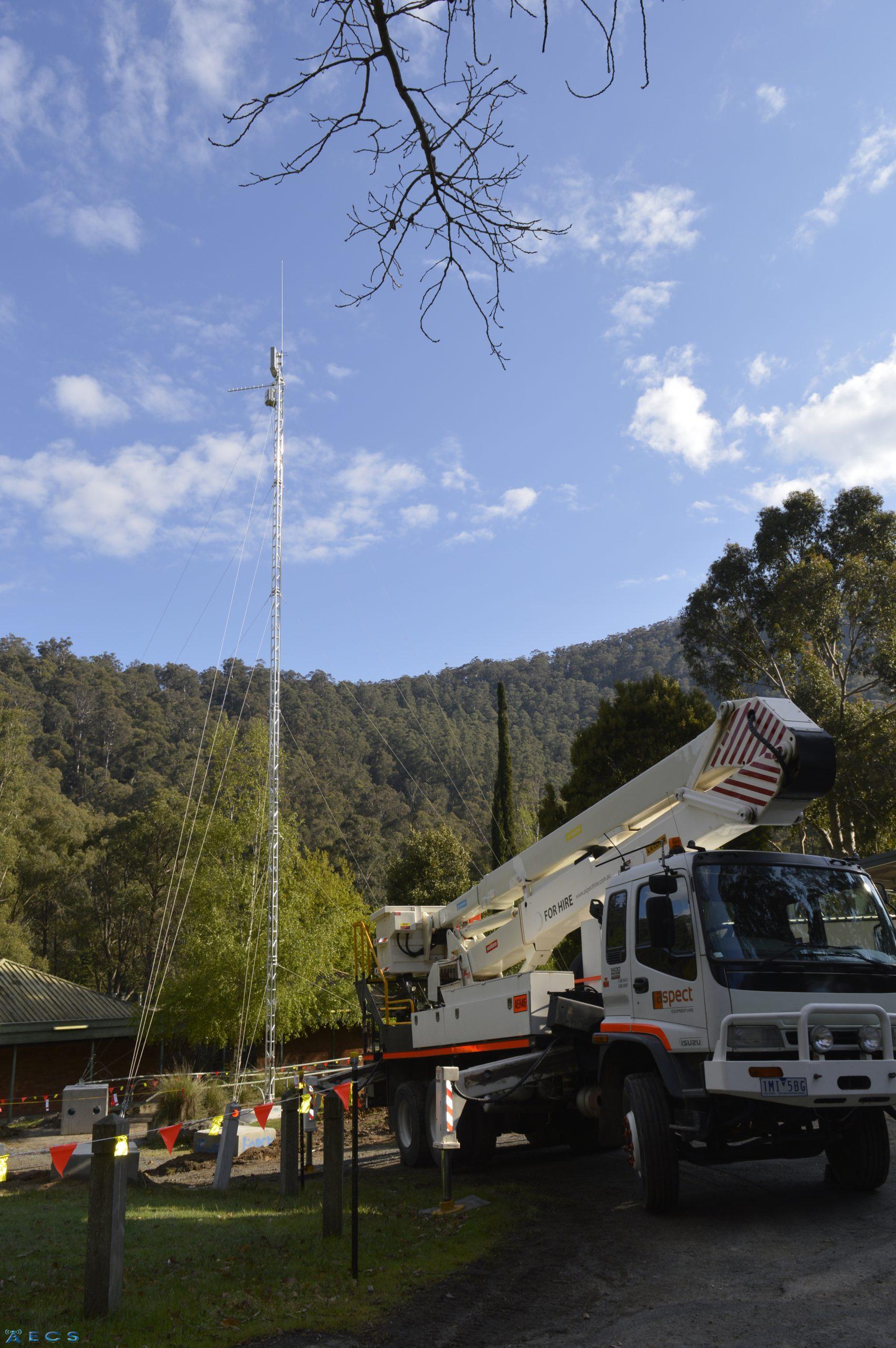

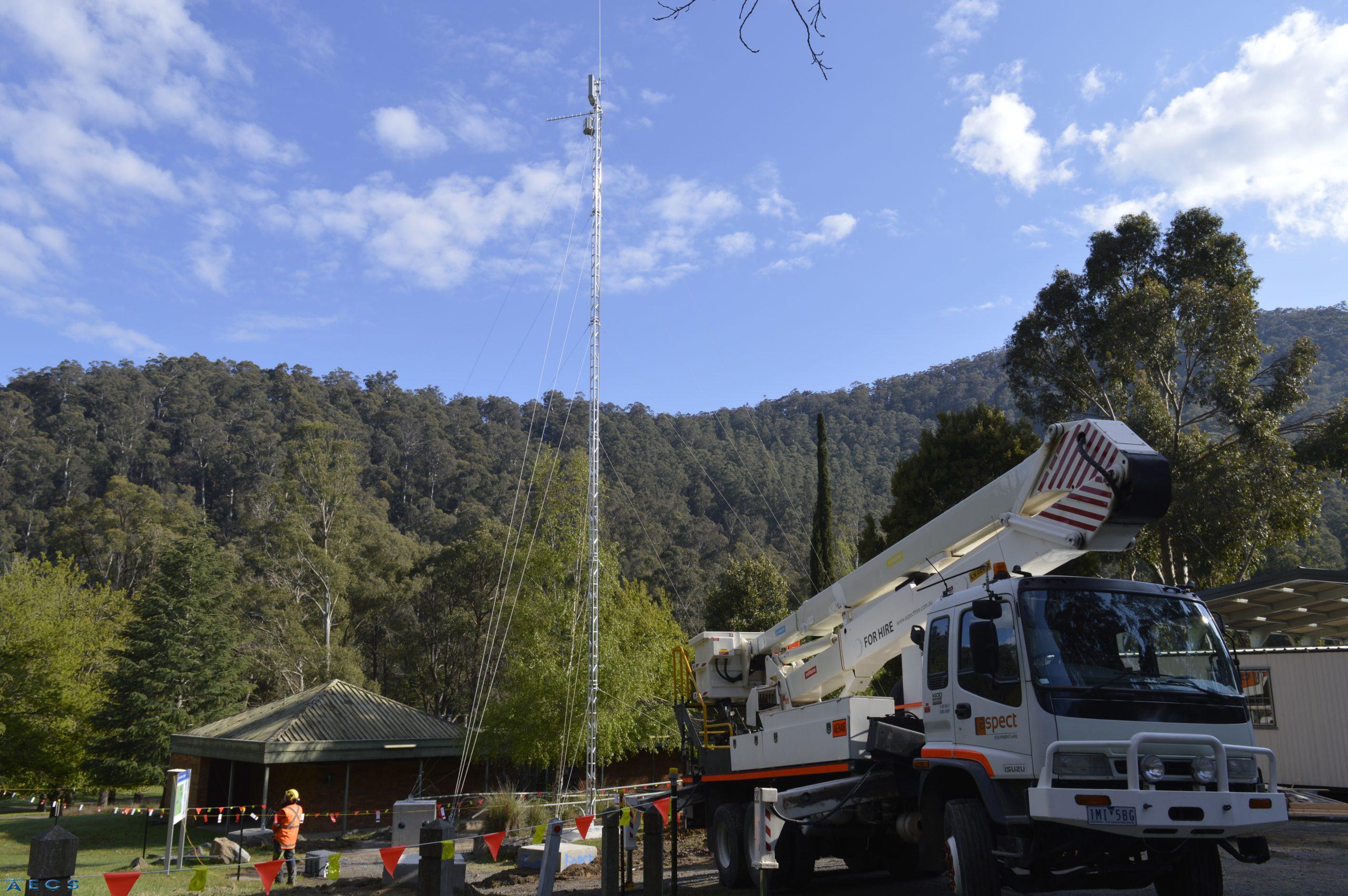

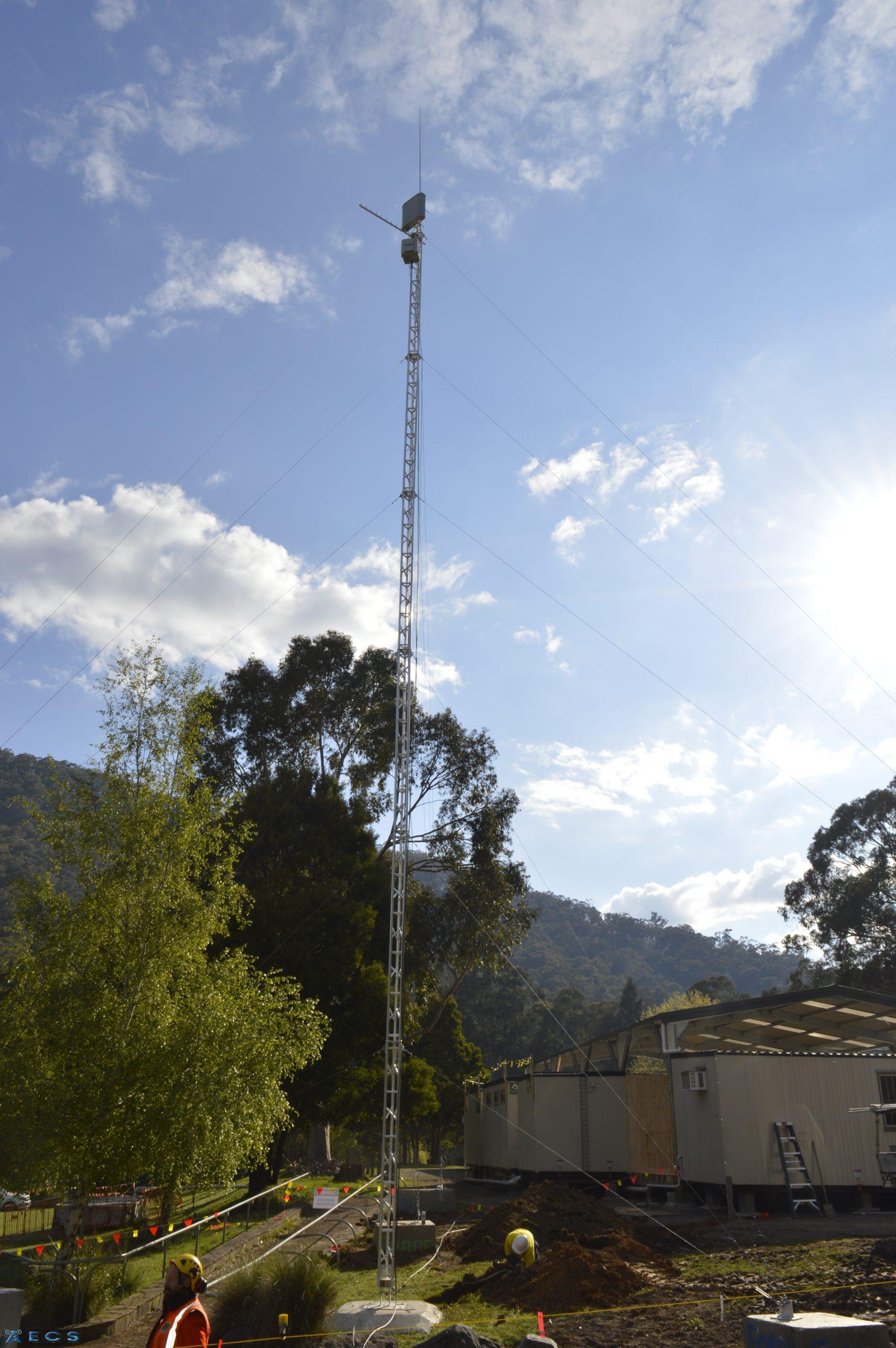

After many weeks hard work & the incredible engineering assistance of our supply partner Telco Antennas, Essential Communication Services, with the help of Aspect Equipment Hire Pty Ltd & their 24m travel tower, have delivered a temporary 18M communications & telecommunications tower in a very remote part of Victoria to provide continuous Telstra 4GX Mobile Broadband & Telstra 4GX VoLTE (Voice over LTE) & GPS Telemetry.

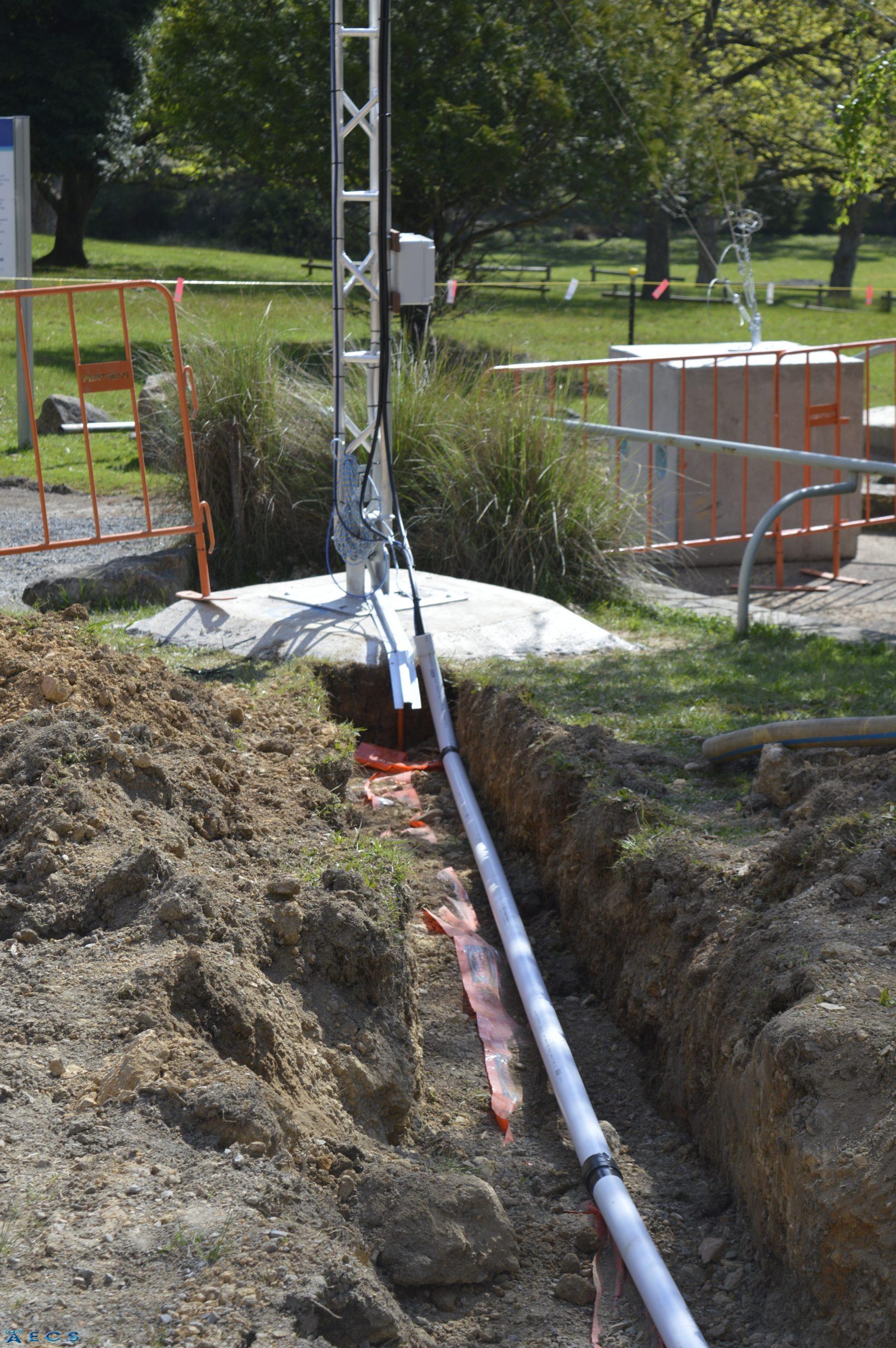

This 18m communications tower has been a long time in the planning given the very limited area for which we had to work with, thus the 3 ton concrete (Kelly) blocks buried in the ground. Essential Communication Services are very grateful to the extra assistance provided by our supply and engineering partner Telco Antennas to enable this to happen.

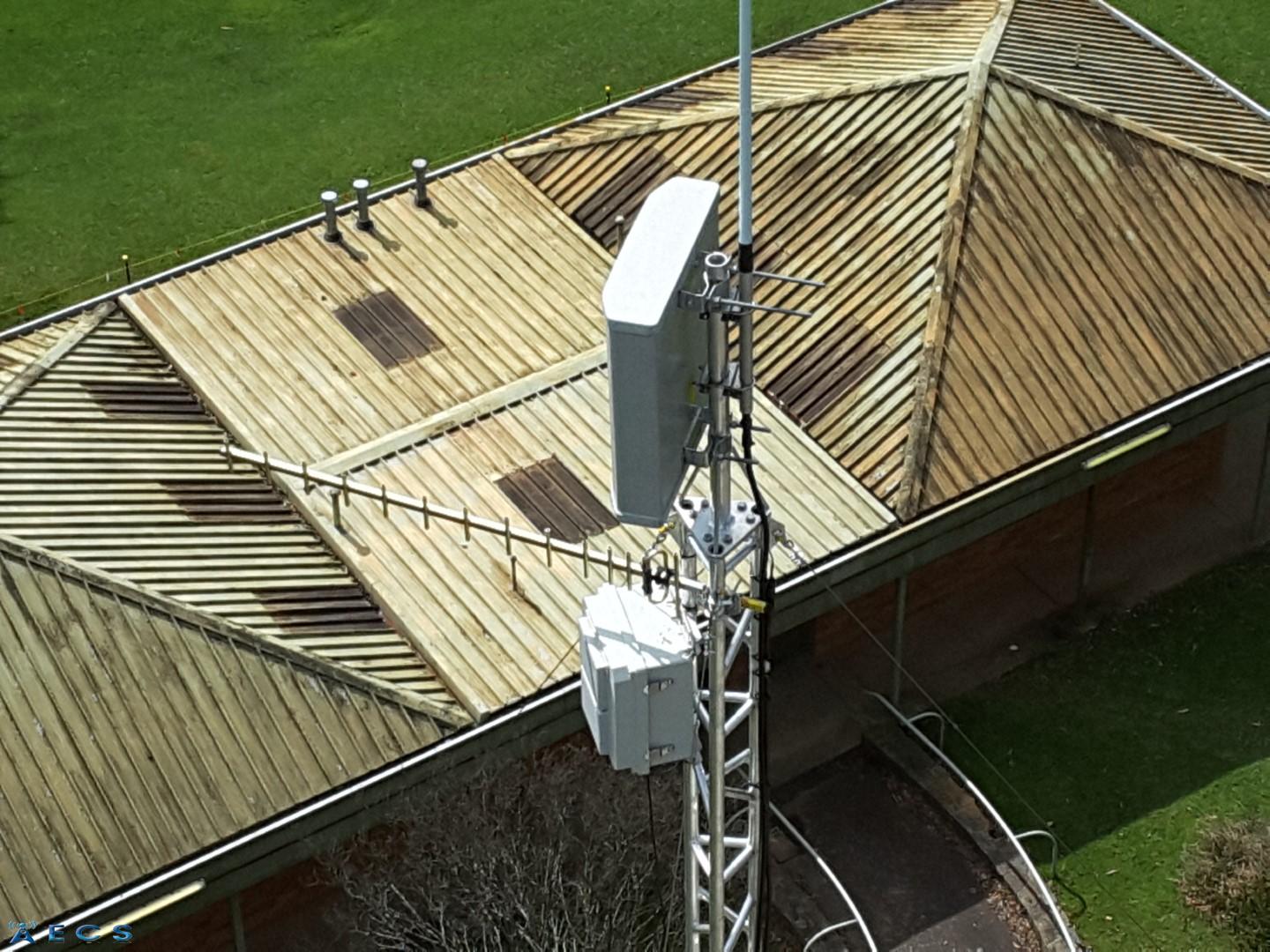

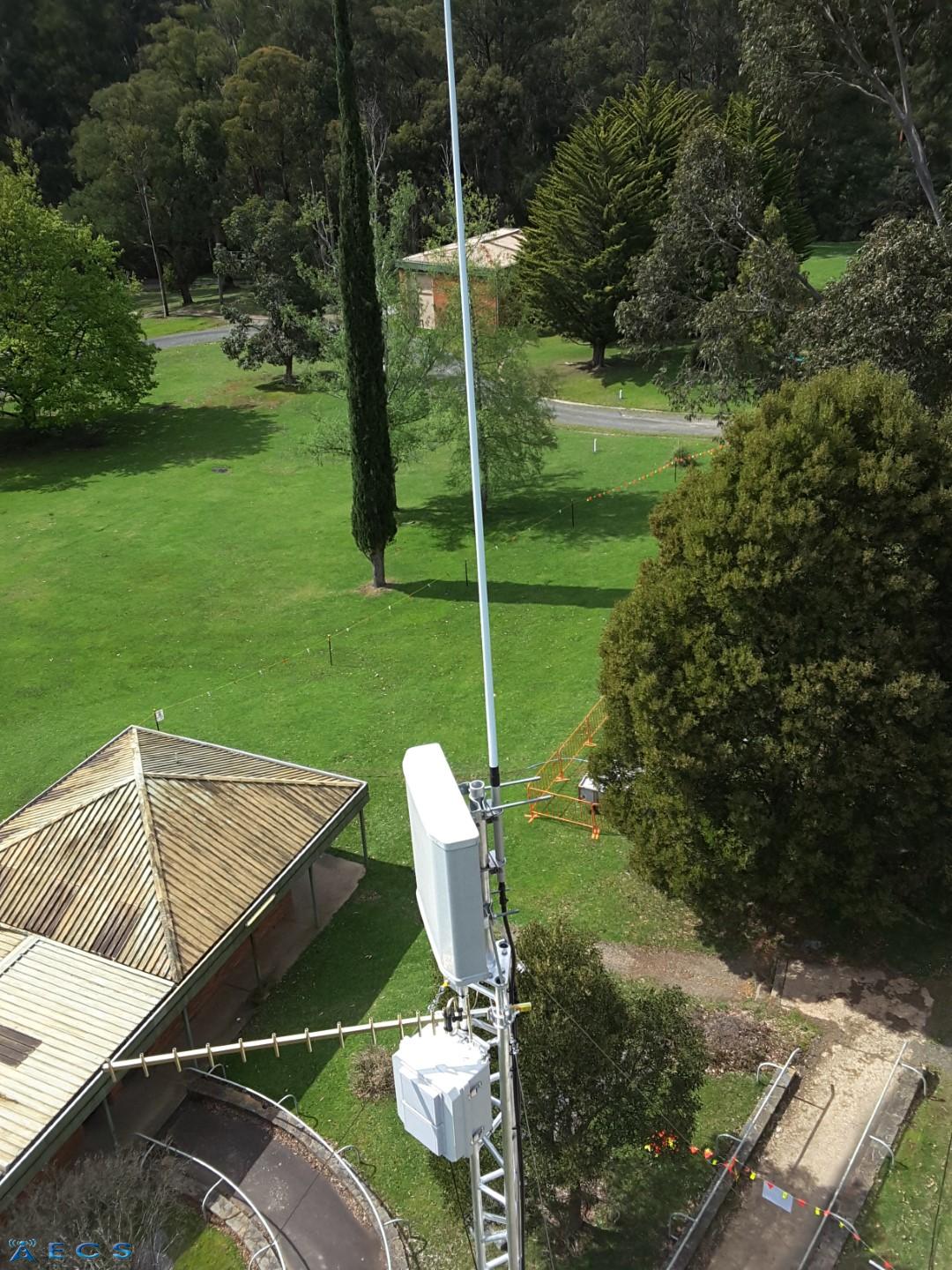

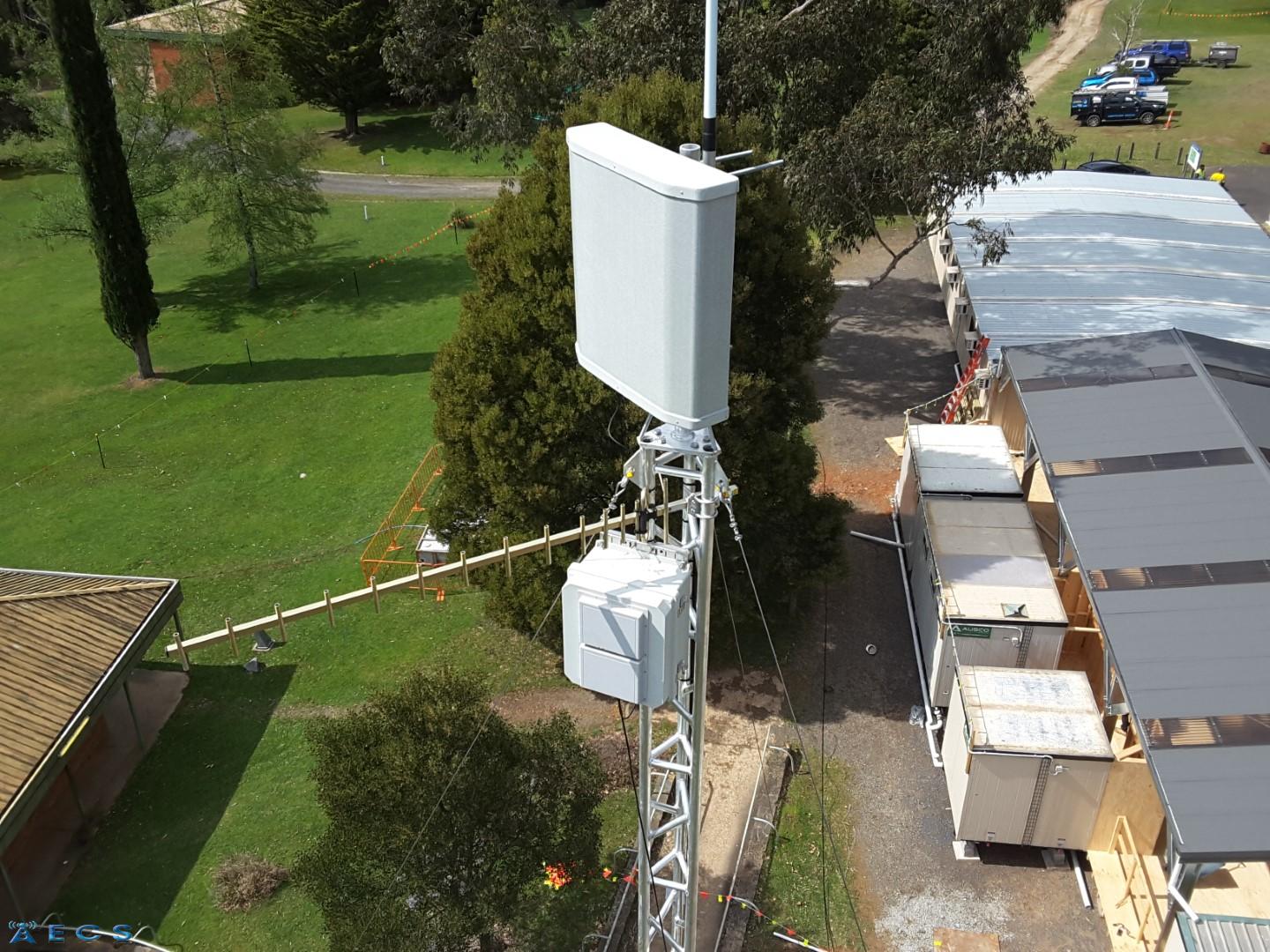

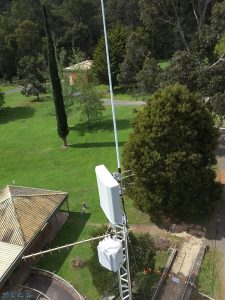

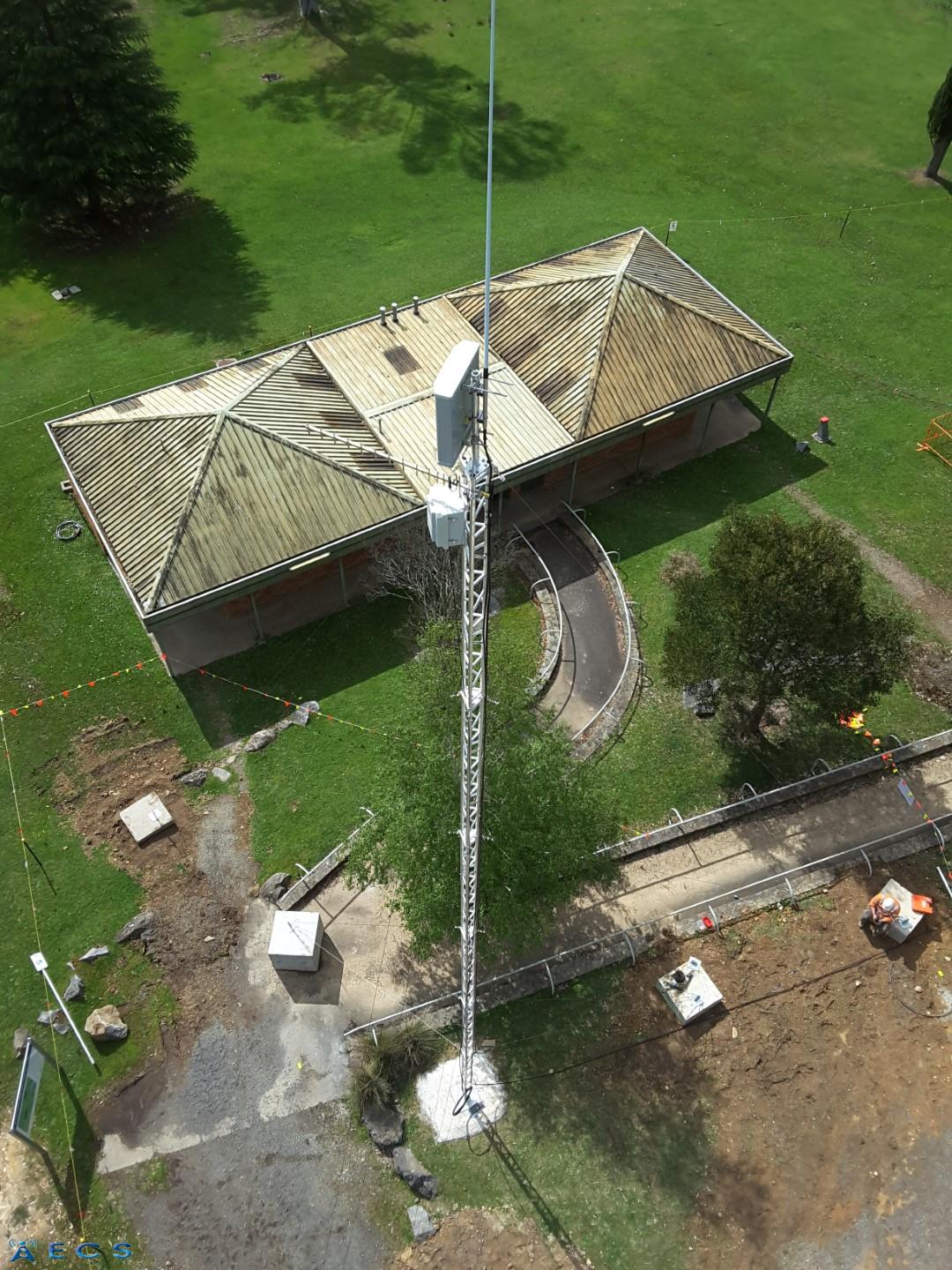

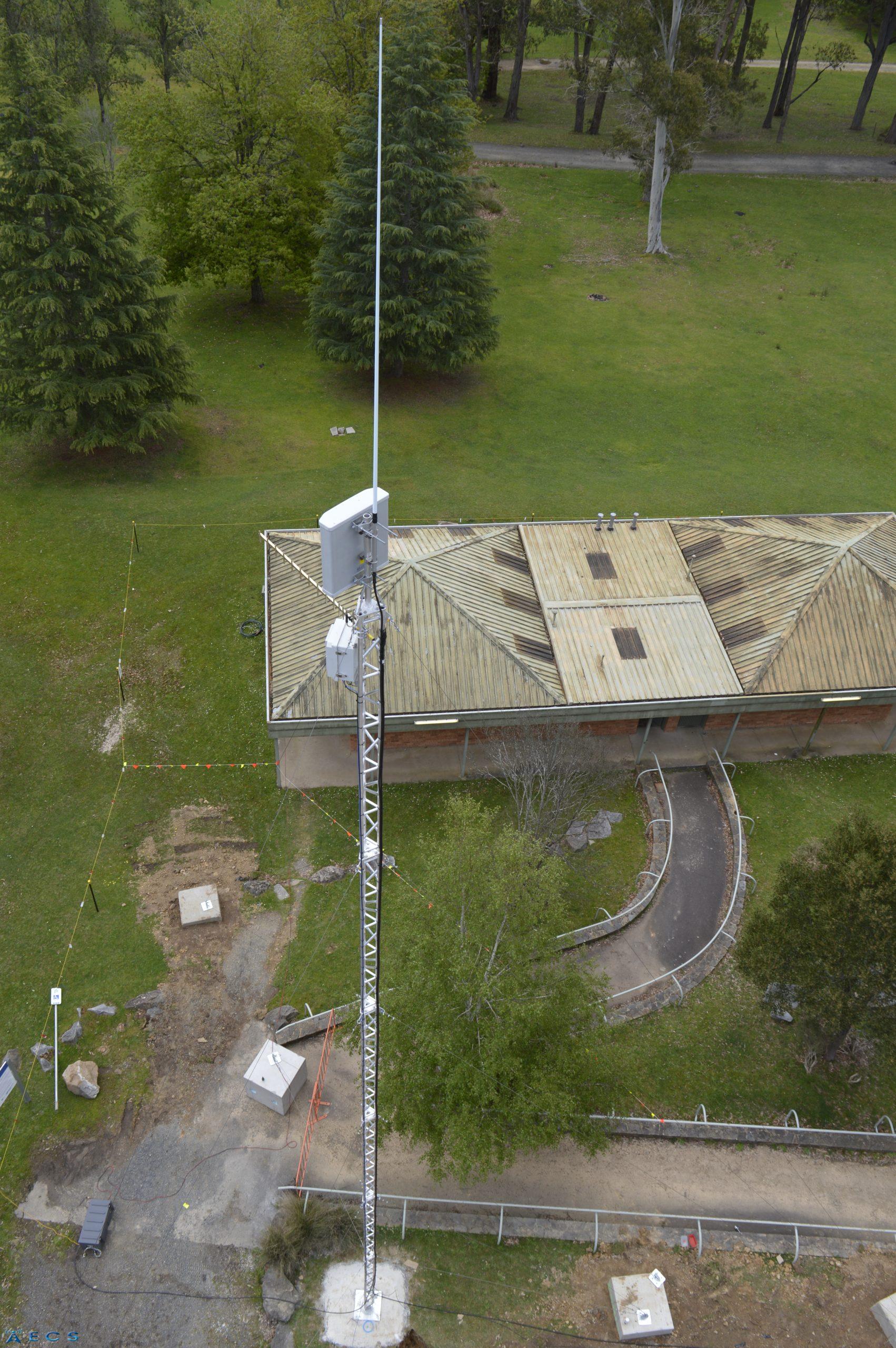

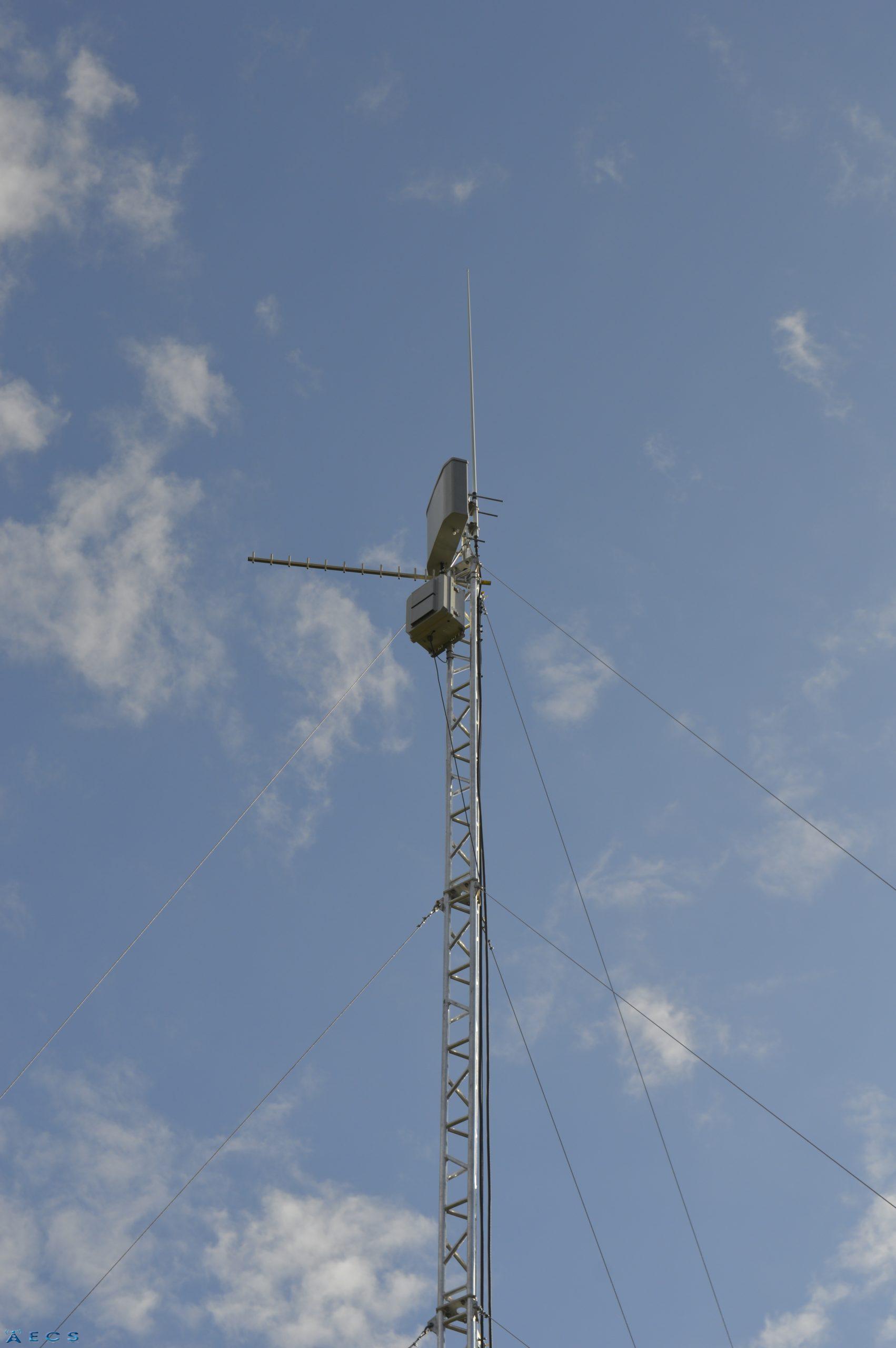

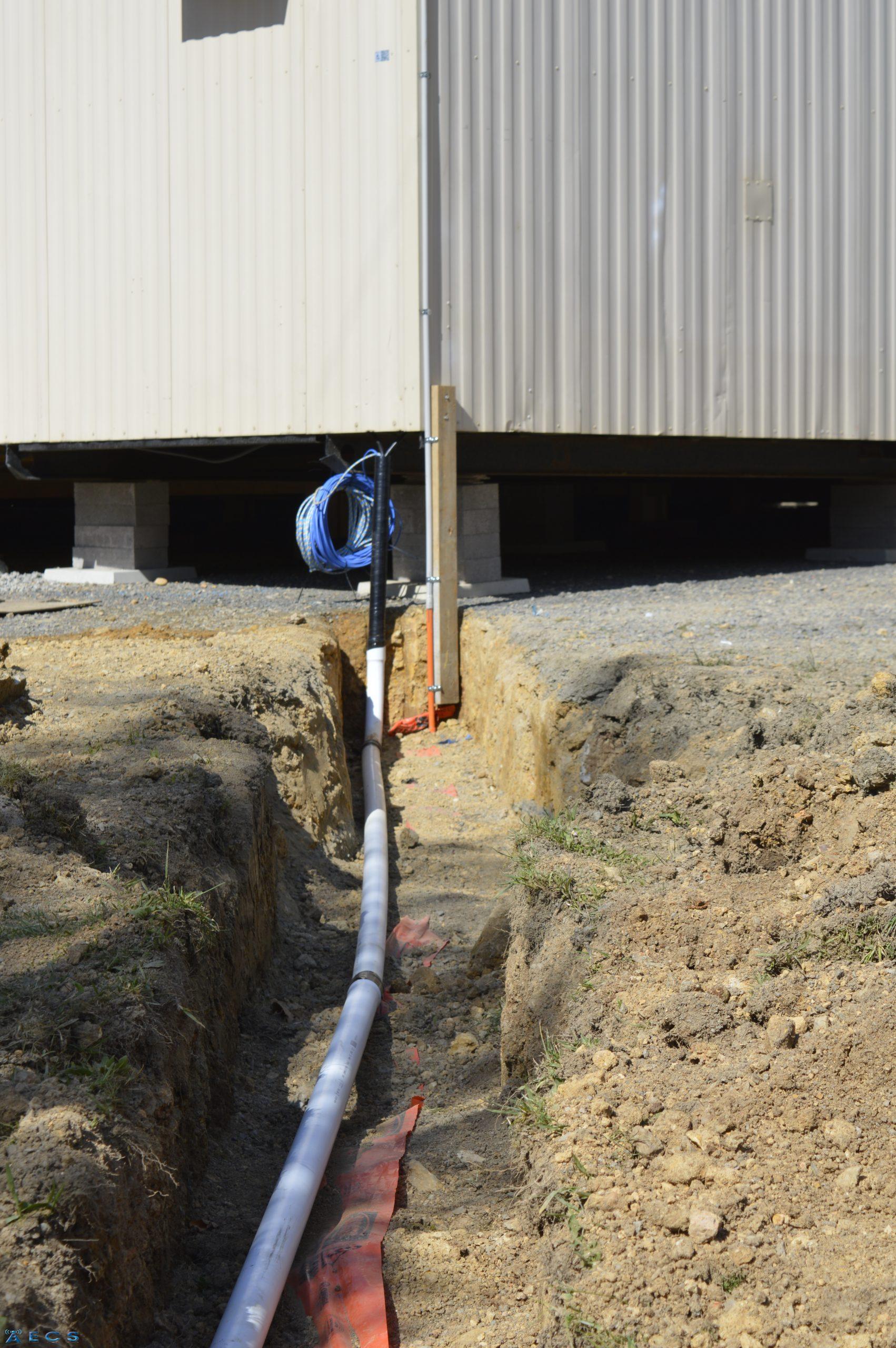

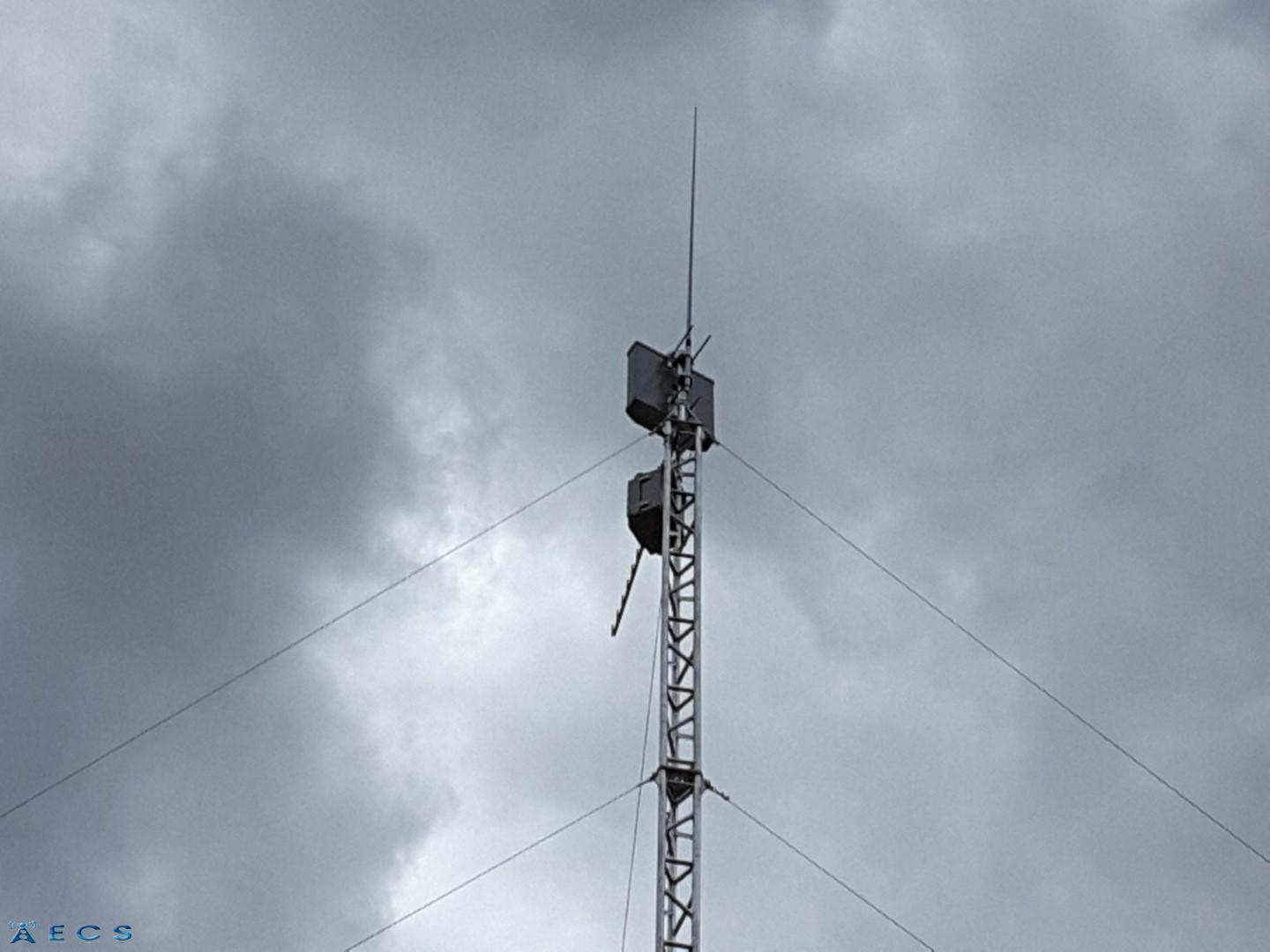

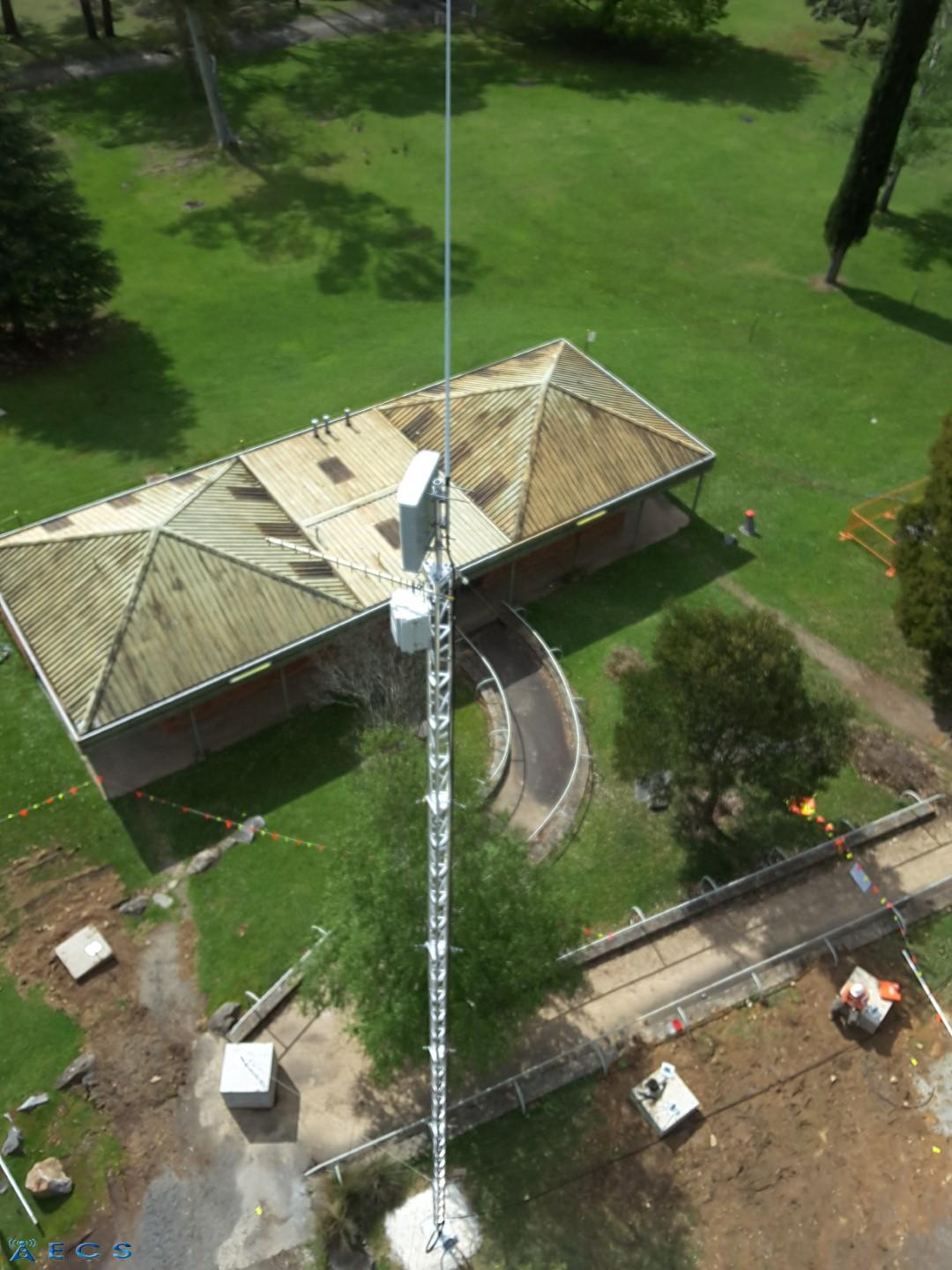

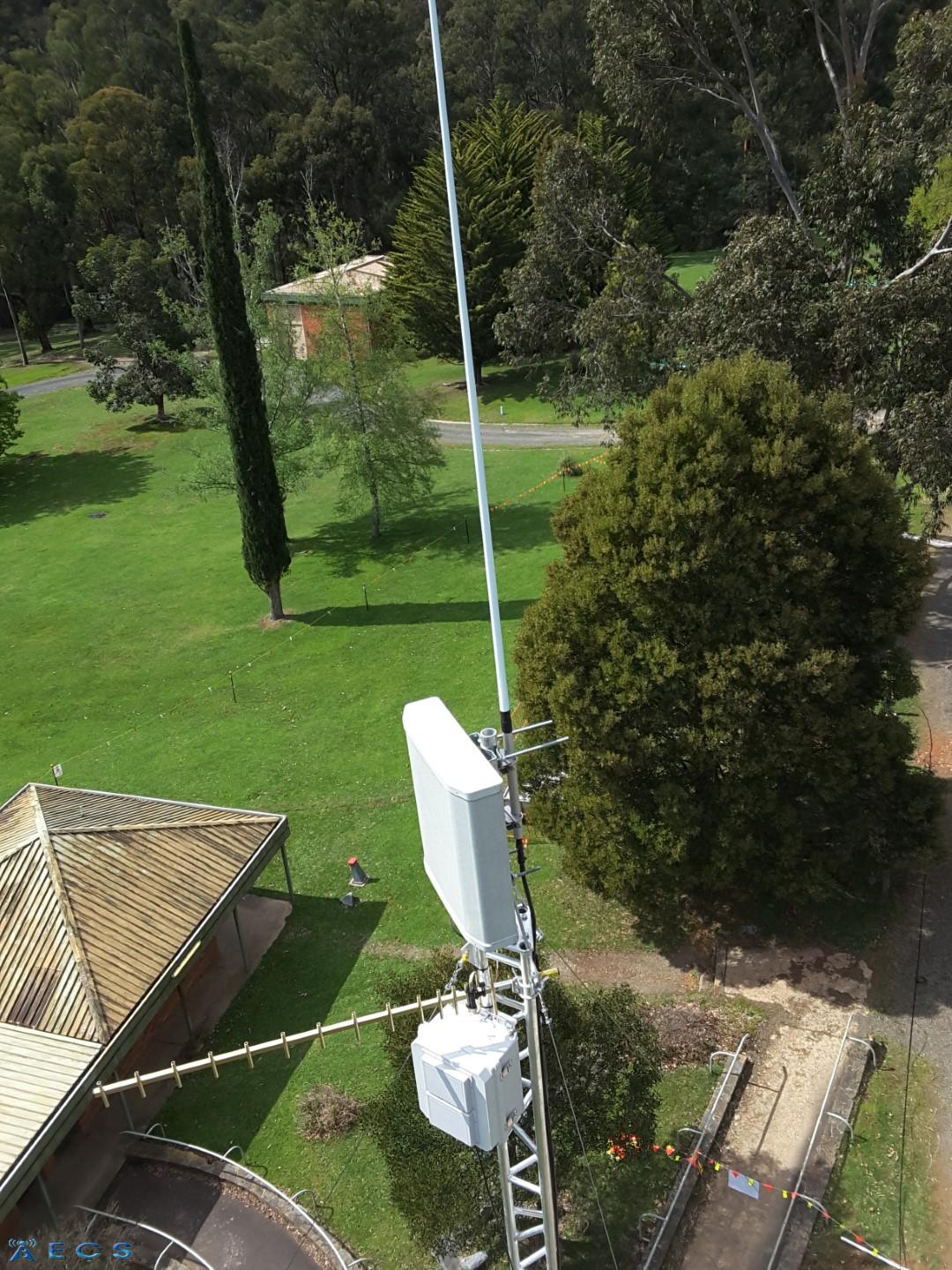

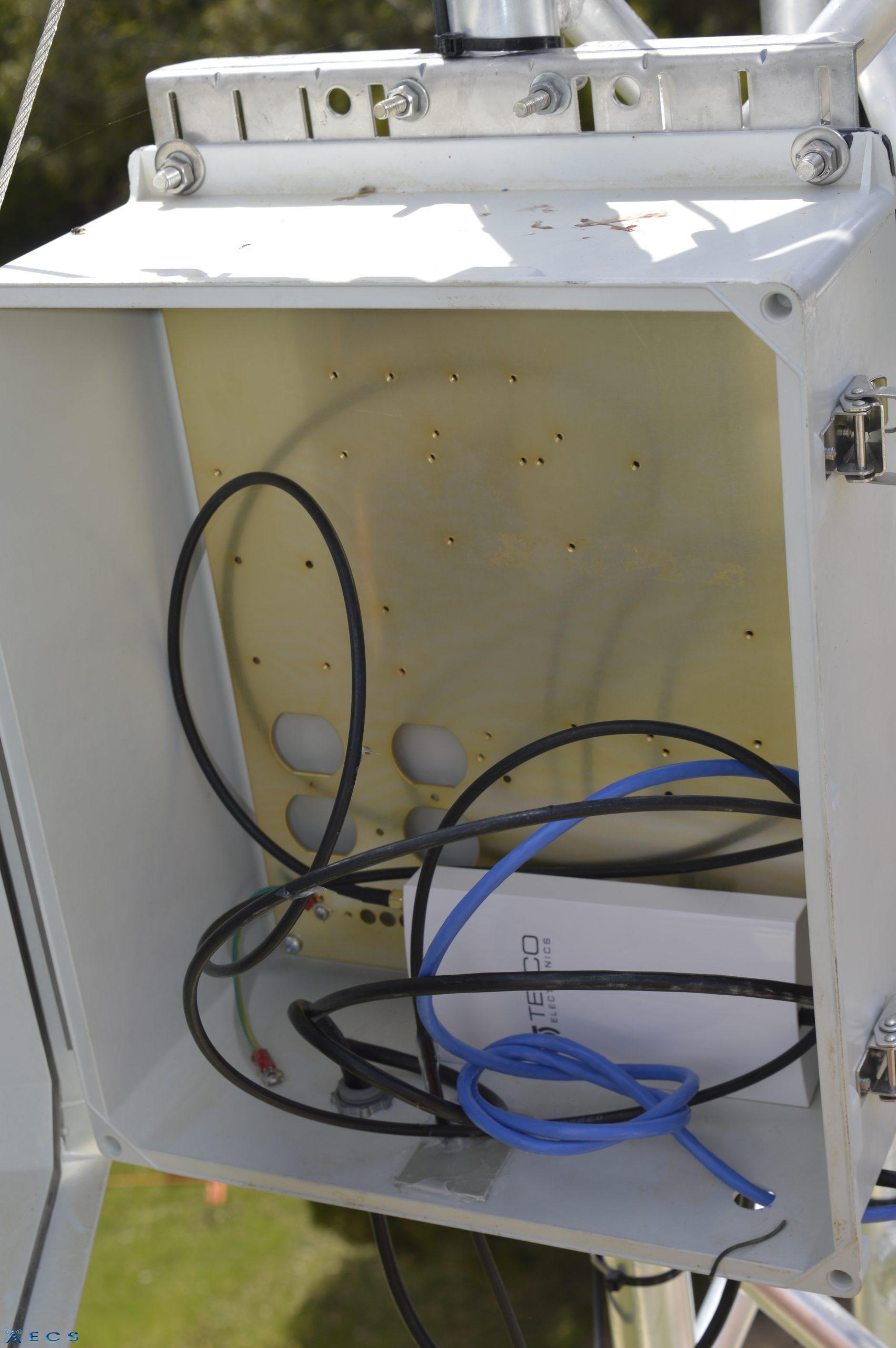

Infrastructure wise the tower has a Telco Antennas XPOL MIMO 3G+4GX High Gain Panel Antenna – 700-900 MHz connected to a Telco Antennas T1 3G/4G/4GX/4G+ LTE Advanced Modem Router with WiFi via a LCU195 1.5m Coaxial Cable – N Male to SMA Male, housed in a Weatherproof Enclosure with Vent & Mount Plate – 450x400x200mm, connected to a Sophos RED 15 via 55M’s of Cat6 Outdoor UV F/UTP Ethernet Cable – ESD Shielded RJ45.

The mast also has a RFI Next-G+4GX 15dBi Yagi Antenna – 700-850MHz for the Telstra 4GX VoLTE voice service, cabled back to a to a Cel-Fi GO Smart Signal Booster for Telstra 3G or 4GX via 55M of LDF4-50A HELIAX 1/2″ – Male to N Male, connected to a RFI DAS Omni directional PIM Rated Ceiling Antenna – 700-2700MHz to supply the Telstra 4GX VoLTE (Voice over LTE) service.

All the Communications & Telecommunications as well as all the tower hardware for the project except the Sophos RED 15 & the GPS telemetry transmitter has been supplied by our incredible Communications & Telecommunications infrastructure supply partner Telco Antennas.

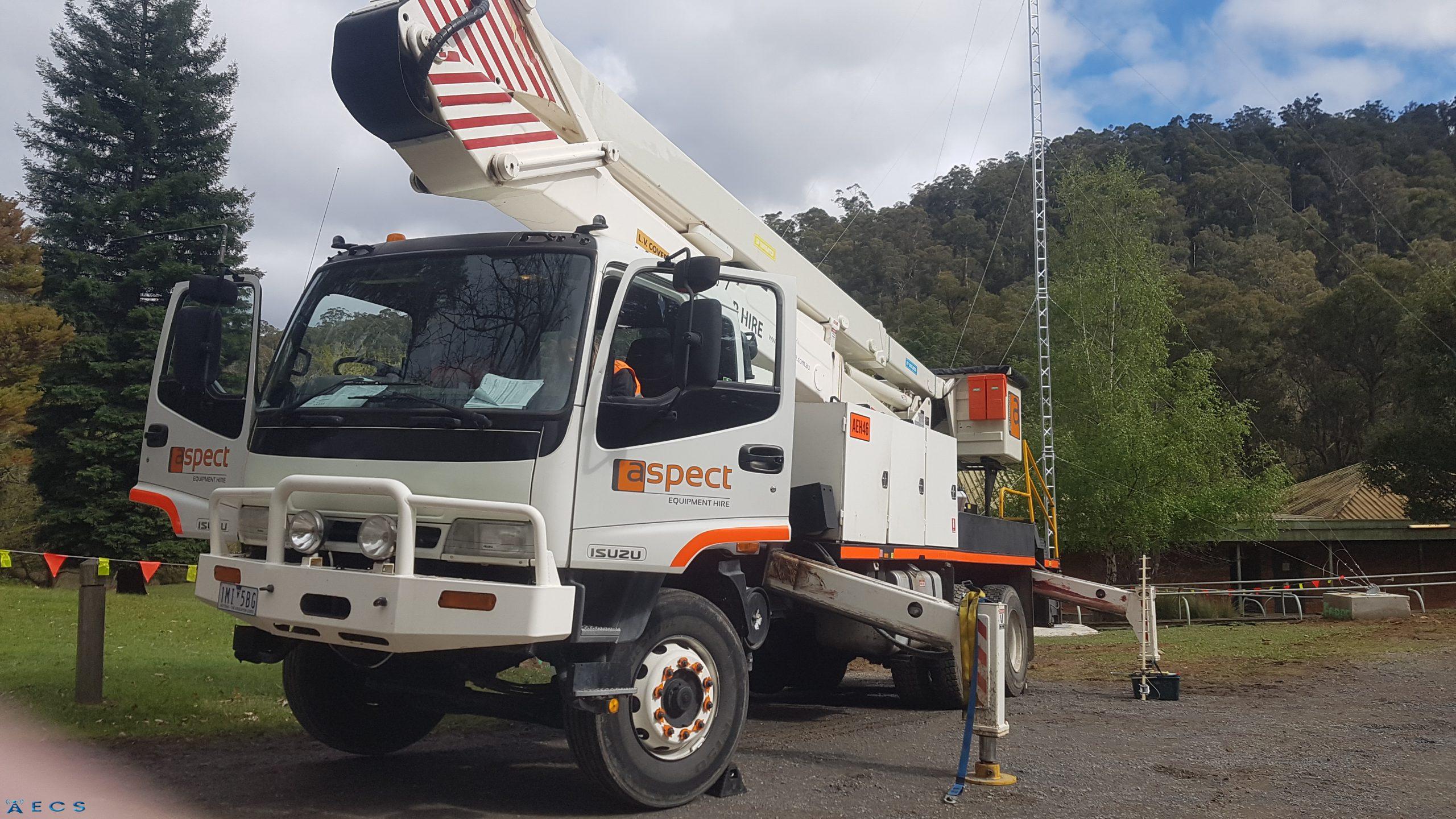

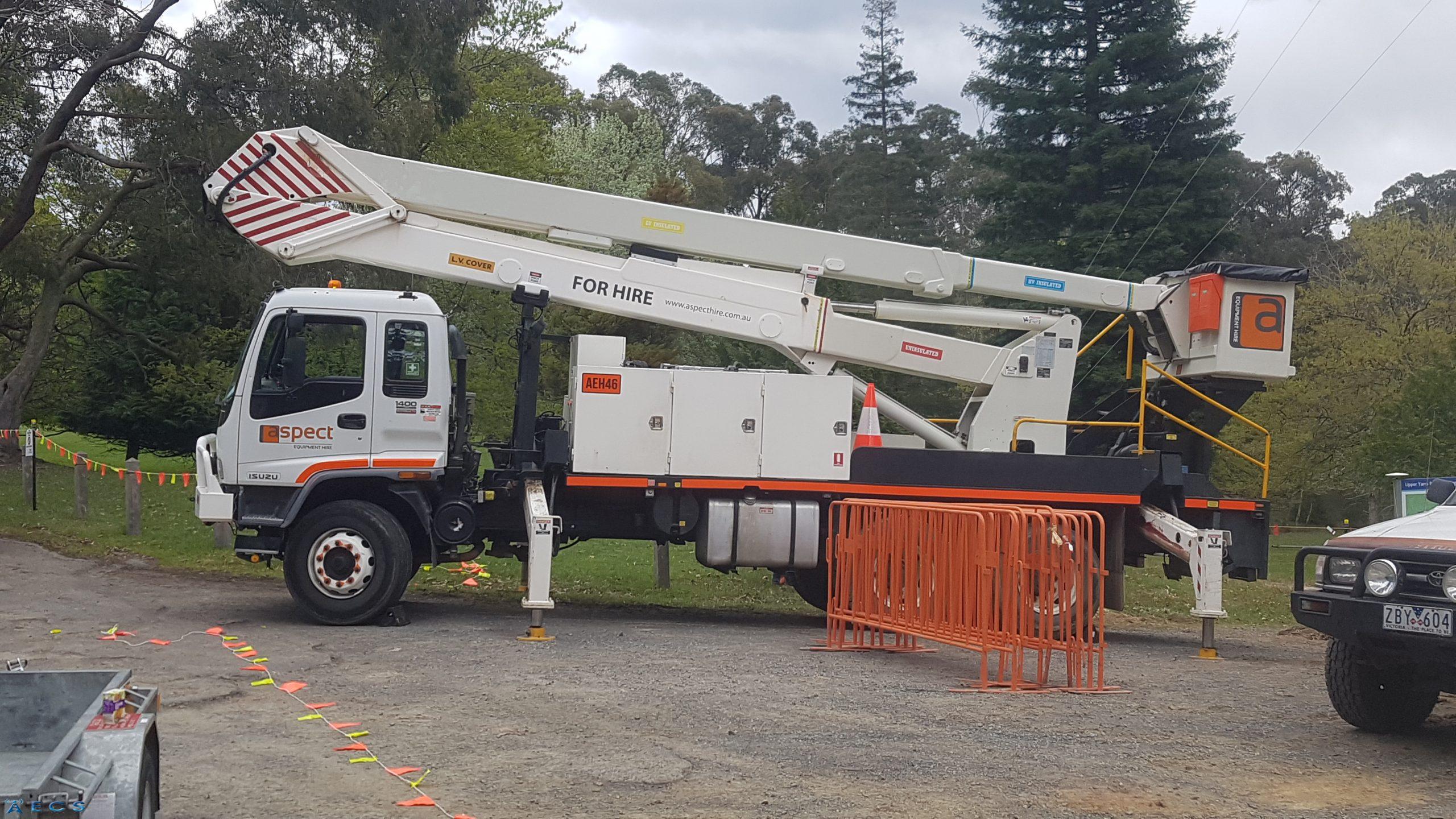

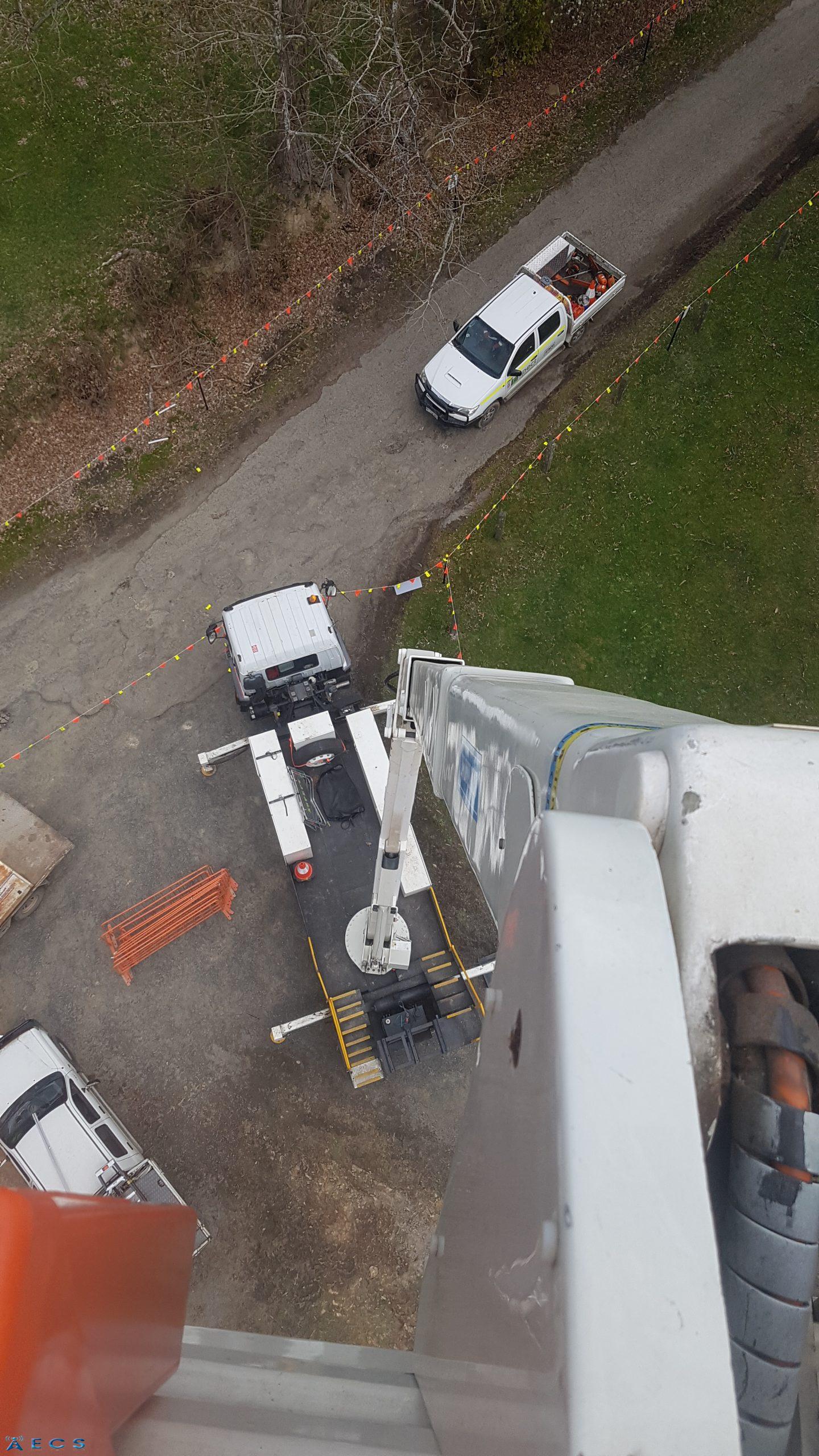

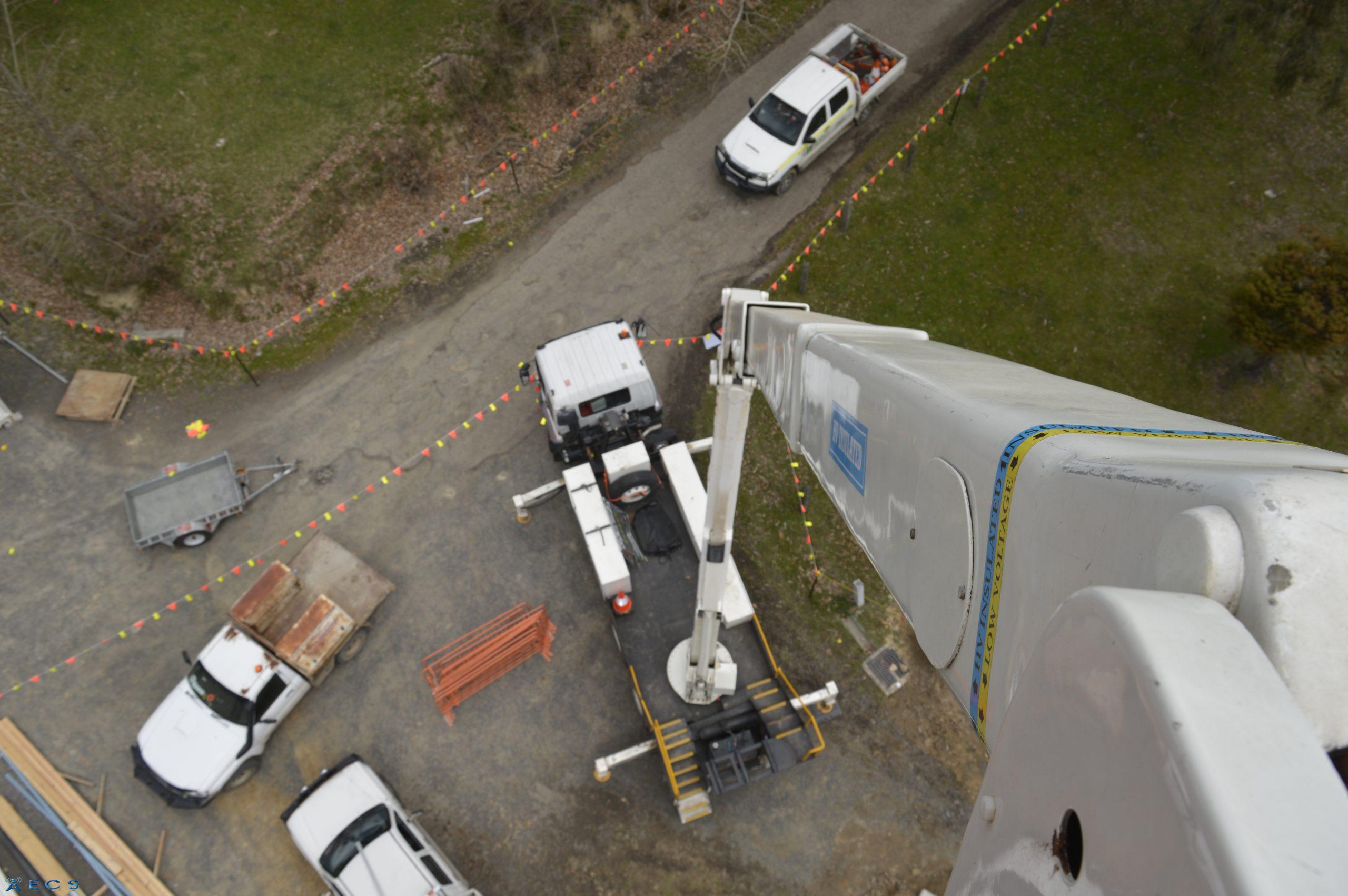

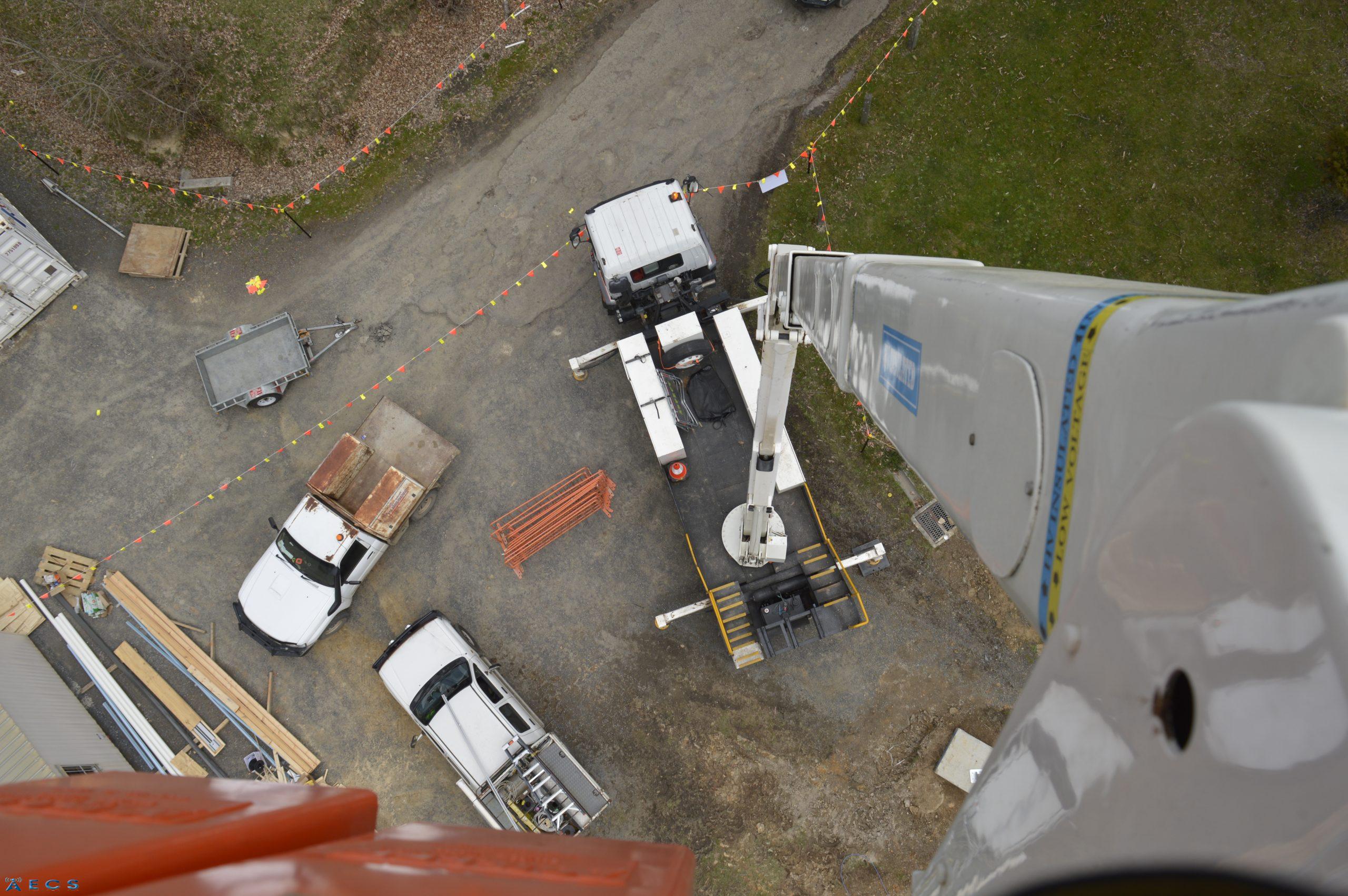

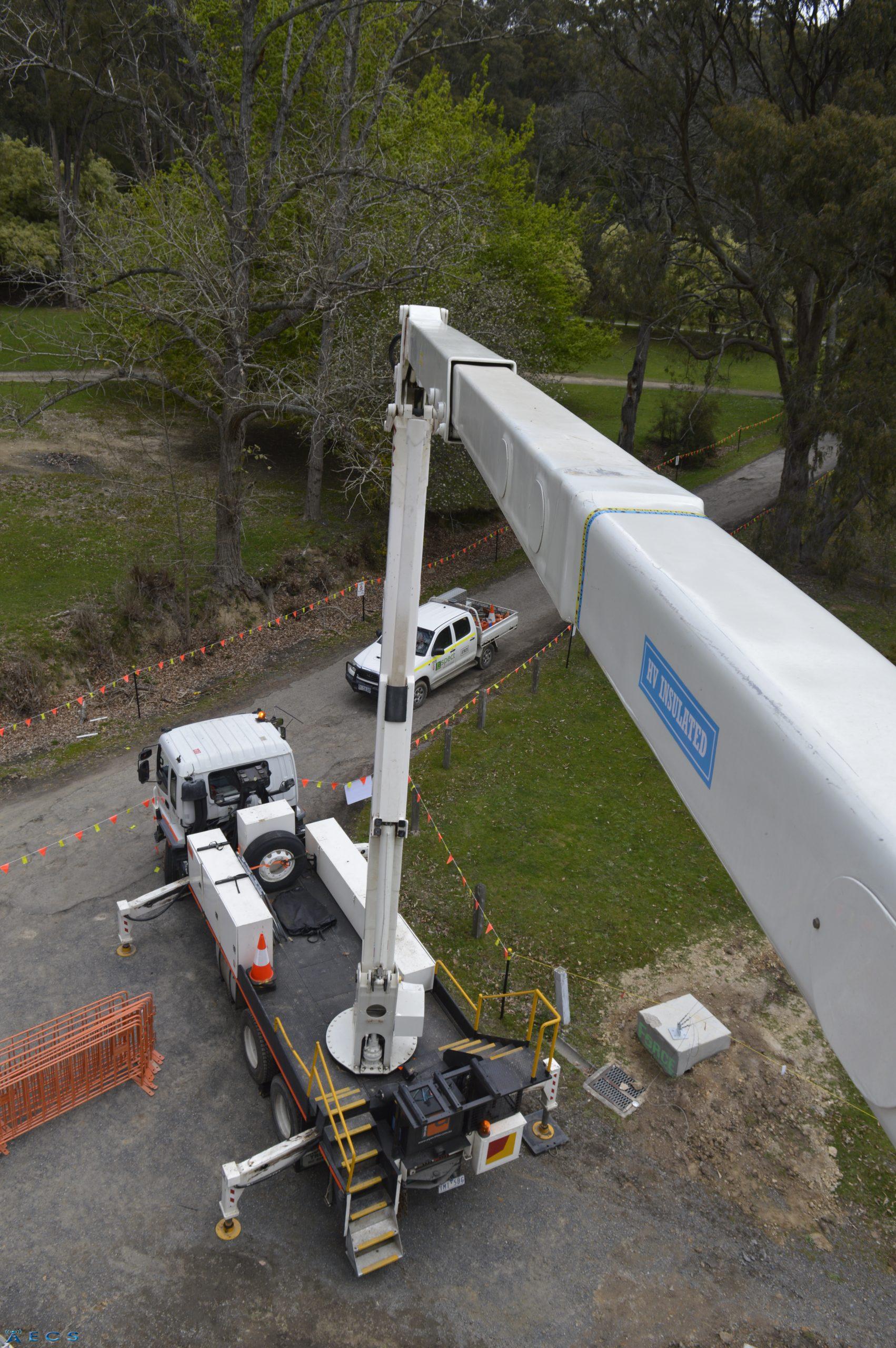

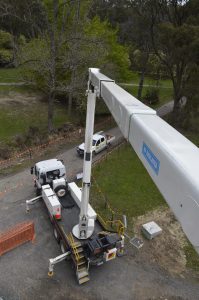

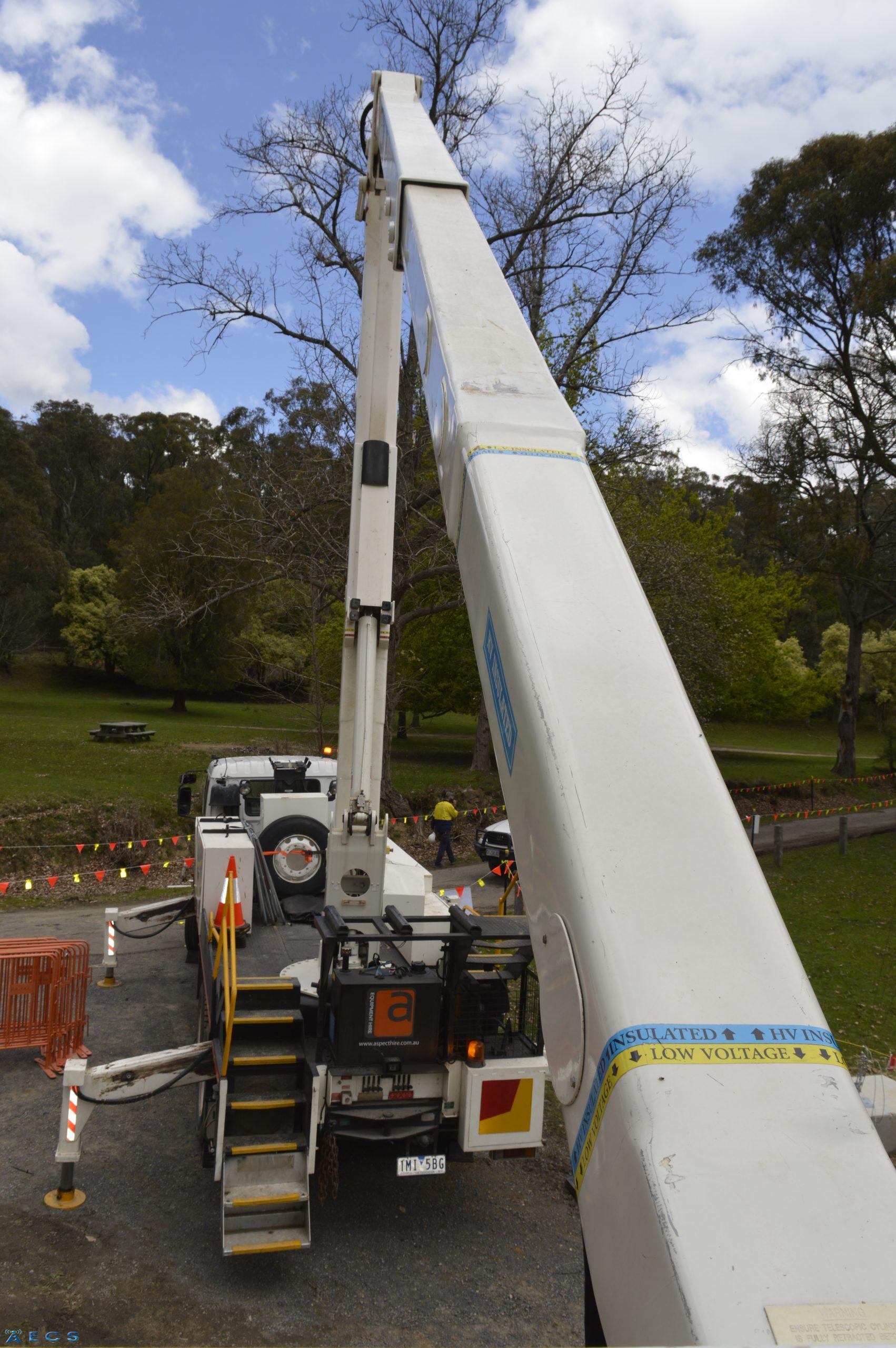

Essential Communication Services also sends out a special shout out to Rick our incredible, very diligent, very careful and very patient 24M travel tower operator from Aspect Equipment Hire Pty Ltd. Well done and thanks heaps Rick. It was an absolute pleasure to have you as our operator for the week, Essential Communication Services looks forward to working with Rick from Aspect Equipment Hire Pty Ltd again very soon on other large Communications & Telecommunications projects that we have coming up.

If you have a communications & telecommunications infrastructure challenge please do not hesitate to get in touch with Essential Communications Services, it would be our pleasure to be of assistance to you anywhere in Australia.
