Riverina NSW 3G/4G Mobile Voice and Broadband

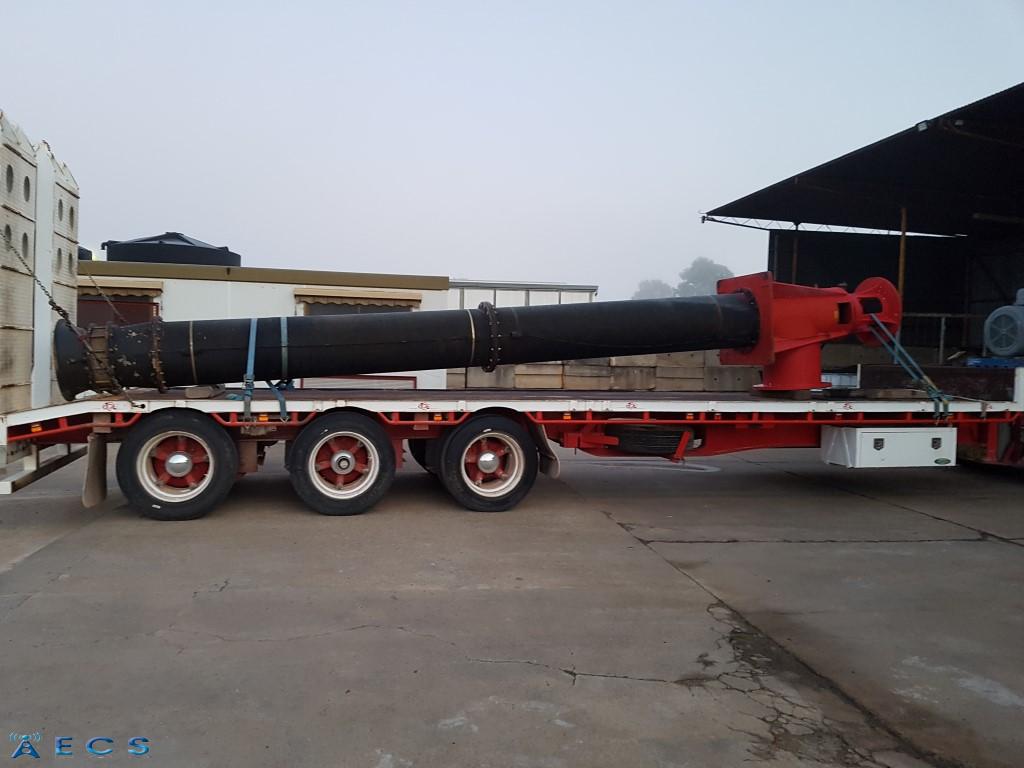

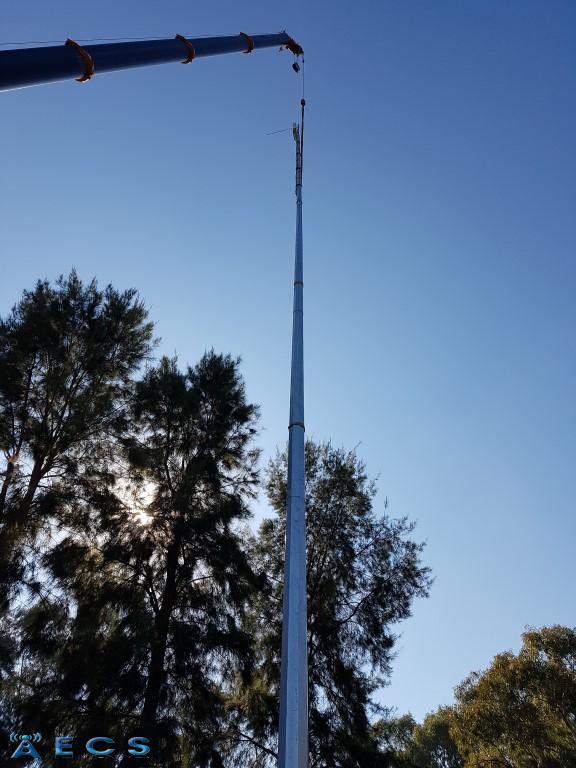

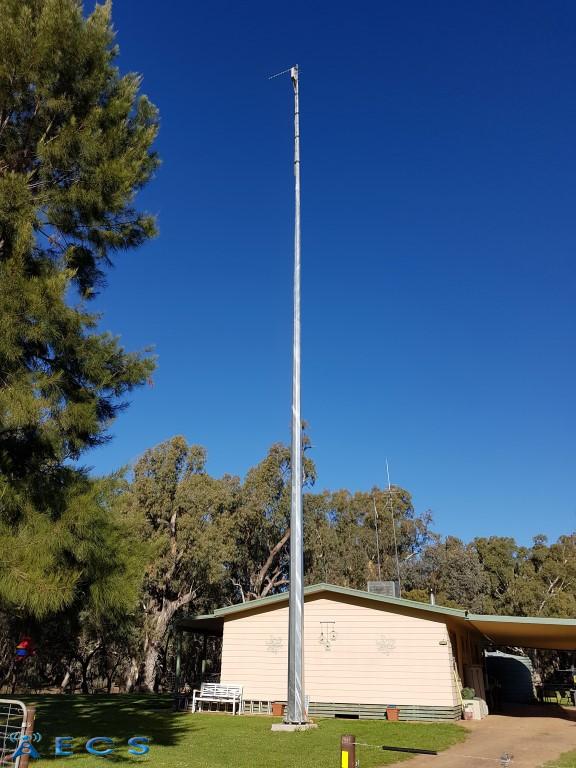

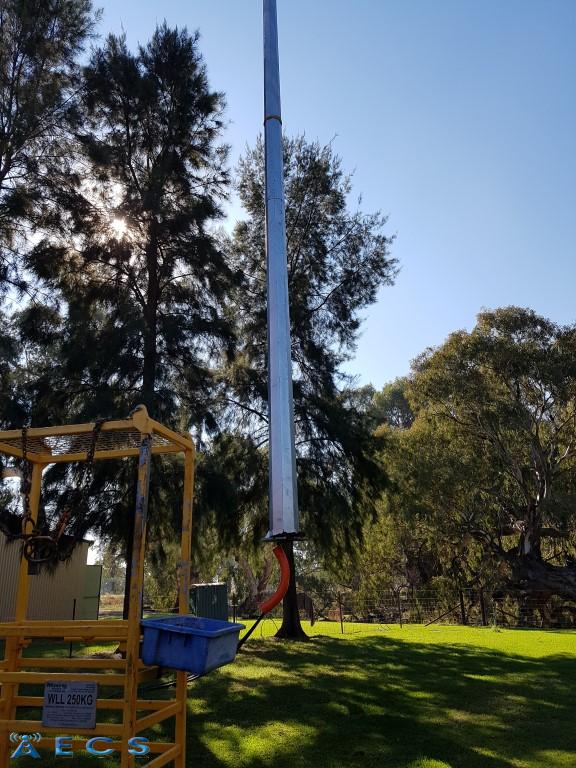

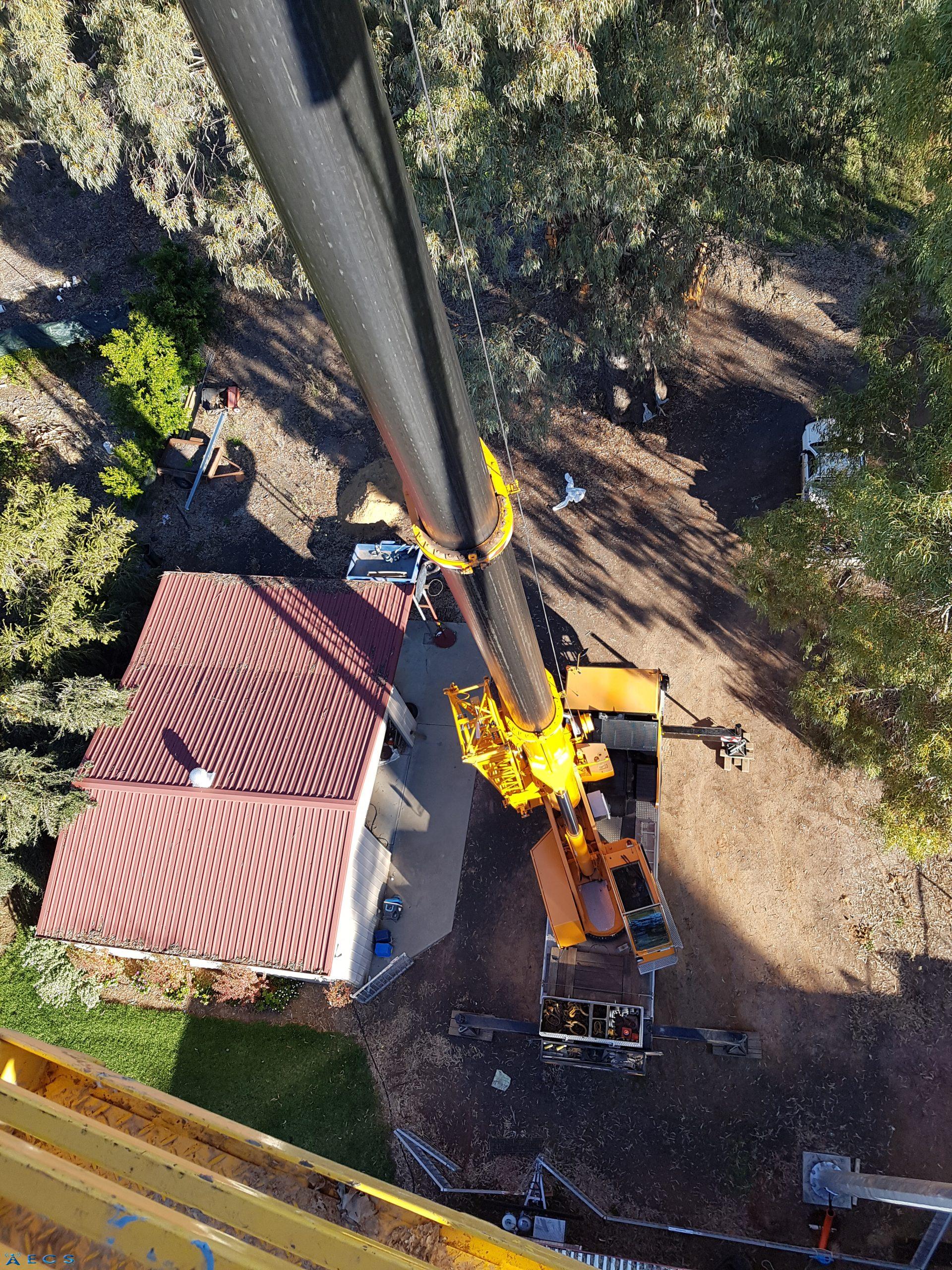

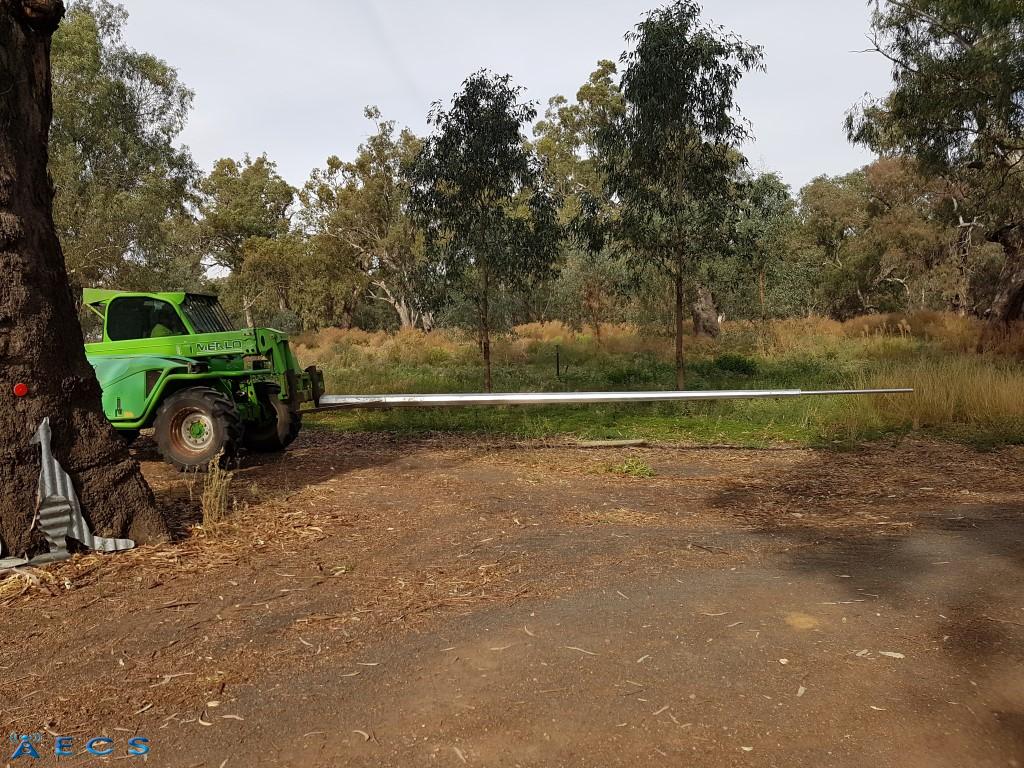

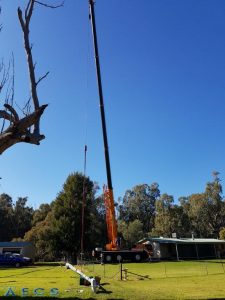

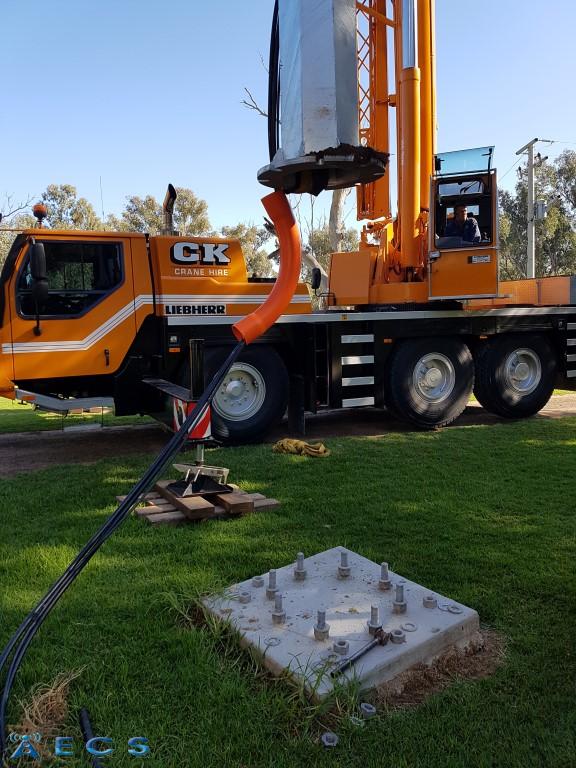

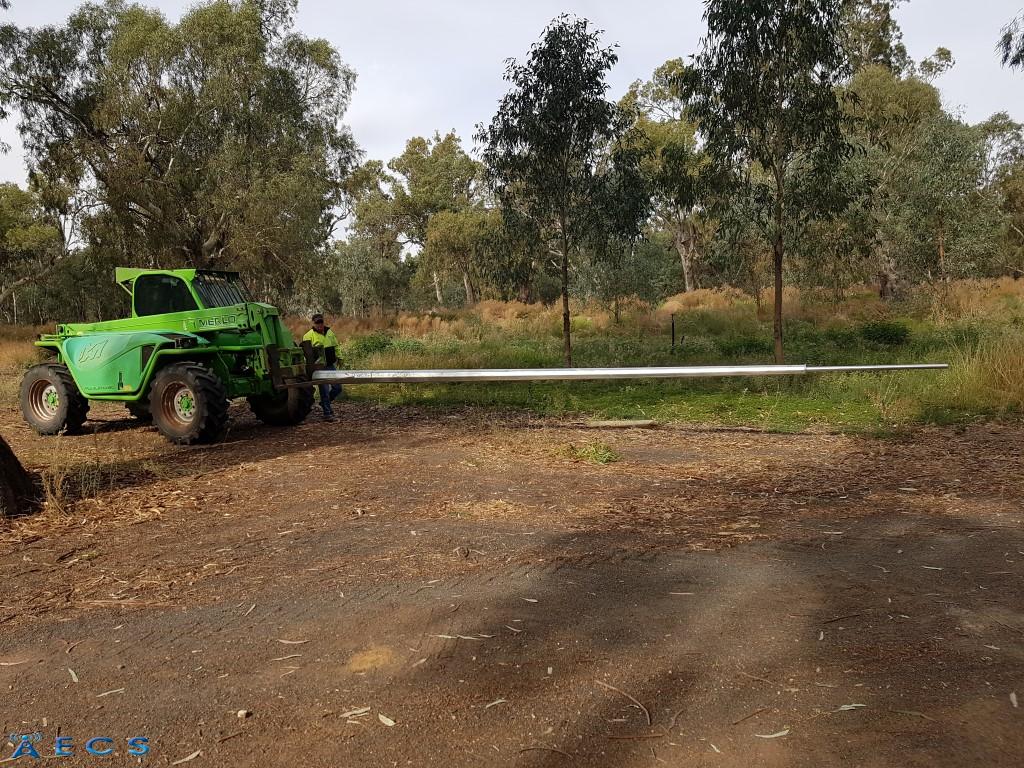

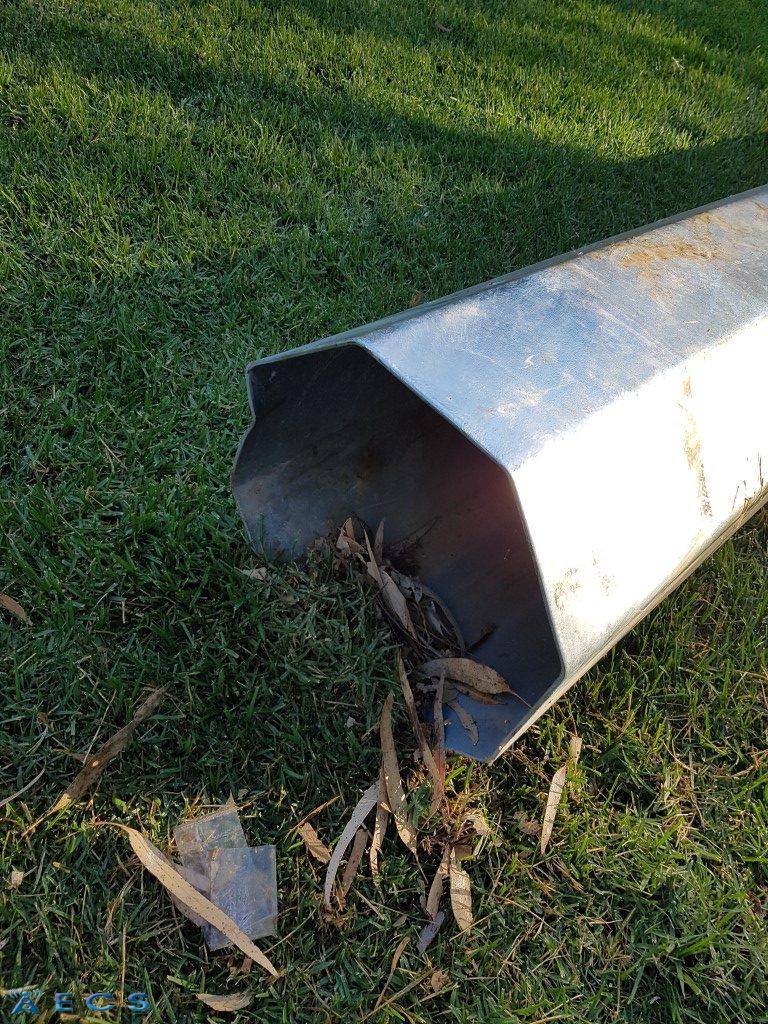

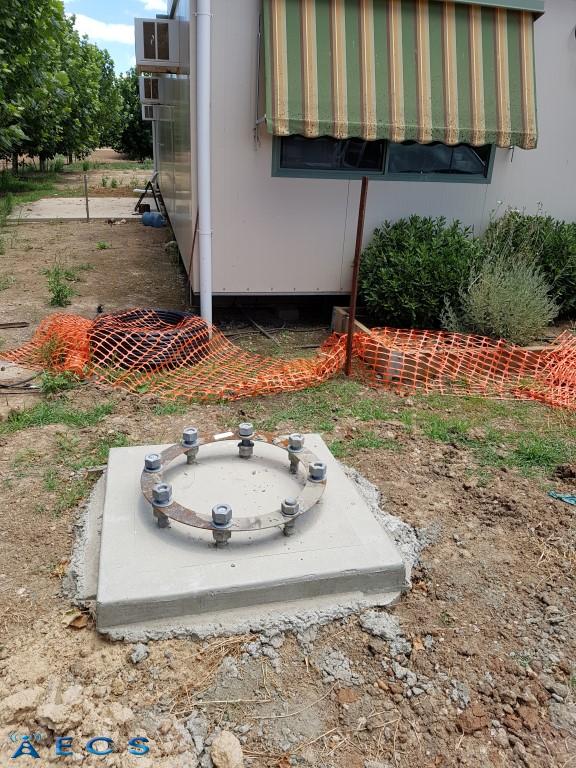

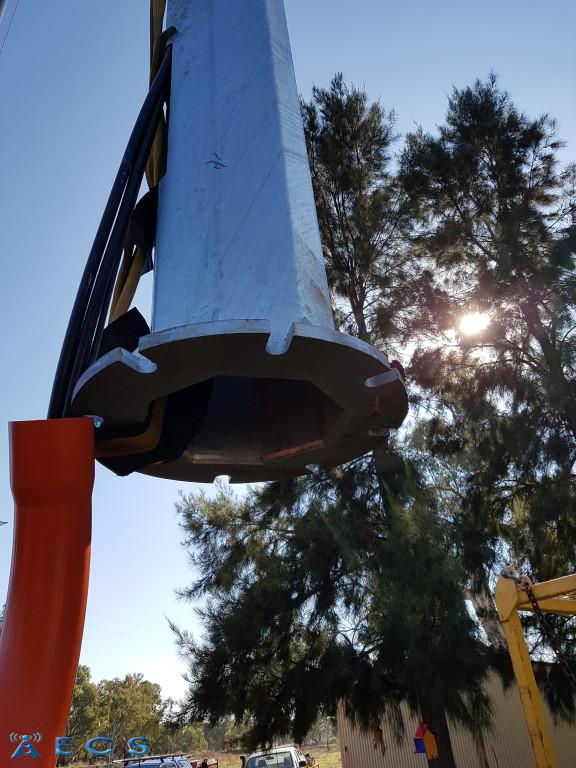

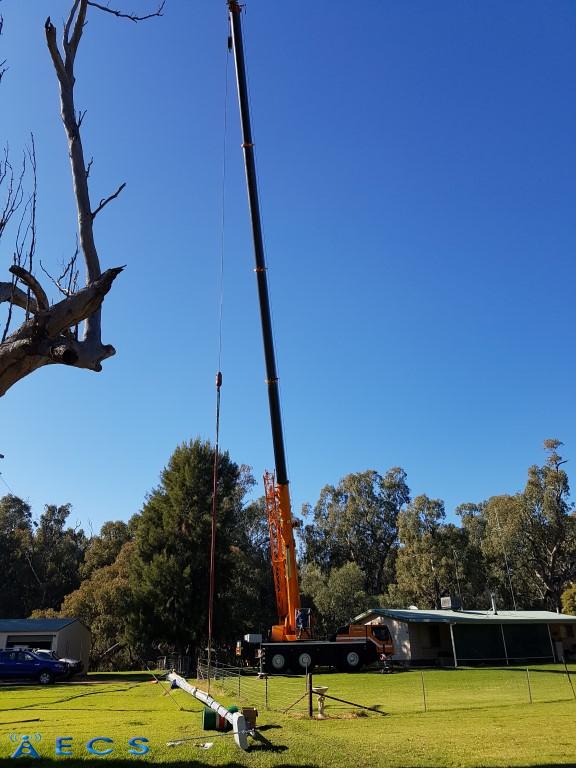

Essential Communications Services were commissioned by a large Agricultural Farming Co-op to install seven 50m tall steel communications towers on their extensive property in the Riverina region of NSW.

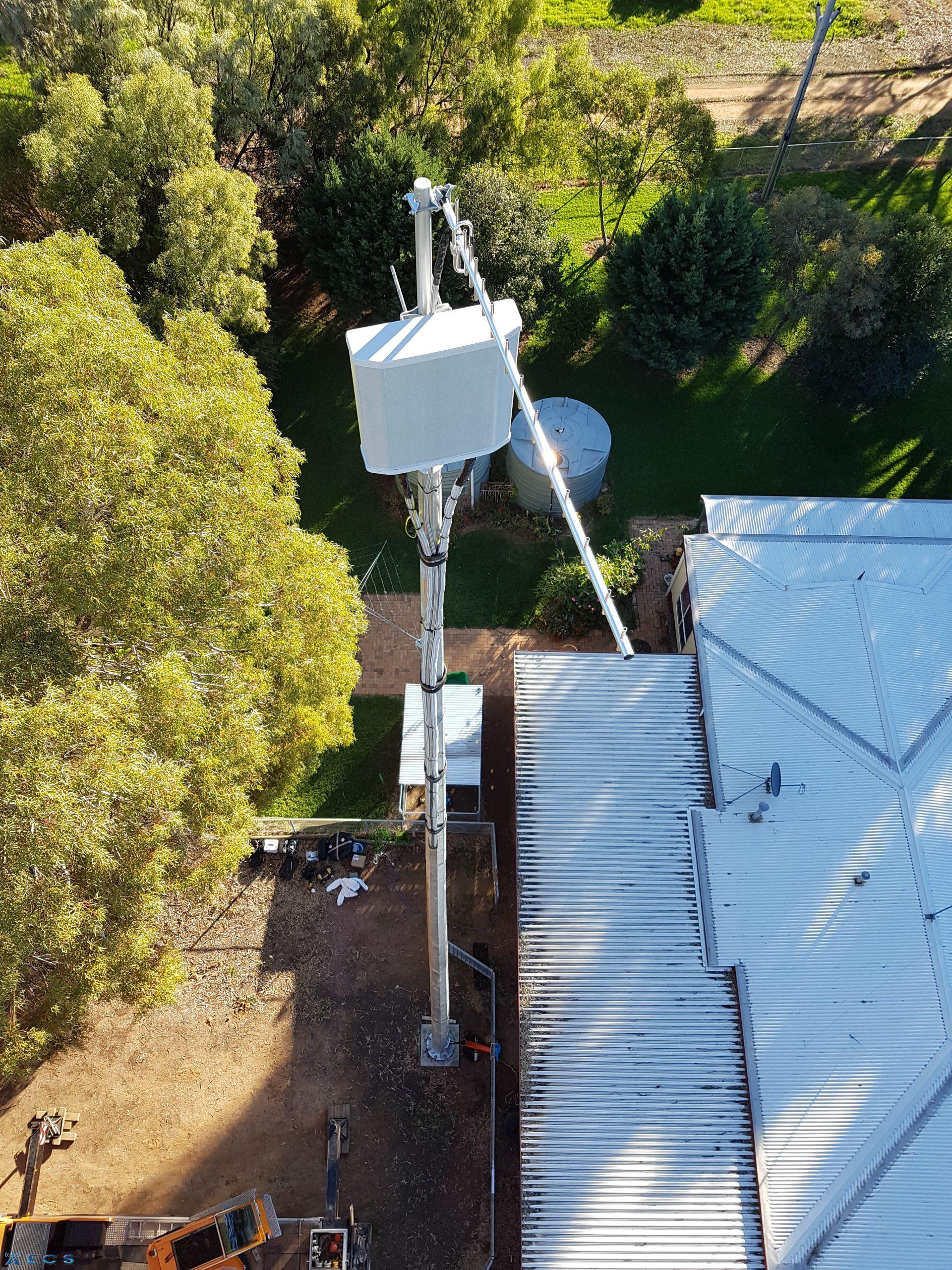

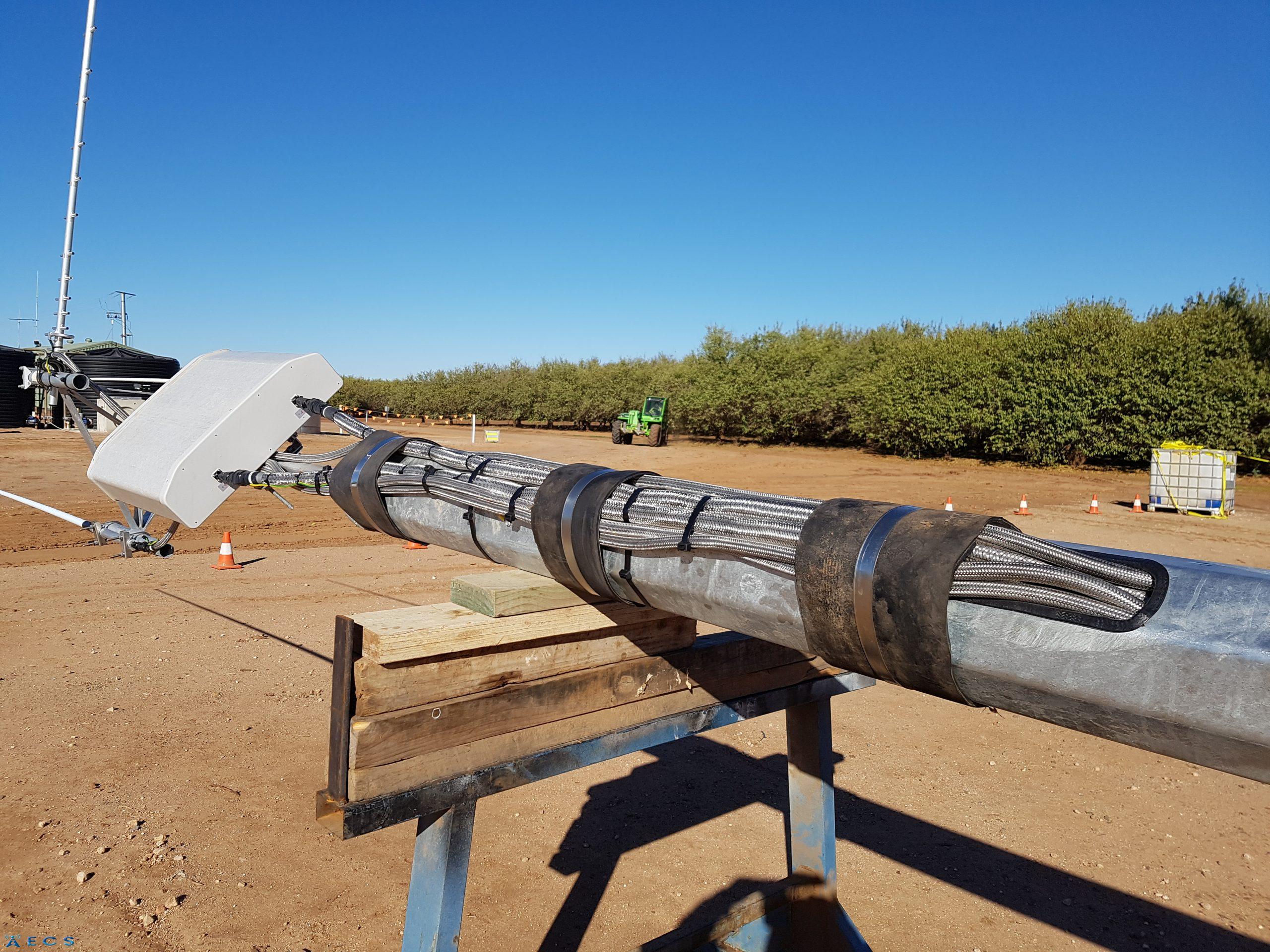

The towers were provided direct to the farm for installation by us with the infrastructure installed on three way mast heads supplied by Telco Antennas.

All seven masts had the following:

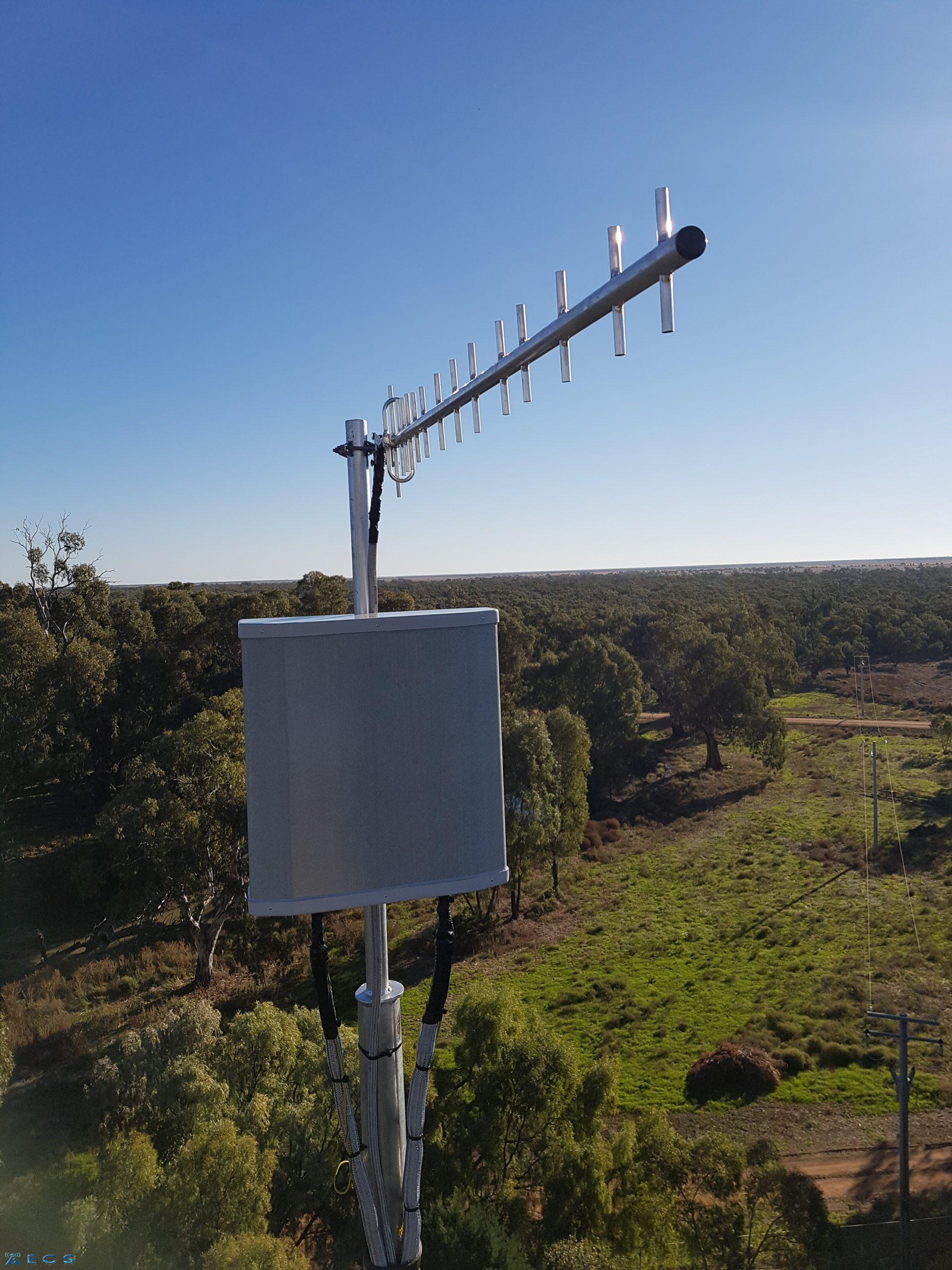

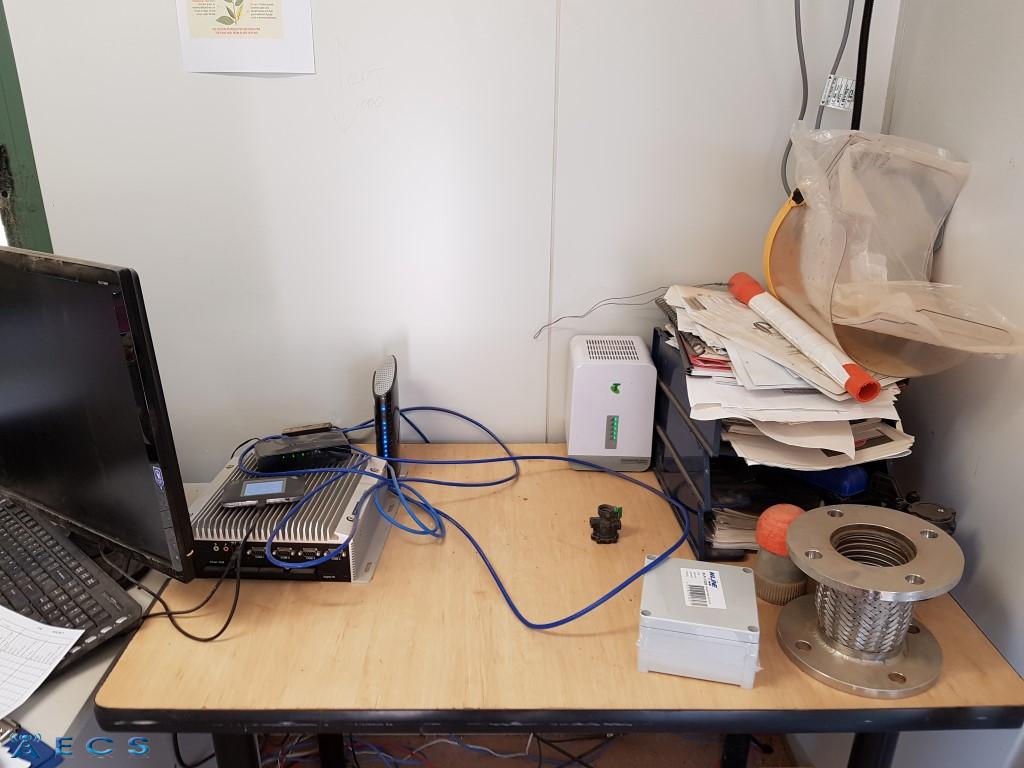

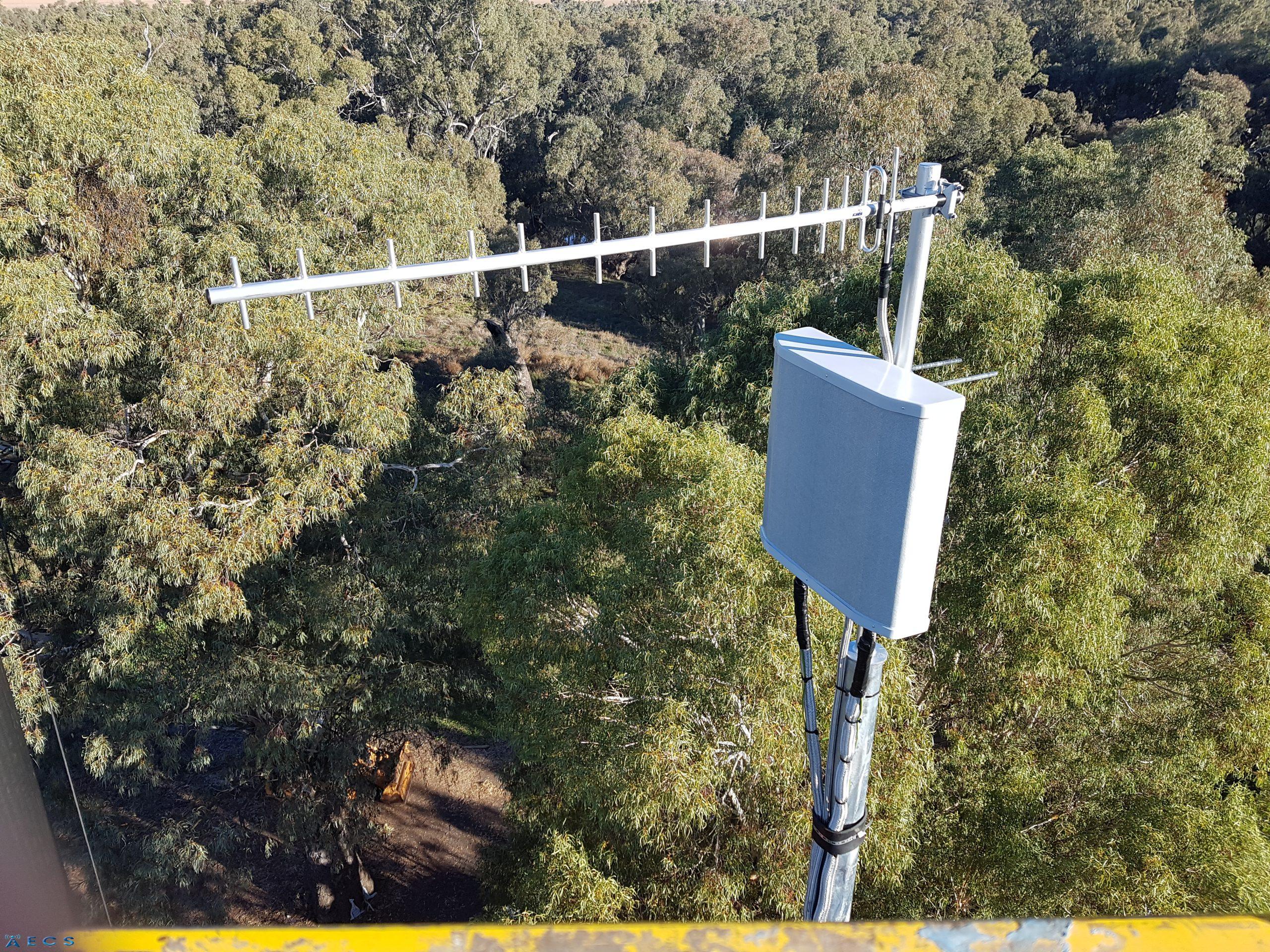

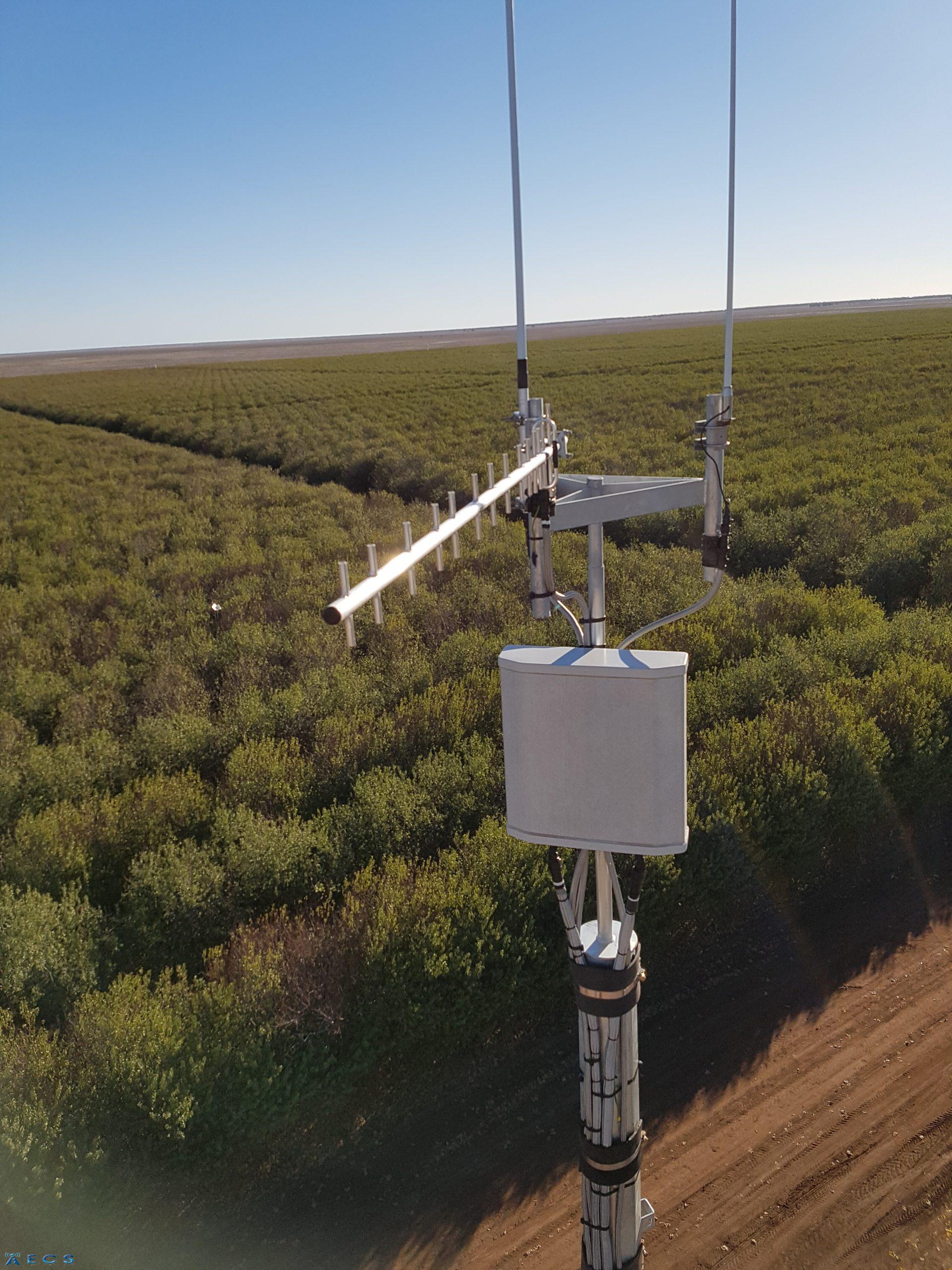

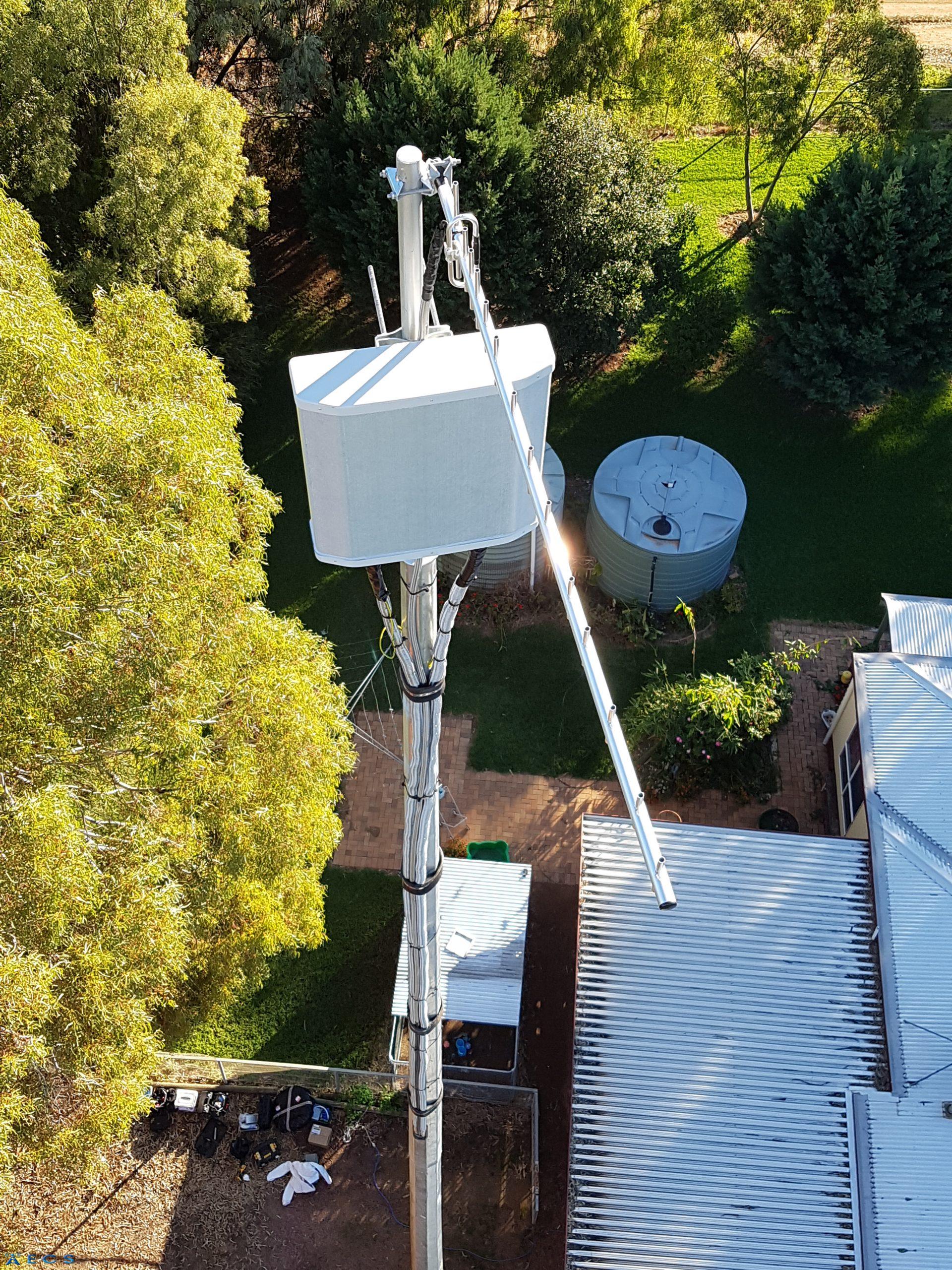

1 x Telco Antennas XPOL MIMO 3G+4GX High Gain Panel Antenna – 700 – 900MHz connected via either Andrews LDF5-50A Heliax 7/8” or Andrews LDF4-50A Heliax 1/2” to a Comset CM210A-W 3G/4G/4GX Wi-Fi Router with Dual Sim. The Heliax used depended on the length to the buildings infrastructure cabinet. The Comset is then connected via Cat6 Ethernet to Cambium Networks cnPilot E400 Wi-Fi Access Points to distribute Wi-Fi signal throughout each of the premises.

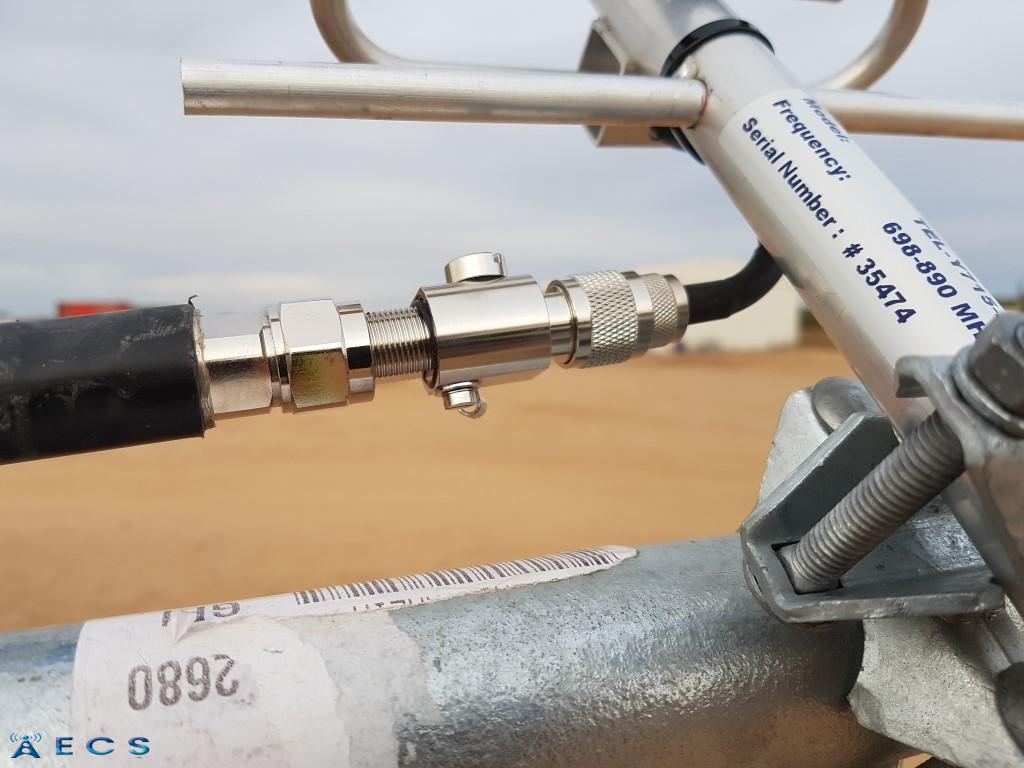

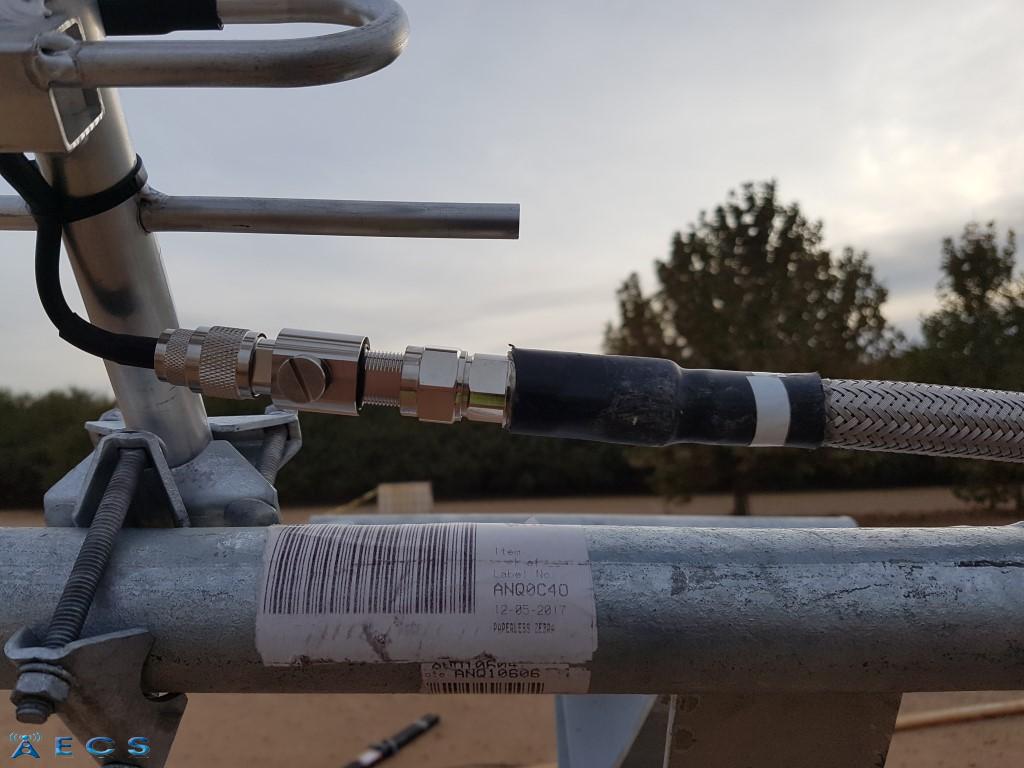

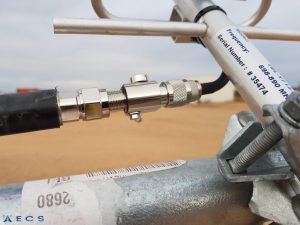

1 x RFI Technology Solutions Next-G+4GX 15dBi Yagi Antenna, again connected via either Andrews LDF5-50A Heliax 7/8” or Andrews LDF4-50A Heliax 1/2” to a Nextivity Telstra Cel-Fi Go. The Heliax used depended on the length to the buildings infrastructure cabinet. The Cel-fi Go is then connected to an RFI Technology Solutions Low PIM DAS Omnidirectional Ceiling Antenna – 698-960Mhz & 1710-6000Mhz to distribute the mobile voice signal throughout the premises.

The mast installed at the farm office also had a ZCG Scalar 12dBi 477MHz UHF Base Station antenna connected to existing UHF equipment via Andrews LDF5-50A Heliax 7/8” as well as an external antenna for an EnGenius Portable Telephone system for the main farm forecourt and barns.

This mast also had 3 x Ubiquiti airMAX M2 15dBi Sector Antennas attached to 3 x Ubiquiti Rocket M2 (2.4GHz) 802.11n WiFi AP & PtP Wireless Bridge to enable the office internet to be distributed to remote farm buildings with 3 x Ubiquiti NanoStation LOCO M2 units.

If you have a communications & telecommunications infrastructure challenge please do not hesitate to get in touch with Essential Communications Services, it would be our pleasure to be of assistance to you anywhere in Australia.

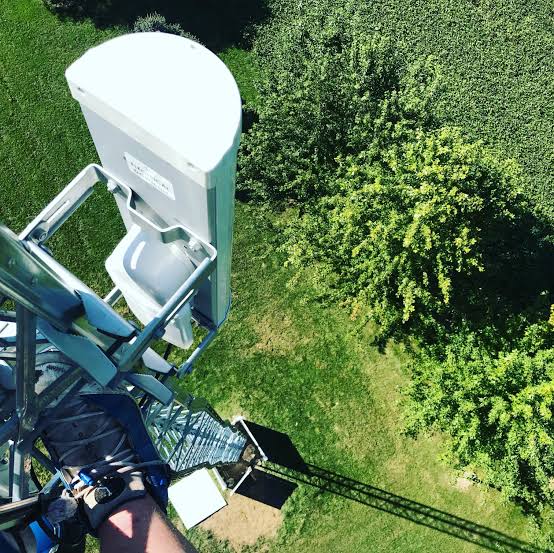

Ubiquiti airMAX M2 15dBi Sector Antenna
