Mornington Peninsula Telstra Mobile Voice & Data

3G/4GX Mobile Voice and 4GX/5G Mobile Broadband Data Installation

This is a 5M Telstra 3G/4GX mobile voice & 4GX/5G mobile broadband data infrastructure network that we have completed & handed over for a client on the Mornington Peninsula.
This property was in an area, heavily treed on 3 sides & located at the bottom of a very deep gully with a tall hill on the 4th side.

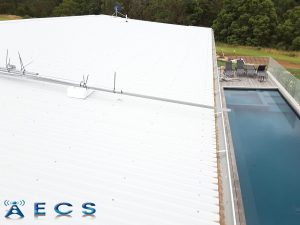

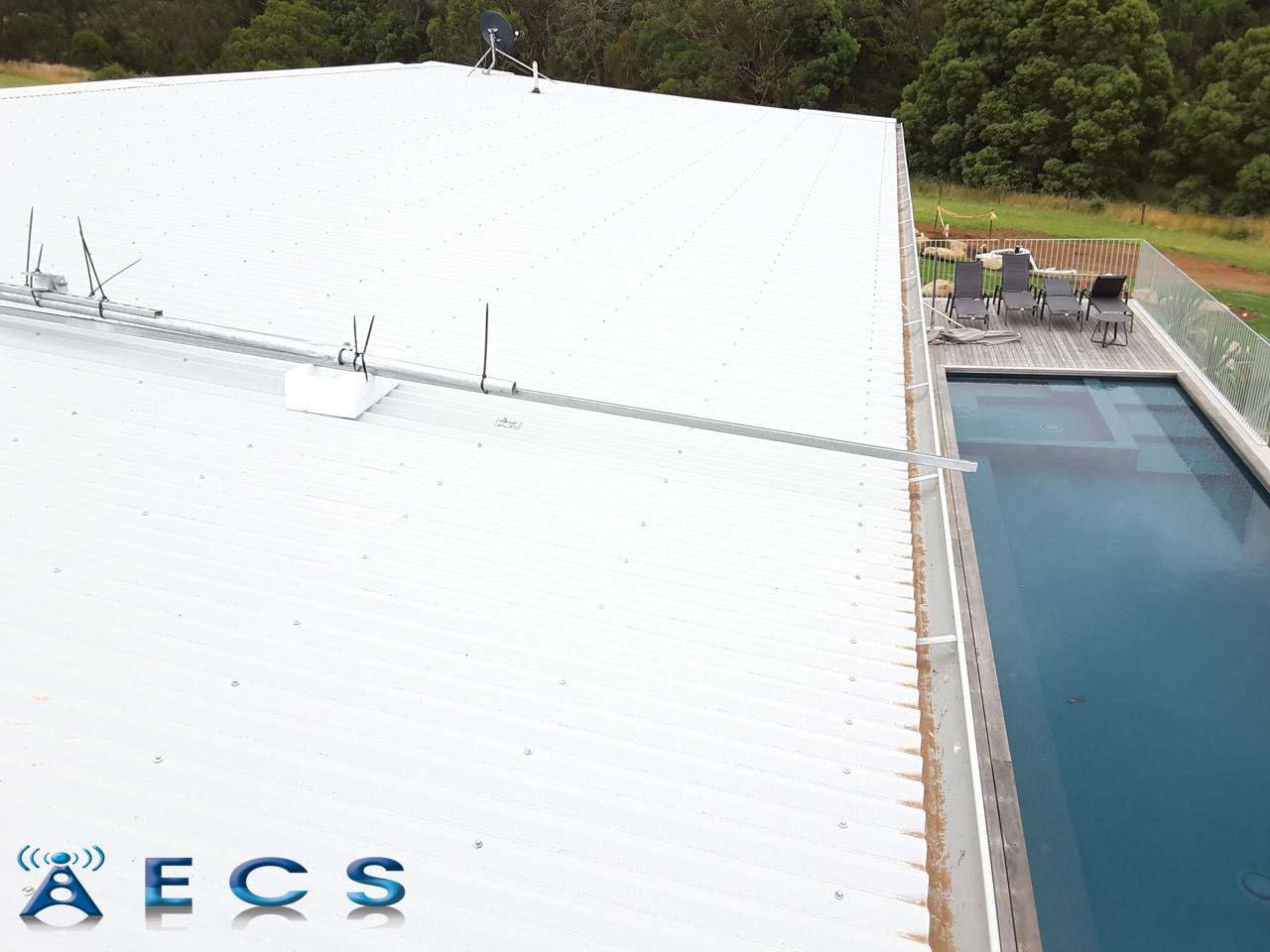

This infrastructure installation came with numerous challenges, not the least of which was that there was no ceiling access available. We had to pull up 10’s of meters of roofing to enable us to run cables.
As you can see in the photos, the client also required color coded DAS antennas.
This project took 2 full days with 2 x techs on site for a total of 16 hours.
As can also be seen by the speed test, the end results were stunning and the client is wrapped!

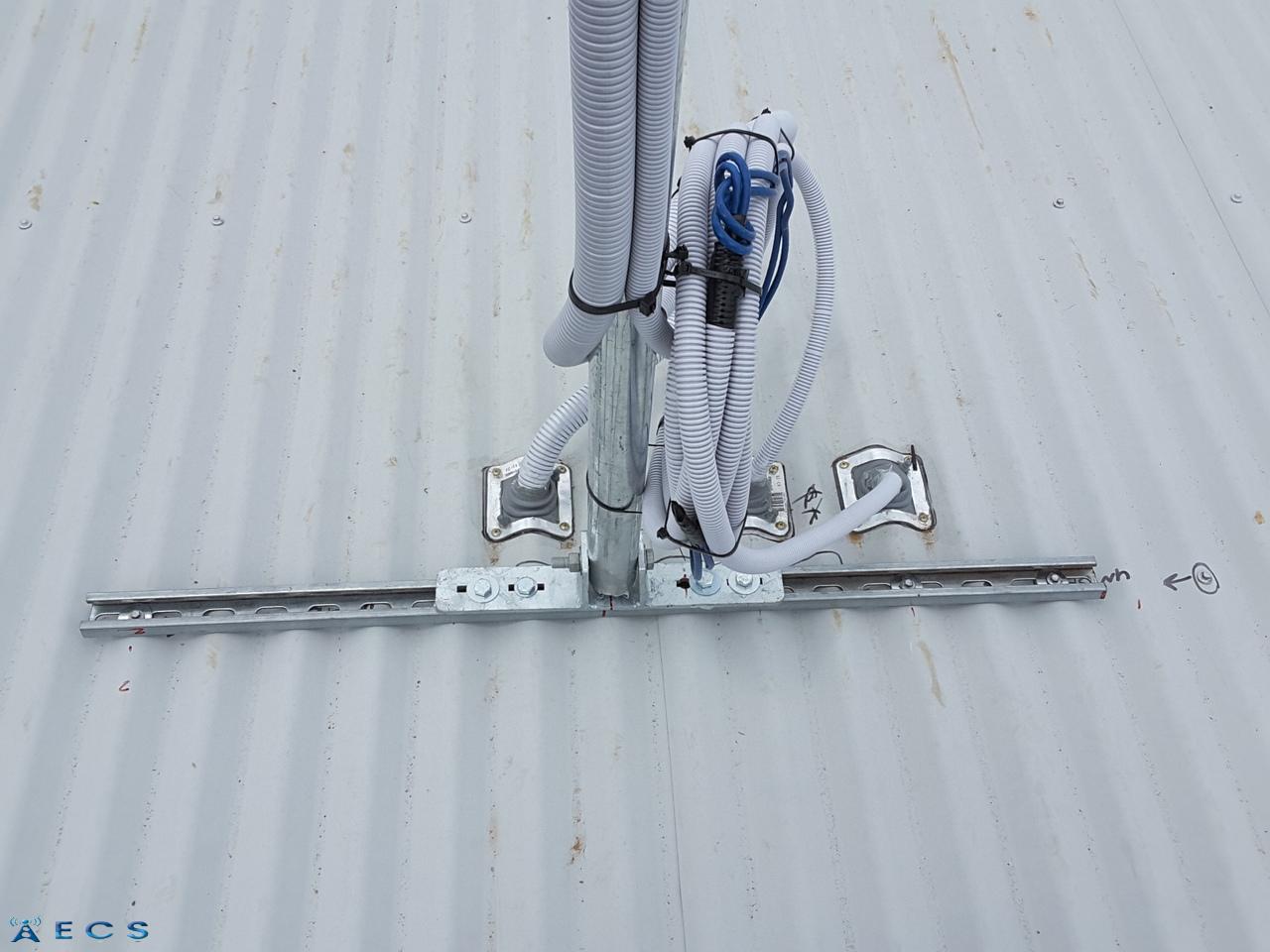

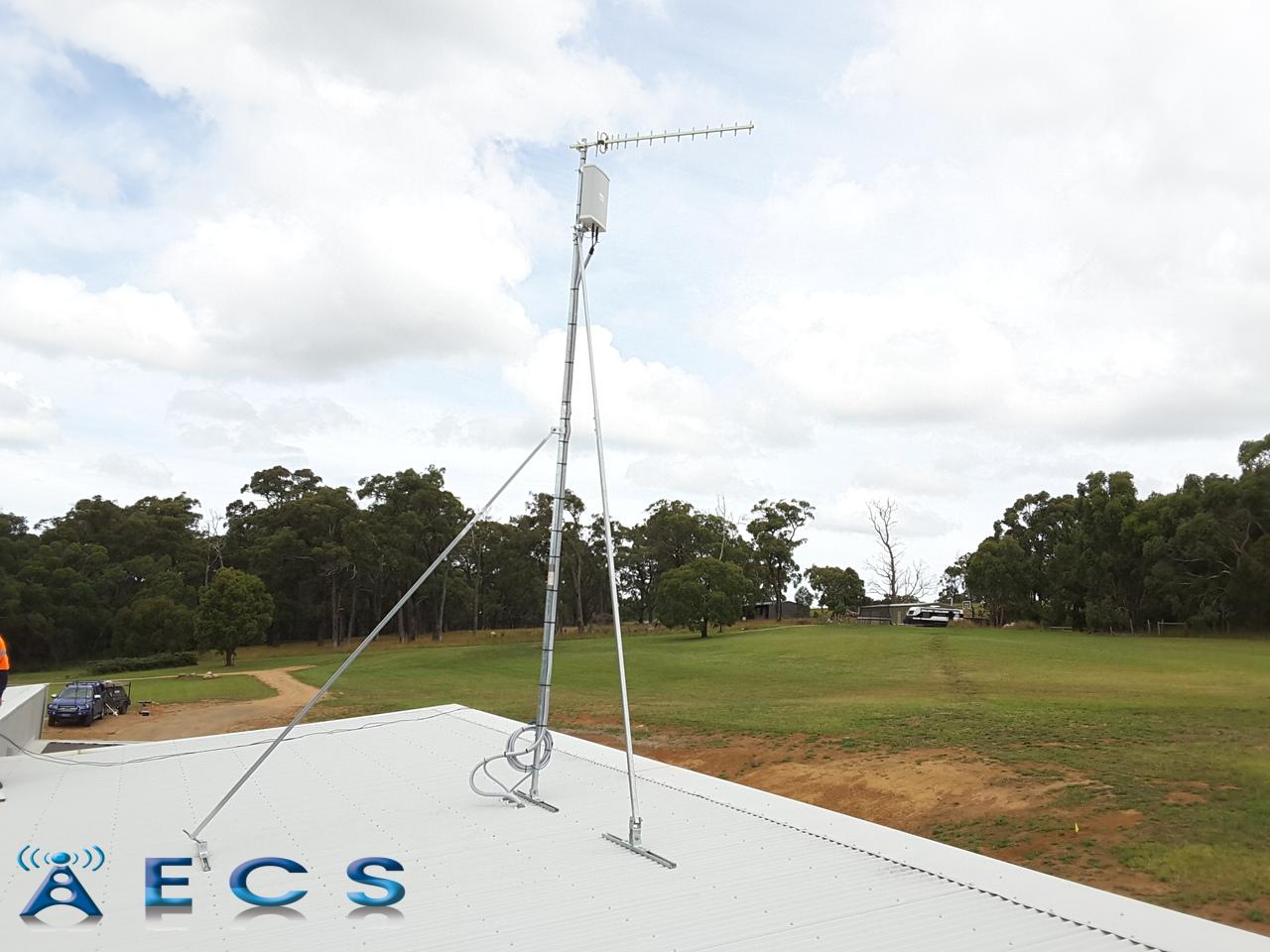

The rolled up cable at the bottom of the mast is for the next exciting part of this installation coming soon involving an 18M lattice mast at the top of the hill with a Cambium Networks Gigabit link back to the Telco Antennas 5M mast.
Mornington Peninsular cont’
The Infrastructure involved in the supply, installation & commissioning of the following Telstra mobile voice & data communications & telecommunications infrastructure is as follows.

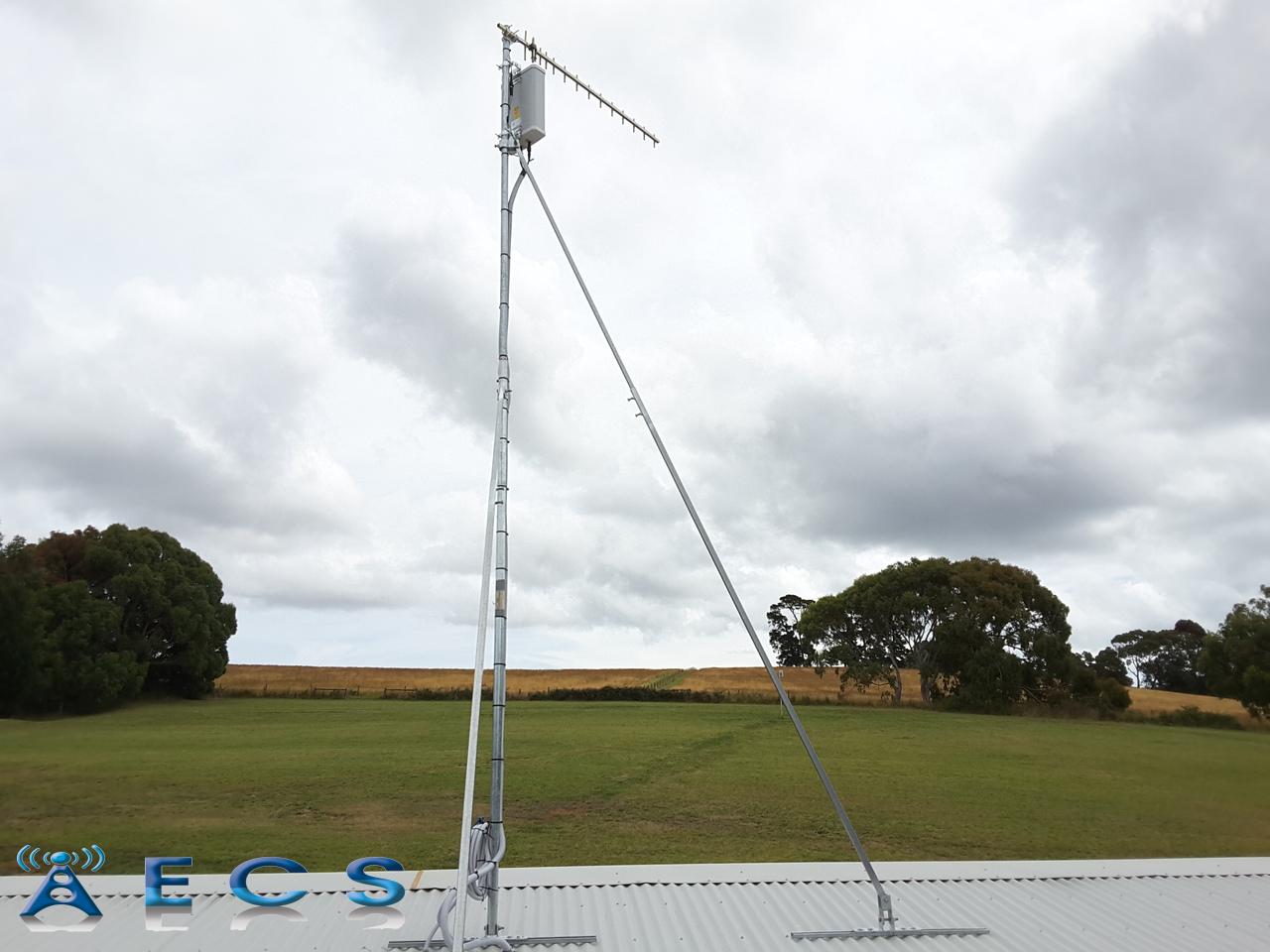

Telco Antennas Roof Mounted Serviceable Mast – 5m

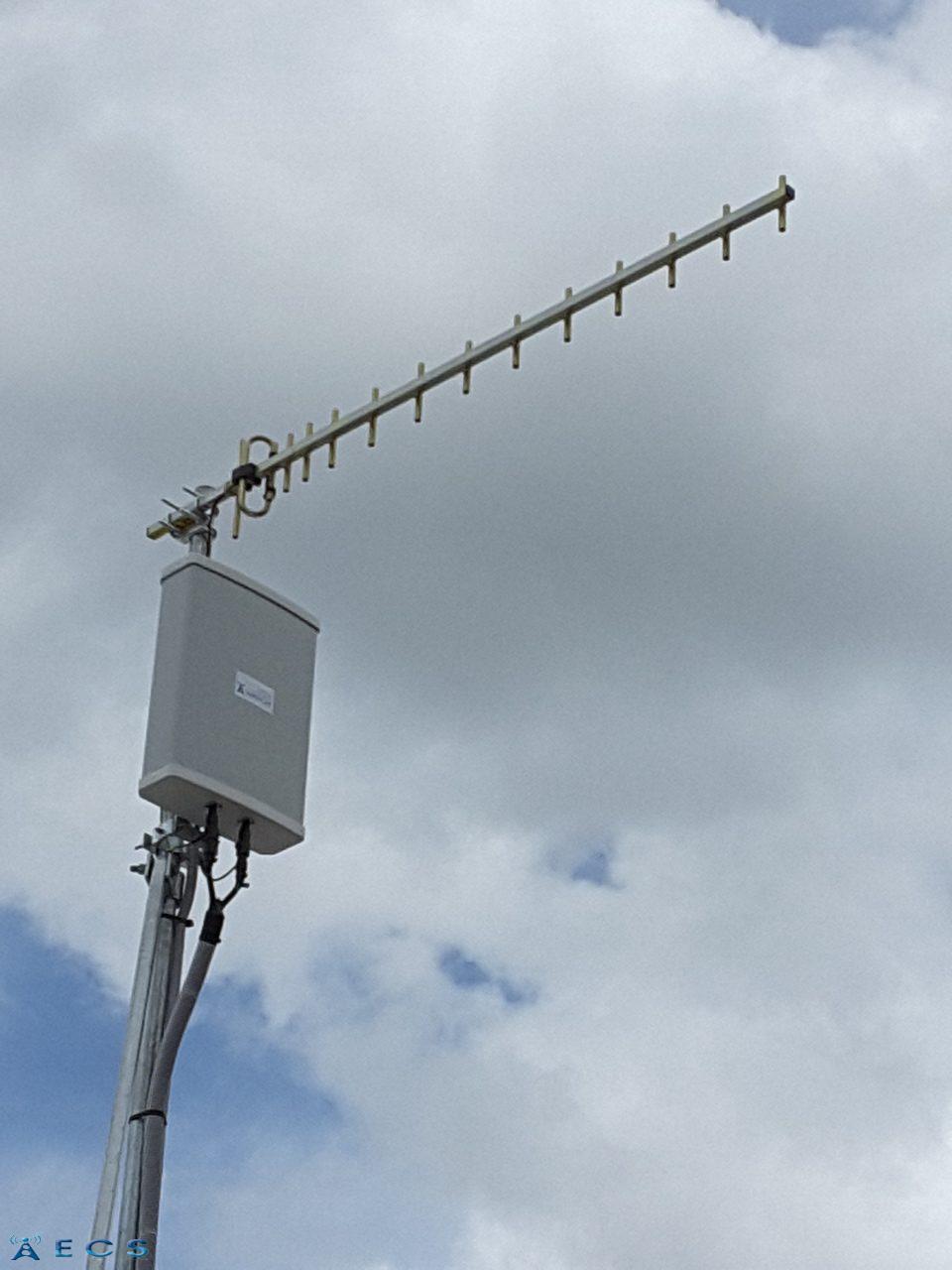

Telco Antennas Telco XPOL MIMO Panel Antenna – 3G, 4G & 5G – 700-3800MHz
(This is a very cool piece of gear )
RFI Technology Solutions RFI Next-G+4GX 15dBi Yagi Antenna – 700-850MHz.
Phaseblockers N Male to Female Lightning Arrester – up to 6GHz.
Telco Antennas LCU400 20m Coaxial Cables – N Male to FME Female.

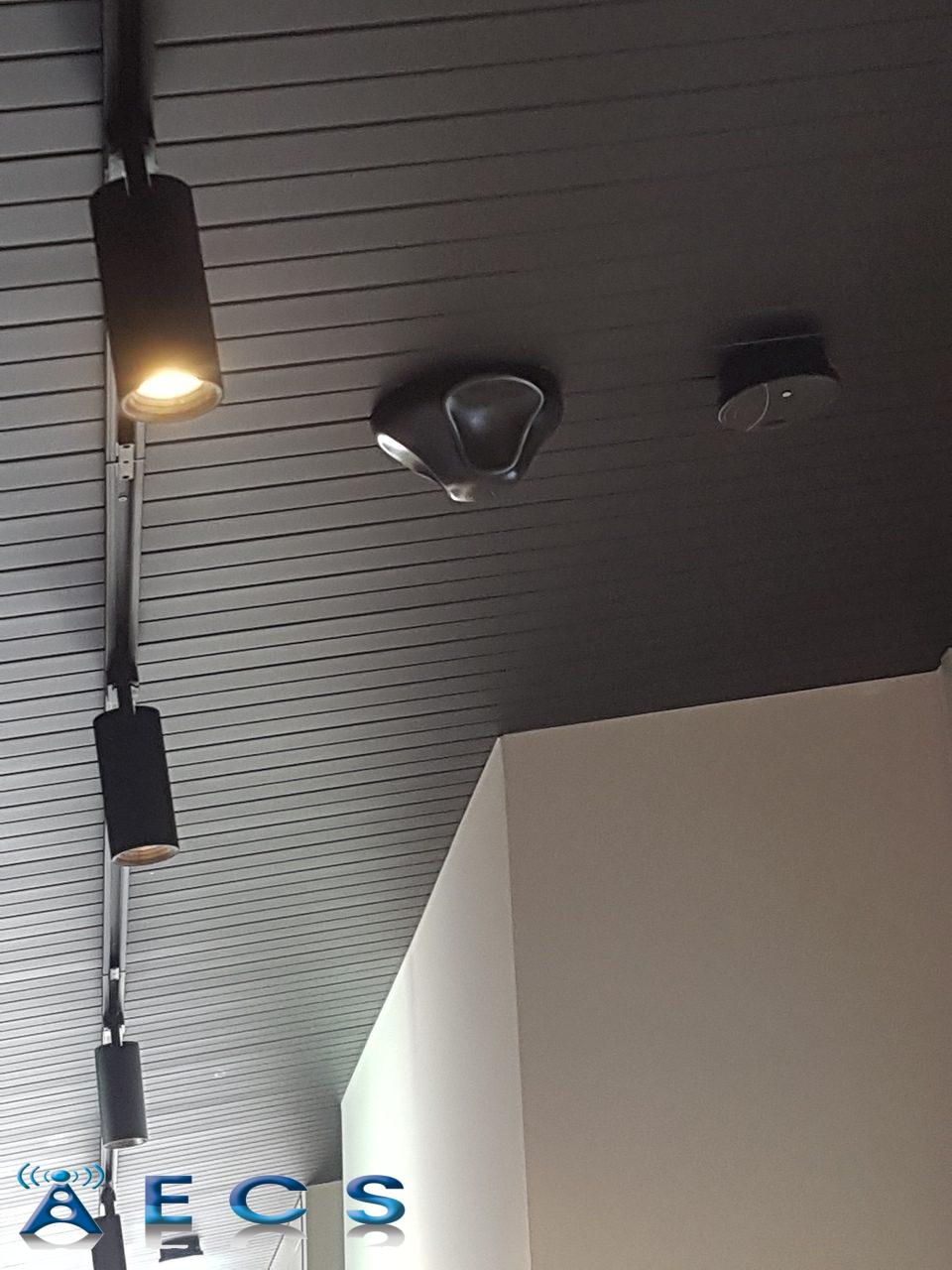

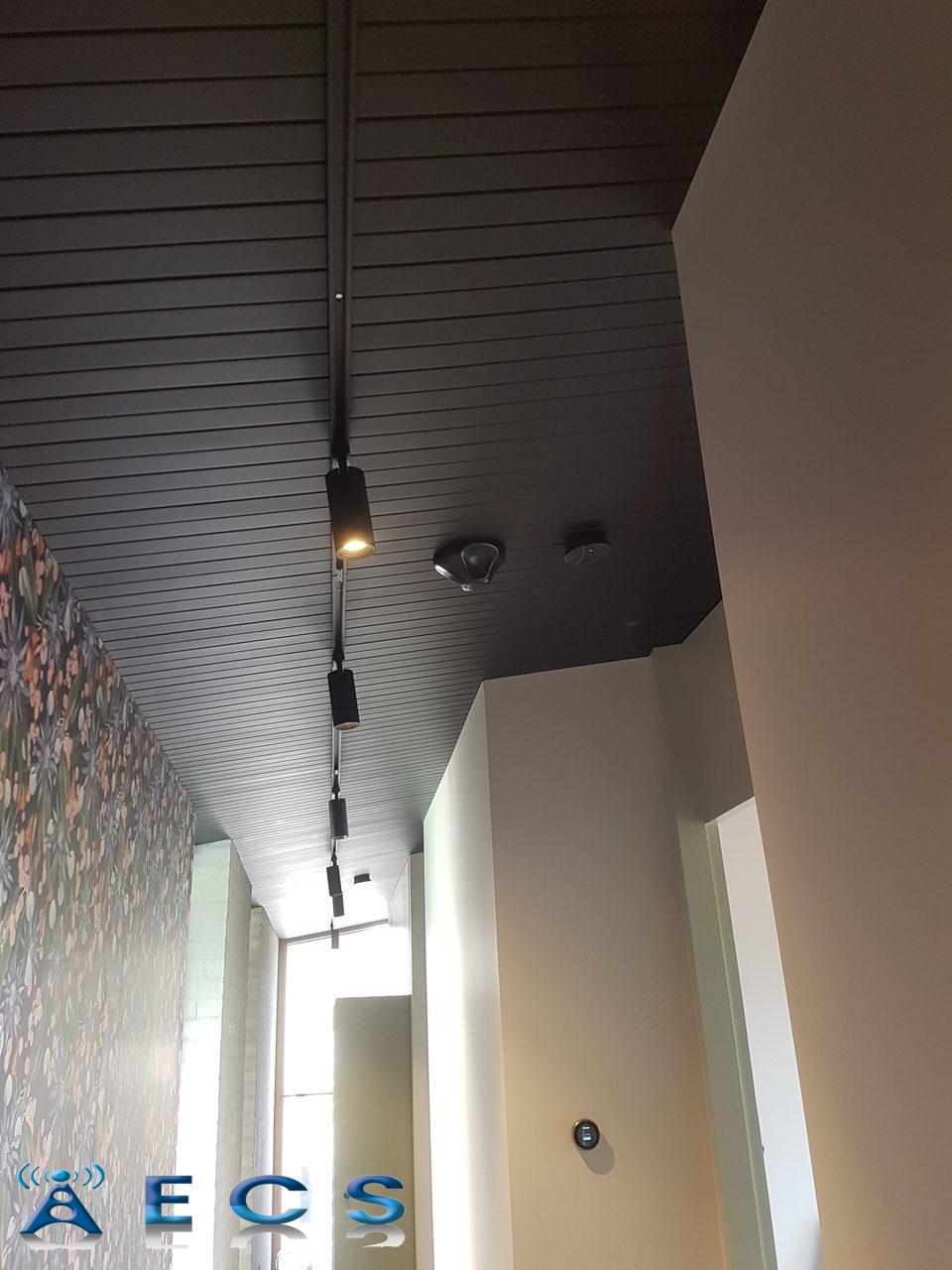

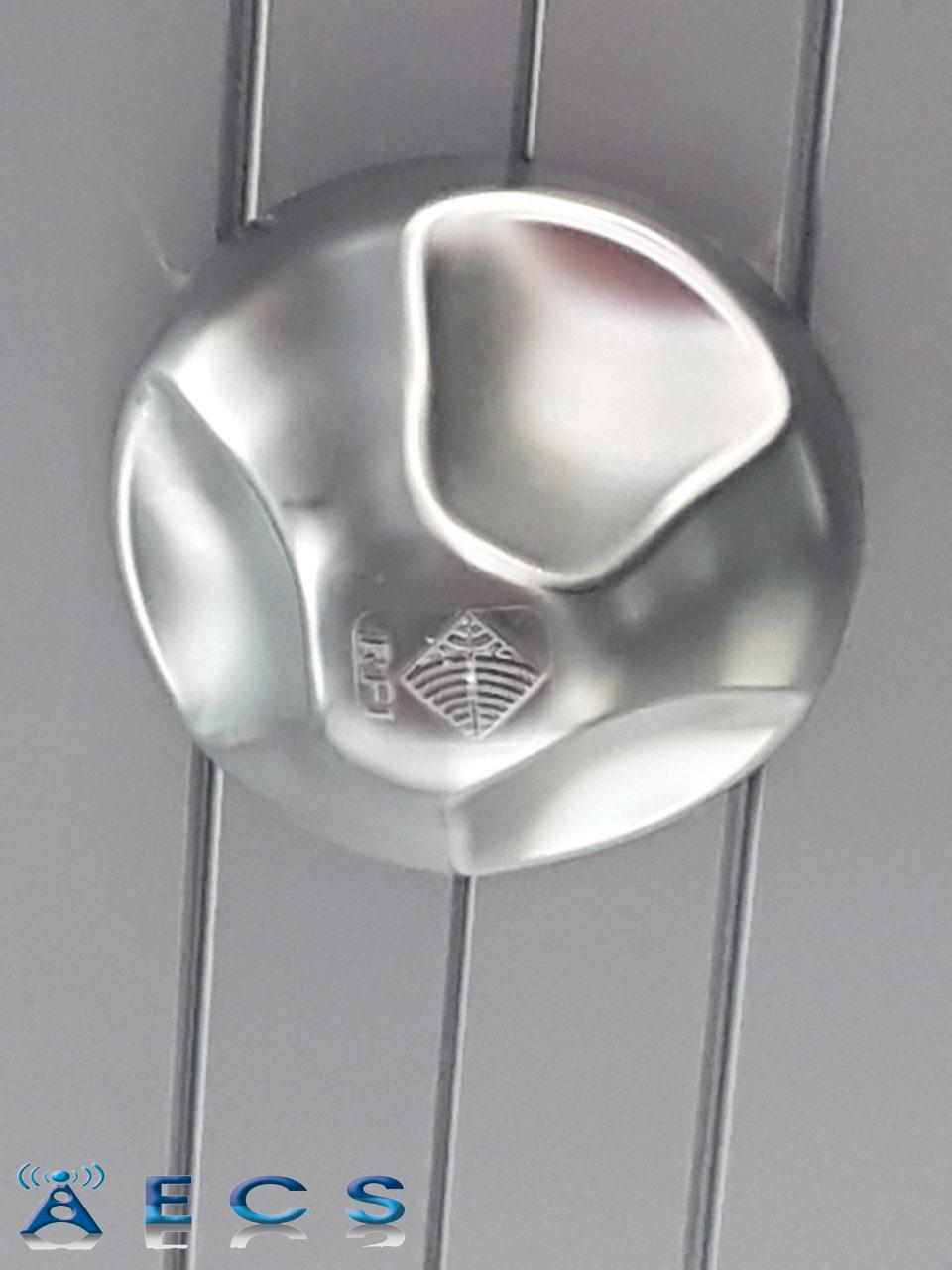

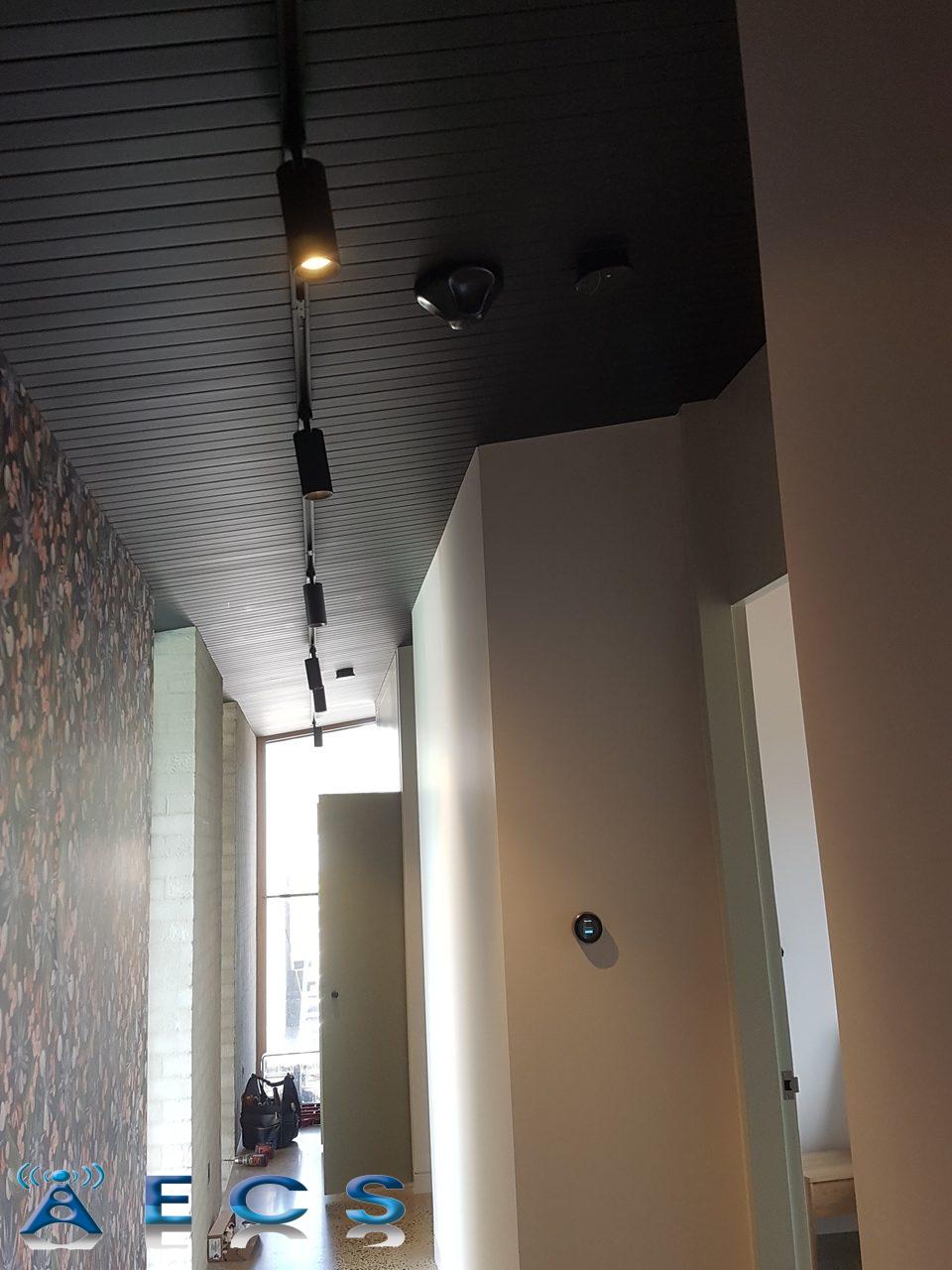

RFI Technology Solutions RFI DAS Omni directional PIM Rated Ceiling Antennas – 700-2700MHz. ( Specially painted black to suit the house interior )

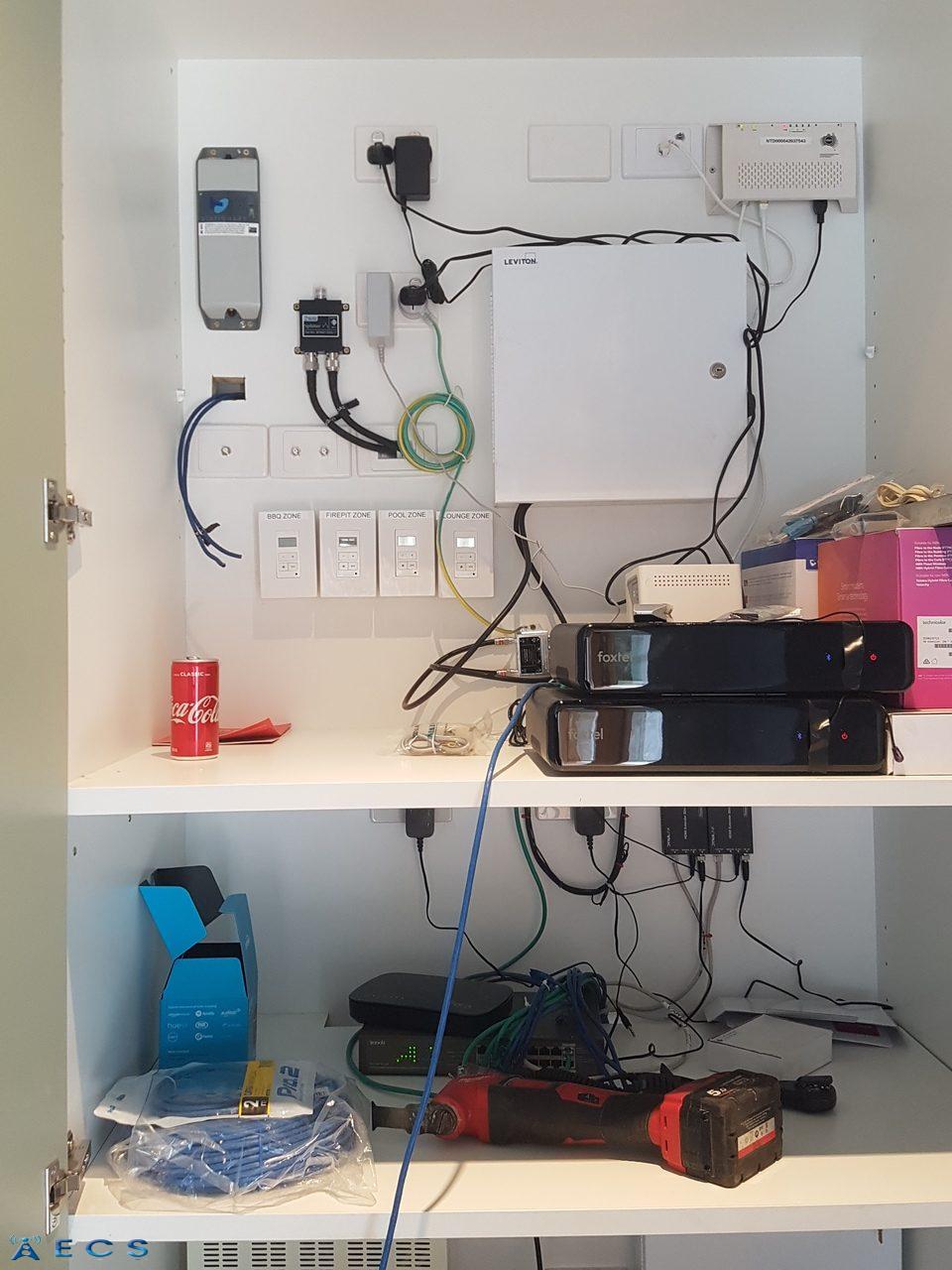

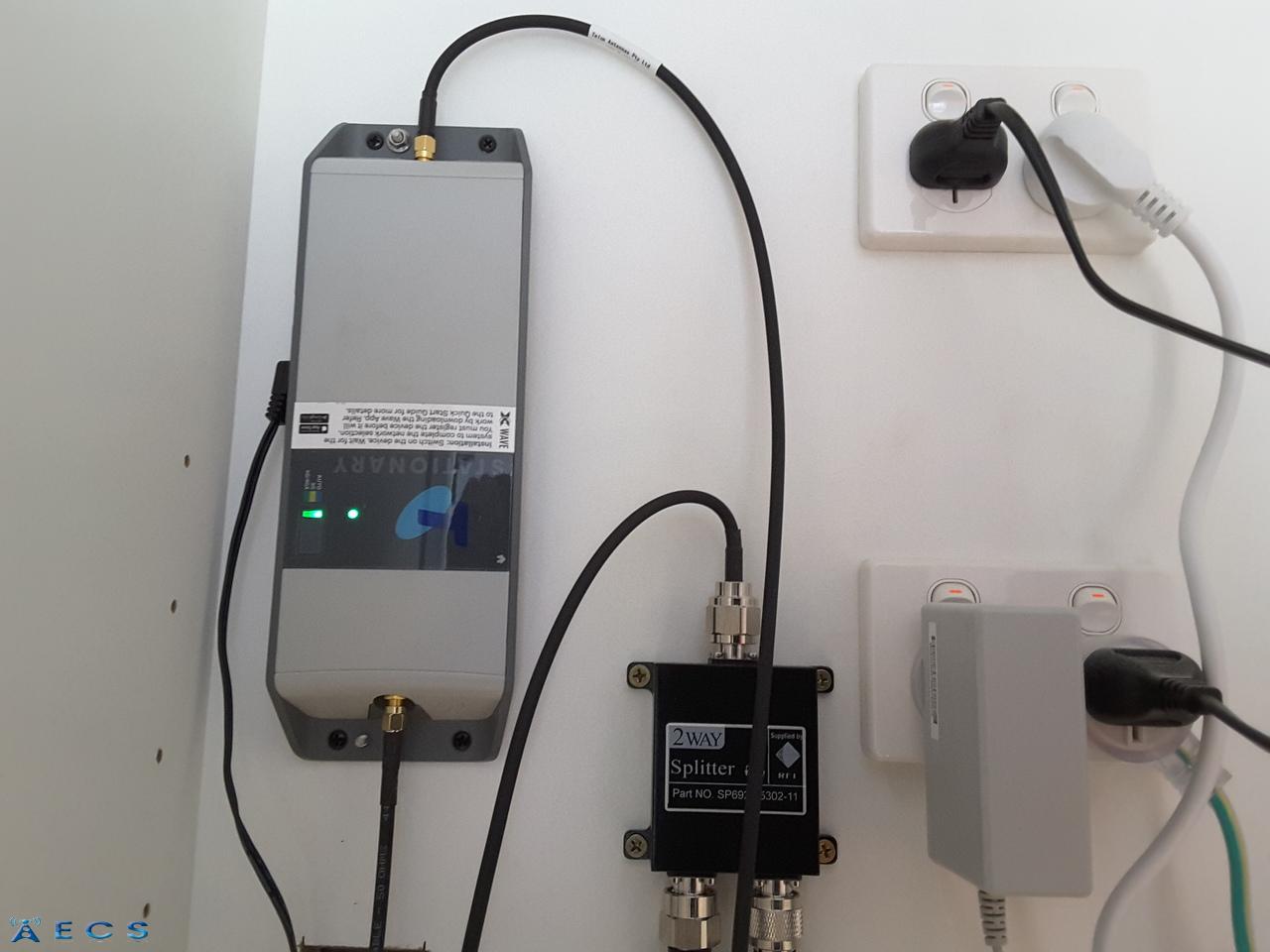

Cel-Fi by Nextivity Cel-Fi GO Smart Signal Booster for Telstra 3G or 4GX.
Telstra Netgear MR5100 M5 5G Router.
As usual a big shout out to our incredible & ever reliable partner & supplier Telco Antennas for their ever reliable service & supply of 1st class communications & telecommunications infrastructure that makes all these communications & telecommunications infrastructure installation projects possible & so successful.
If you have a communications & telecommunications infrastructure challenge please do not hesitate to get in touch with Essential Communications Services, it would be our pleasure to be of assistance to you anywhere in Australia.
