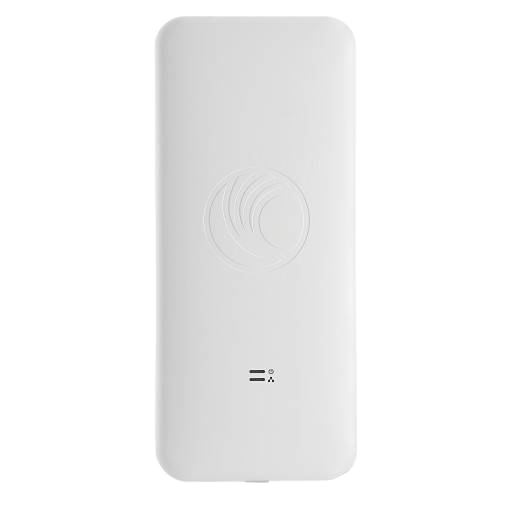

Cambium Networks cnPilot e700 Outdoor AP


Available on backorder

SKU: PL-E700X00A-RW Categories: ,

cnPilot e700 Outdoor Omni Gigabit 802.11ac Wave 2, 8 dBi Outdoor Access Point

Operational superiority – IP67 weather resilient Outdoor Access Point (AP) with 512 max concurrent client associations, 16 SSIDs, WPA-2 encryption, Meshing, Dynamic VLANs, DFS channels, Access control lists (ACL), zero touch provisioning and more – the 802.11ac wave2 powered e700 is perfect for today’s demanding high density outdoor Wi-Fi networks.

High performance Wi-Fi – Standards based beamforming, on 5 GHz over a 4×4 Tx/Rx antenna array, can steer beams to the target client device delivering superior performance under high interference RF environments in both downlink and uplink* directions. Enterprise grade controller-less roaming, dynamic channel selection, automatic transmit power control, and more such cnPilot platform features ensure a high grade superior Wi-Fi network.

Mesh – Rapidly setup multi-hop mesh networks either dedicating one radio (e.g.: 5 GHz) for mesh backhaul, or using both bands for simultaneous client and mesh access.

Wireless Backhaul Integration – Roll out Wi-Fi networks rapidly with Cambium’s wireless backhaul powered from the aux PoE Out port on the e700 eliminating the need for a second power line. The aux PoE Out port can also power an 802.3af camera when security monitoring is needed near the hotspot.

Resilience – Dual on-board Active/Standby memory banks ensure higher availability. The e700 can store two versions of the software and if needed fall back to a working operational software, reducing the likelihood of site visits and increasing network up-time.


  •  802.11ac, 512 users, 16 SSIDs
  •  Omni antenna
  •  UV rated IP-67 enclosure
  •  Max Operating Temp range: -40°C ~ +65°C
  •  Operating humidity: 10% to 95%
  •  Electrical heater for cold start
  •  Ruggedized; ESD protection, Industrial grade
  •  Packaged with wall mount brackets
  •  Special LTE resilience filtering
  •  315 x 215 x 66 mm | 3.174 lbs (1700 gms)

Download PDF Data Sheet

Product Warranty Information
