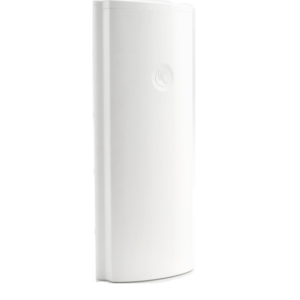

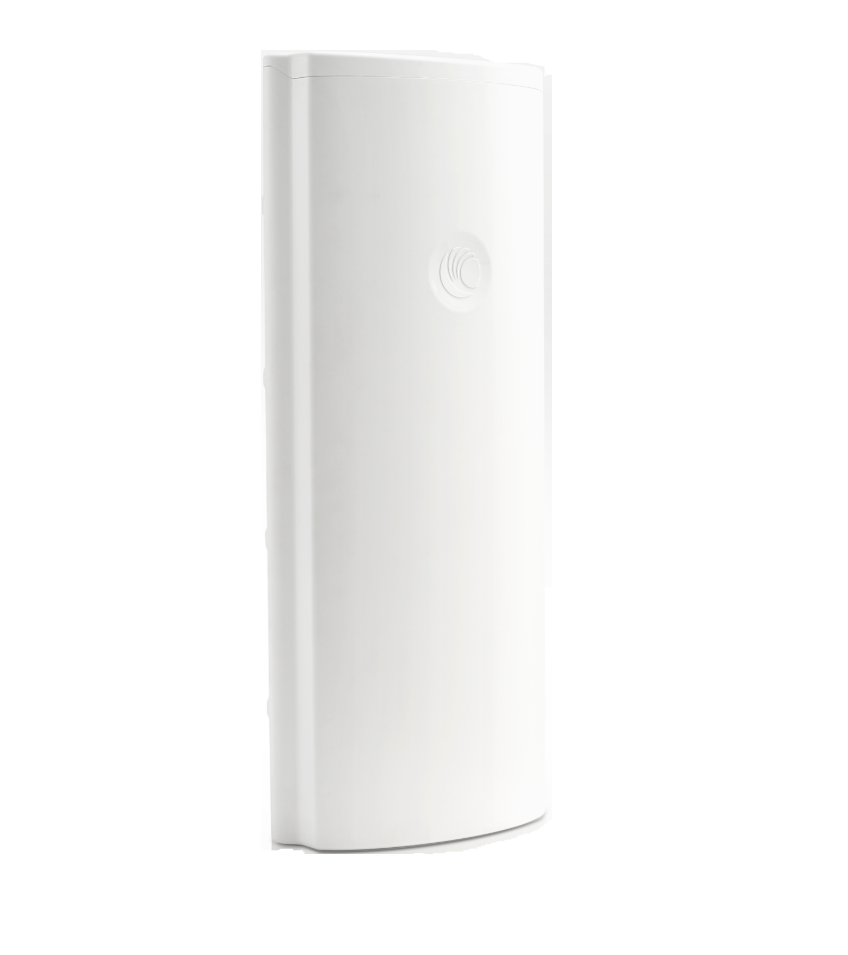

Cambium Networks ePMP 4×4 MU-MIMO 17dBi Sector Antenna

$796.07

SKU: C050910D301A Categories: ,
Product Features:
  • 17dBi Gain
  • 4.9 to 5.97GHz Spectrum
  • 30dBi Front to Back Ratio
  • IP 65 Ruggedisation
Product Specifications:
  • Model Number C050910D301A
  • Frequency Range 4.9 GHz to 5.97 GHz
  • Gain 17 dBi
  • 3 dB Beam-width – Azimuth 70 degrees
  • 3 dB Beam-width – Elevation 6 degrees
  • Electrical Downtilt -2 degrees
  • Polarisation 2X Horizontal, 2X Vertical
  • Port-to-Port Isolation > 20 dB
  • Front-to-Back Ratio 30 dB
  • Maximum Input Power 5 W
  • Input Impedance 50 ohms
  • Mounting Connectors 4 x RP SMA
  • Mounting Hardware Included for mounting to mast diameters 2” to 4” (5 cm to 10 cm) -10 to +5 degree tilt
  • Hardware included to connect ePMP access point to back of antenna body
  • Physical Dimensions Antenna Body: 23.4” (H) x 9.6” (W) x 3.25” (D) (594 mm x 157 mm x 110 mm)
  • Weight Antenna Body: 8.0 lbs, 3.7 kg w/ ePMP 3000 Access Point and Mounting Brackets: 13.8 lbs. 6.3 kg
  • Environmental IP65
  • Radome Material UV Protected ABS
  • Operating Temp -400C to 600C (-400F to 1400F)
Product Includes:
  1.  ePMP 3000 Sector Antenna
  2. User Manual
