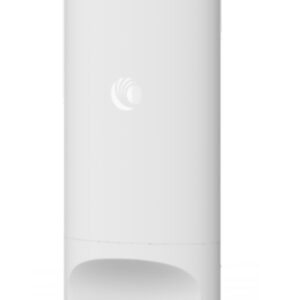

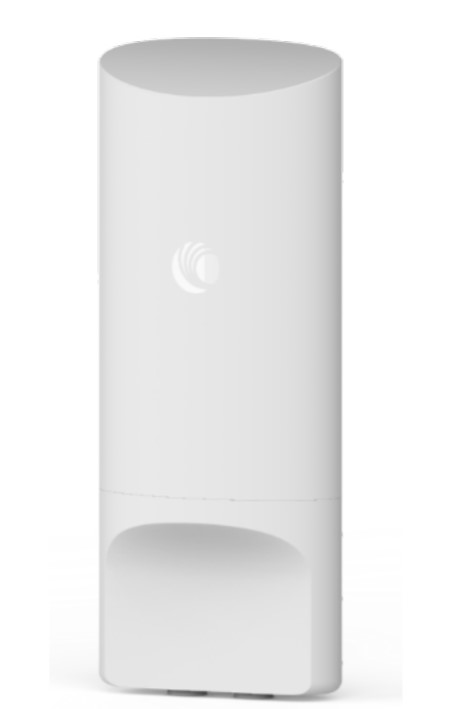

Cambium Networks XV2-2T1 Outdoor Dual radio WiFi 6 AP Sector antenna


SKU: XV2-2T1XA00-RW Categories: ,

Cambium Networks  XV2-2T1 Wi-Fi 6 Outdoor Access Point 802.11ax Dual-radio, 2×2, HE 120º Sector Antenna

XV2-2T1XA00-RW Features

  • Dual radio 802.11ax
  • 2.5 GbE Uplink Ethernet
  • 1 GbE with power out
  • Outdoor IP67 rated, -40ºC to 65ºC
  • 120º Sector Antenna


The XV2-2T1 is a dual radio Wi-Fi 6 access point (AP) designed for outdoor deployments in Wi-Fi hotspots, outdoor enterprise networks, hospitality, and education markets. Surge suppression up to 4kV and an LTE co-existence filter are featured.

The XV2-2T1 delivers Cambium 30VDC power out, or 48VDC for PoE devices connected to the second gigabit Ethernet port. Ideal for connecting the XV2-2T1 to a Cambium subscriber module (SM), Terragraph CN (connection node), or any IP and Ethernet device such as a security IP camera, or another Wi-Fi access point.

The new IEEE 802.11ax standard delivers higher network speeds and enables more connected devices at higher packet quality. In outdoor deployments, the IEEE 802.11ax standard delivers greater range by boosting the RF frame preamble by 3dB and improved signal quality with increased guard interval vs previous Wi-Fi technology. The XV2-2T1 is fully backward compatible with existing Wi-Fi technology and prepares a network for higher growth and greater density of Wi-Fi connected devices.

Download PDF Specifications Sheet

Product Warranty Information
