Freestanding Hinged Mast – 15m


SKU: TF-LSM-15 Categories: ,

Key Features

  • Hot dip galvanised and can be powder coated or painted in the colour of your choice
  • Engineered Pad or Pile foundation extra, please enquire
  • Mast head tilts all the way to ground level for easy access
  • Eliminates the need for EWPs (Elevated Work Platform)
  • Simple, practical design for safe operation
  • Mounts any type of antenna with offset brackets (brackets in photo extra)
  • 150mm galvanised box section, 3 x 8m long, 261kg x 2,1 x 190kg
  • Base Plate hole centres are 300mm x 300mm,
  • This mast can be customised to individual requirements, including:
  • Grounding/surge protection to protect equipment against lightning
  • Mast head design allowing for antenna array, sectors, etc.
  • Engineered Pad or Pile Foundation available
  • Additional mounting brackets along length of mast
  • Stand off bars, access doors, boxes, etc.
  • Multiple sizes available.


  • This product has been specifically designed to meet a demand for a tall independent antenna mast that can be lowered allowing for convenient adjustments and or maintenance of mounted equipment
  • The pivoting design of this mast means that it can be lowered  before re-raising and locking into place
  • Perfect for mine sites, airports, and rural facilities, these masts offer a simple, safe, and effective method of RF equipment maintenance that can be carried out by one or two people
  • The lowering mast is the ideal solution where space is limited and cherry pickers are not feasible
  • The height of the mast also lends itself for use by clients looking to mount antennas high enough to clear trees or other obstructions in order to receive a clearer and stronger signal
  • Future proofing comes in the form of convenient access to the mast head and as new technology becomes available you will be able to easily replace/upgrade antennas, radios etc. to ensure that you are achieving the best performance possible
  • Please contact us for orders of multiple masts, trade pricing and to discuss customisation of mast for a specific project

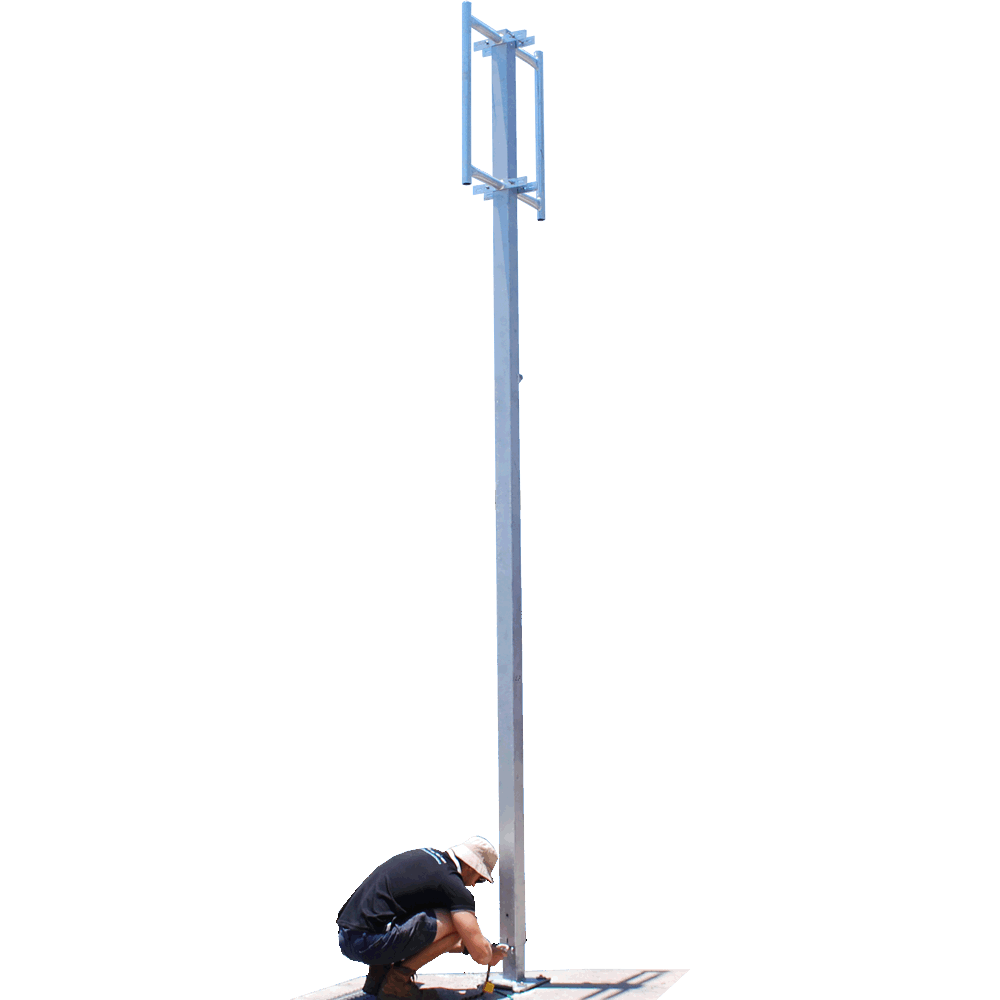

  • The tower shown has a Custom Mast Head installed.

Engineer approved recommendation

  • Due to the complicated nature of tower infrastructure, it can prove invaluable to have an engineer approved recommendation for solutions that will accommodate your particular project.
  • We offer a Tower Recommendation Proposal Consultation Service, providing a detailed report that you can use for the planning of communication assets.
Please contact us for:
  •  mast orders, trade pricing and to discuss customisating a mast/s for a specific project
  • Correct foundation requirements
  • expected lead times for masts and towers.
  • Freight costing -due to the size of this mast the frieght has to be calculated utilising a specialised freight agent
Weight 500 kg
Dimensions 8000 × 15 × 21 cm
