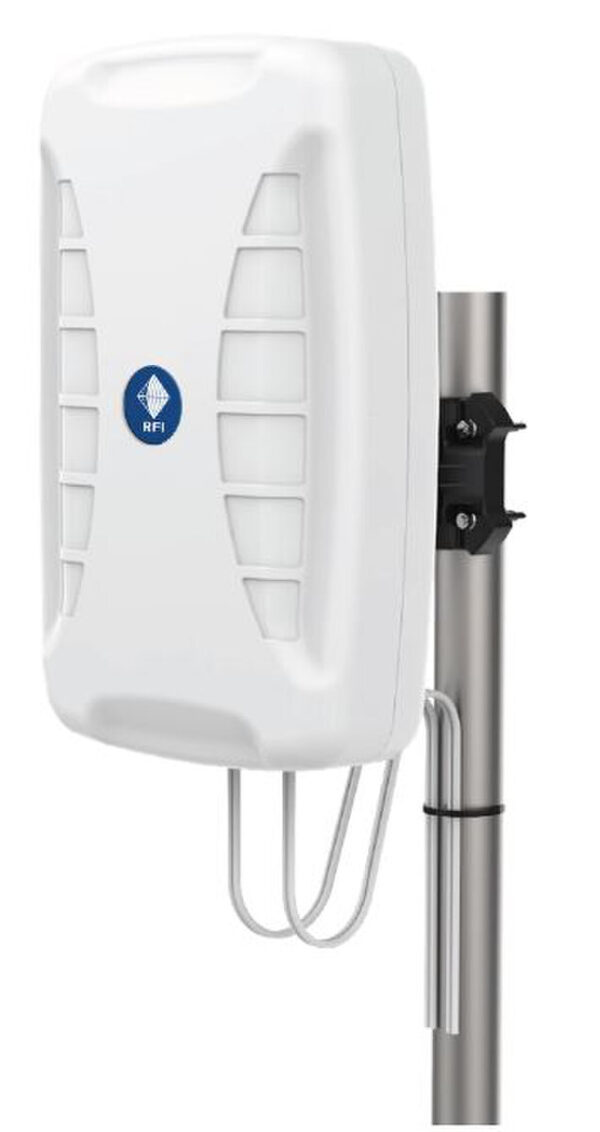

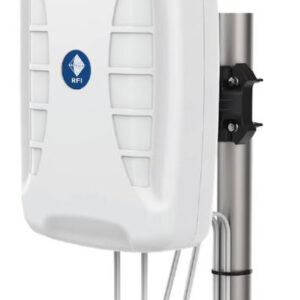

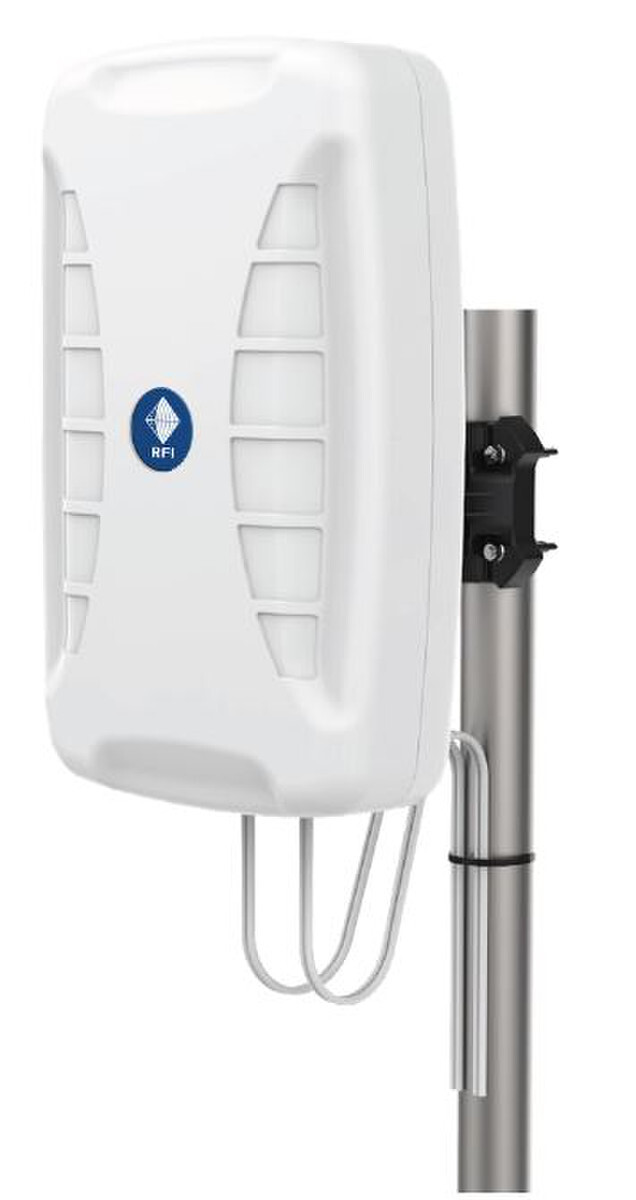

RFI Wideband MuMIMO 4G & 5G Panel Antenna

$660.00

SKU: LTE-XPOL-4X4-5G-D Categories: ,

RFI Wide-band MuMIMO 4×4 4G & 5G Panel Antenna – 617-4200MHz

Key Features

  • X-Polarised 4×4 MIMO for current and future technologies
  • Integrated 4x N Female Connectors
  • Wideband coverage with exceptional performance
  • Operates from 617 to 4200 MHz with 11 dBi gain
  • Various mounting options for ease of installation (pole or wall)
  • Weatherproof & waterproof (IP65)

Additional Information

The LTE-XPOL-4X4-5G expands the very popular Cross Polarised (LTE-XPOL) antenna range with 4×4 MIMO 5G/LTE bands providing exceptional performance from 617 to 4200 MHz. This is due to the incorporation of advanced metamaterial technology, making use of an Artificial Magnetic Conductor (AMC) and new registered/patent configuration, which has proven to yield exceptional improvements in bandwidth and gain. The radiation patterns of this antenna are exceptionally well controlled, which further adds to exceptional performance of the antenna.

Usage

The LTE-5G-XPOL-4X4(-NF) offers wideband frequency coverage from 617 to 4200 MHz, with a peak gain of 11dBi across the bands of operation.

The antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz & 3400 – 4200 MHz.

The exceptional wideband performance is an important factor for 5G/LTE technologies, as these technologies rely on features such as Carrier Aggregation (CA) to provide the best possible reception and throughput over multiple frequency bands simultaneously.

This makes the LTE-5G-XPOL-4X4 the go-to solution for current and future 5G/LTE antenna deployments.

Not sure if you’ll get 5G? With an equally high gain on all other 4G networks, you can still improve your current connection

Take full advantage of the blistering fast 4G network it won’t matter whether you are with Telstra, Optus and Vodafone’s or one of their resellers

If you’re outside the official 5G ‘coverage zone’ or your modem keeps switching back over to 4G, this antenna will help you lock on, or increase the signal strength and speed of your 4G connection.

Ideal for suburban and metro areas

Antennas like this that offer a Wide Beamwidth are ideal for areas where hills and buildings are very close to your location

This antenna rests at ground potential, providing improved lightning protection and reduced precipitation static noise

If you are connecting to the higher bands within the 4G offering we strongly suggest using LCU400 extension cables due to the high attenuation losses suffered on higher frequencies.

Specifications / Frequency

Network Compatibility Yes/No Gain
Telstra 4GX (700MHz) Yes 8.5dBi
Optus 4G+ (700MHz) Yes 8.5dBi
Telstra Next-G™ (850MHz) Yes 8.5dBi
Vodafone 4G+(850MHz)* *Please check Vodafone Coverage Map Yes 8.5dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map. Yes 8.5dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map. Yes 8.5dBi
Telstra/Optus/Voda 4G (1800MHz) Yes 8.5dBi
All carriers – Urban/Metro 3G (2100MHz) Yes 8.5dBi
Optus 4G/Vivid Wireless (2300MHz) Yes 8.5dBi
LTE-TDD Bands 38, 40 (2300MHz) Yes 8.5dBi
802.11 b/g/n/ac WiFi (2400MHz) Yes 8.5dBi
Telstra 4Gx (2600Mhz) Yes 8.5dBi
Optus 4G+ (2600Mhz) Yes 8.5dBi
Telstra & Optus 5G N78 (3600MHZ) Yes 11dBi

Electrical Specifications

  • Frequency Range: 617-960MHz / 1710-2700MHz / 3400-4200MHz
  • Input Impedance: 50Ω
  • VSWR: <2.0:1
  • Feed Power Handling: 10Watts

Mechanical/Environmental Specifications

  • Construction: UV Stable ASA
  • Mounting: Pole or Wall Mount (Bracket Included)
  • Cable: Nil – Integrated Connectors
  • Connector: N-Type Female
  • Salt Spray: MIL-STD 810G/ASTM B117
  • Operating Humidity: Up to 98%
  • Enclosure Flammability: UL 95-HB
  • Impact Resistance: IK08
  • Temperature: -40°C +80°C
  • Dimensions: 290 x 440 x 110mm (L x W x D)
  • Weight: 2.5kg
  • Water Ingress: IP65
