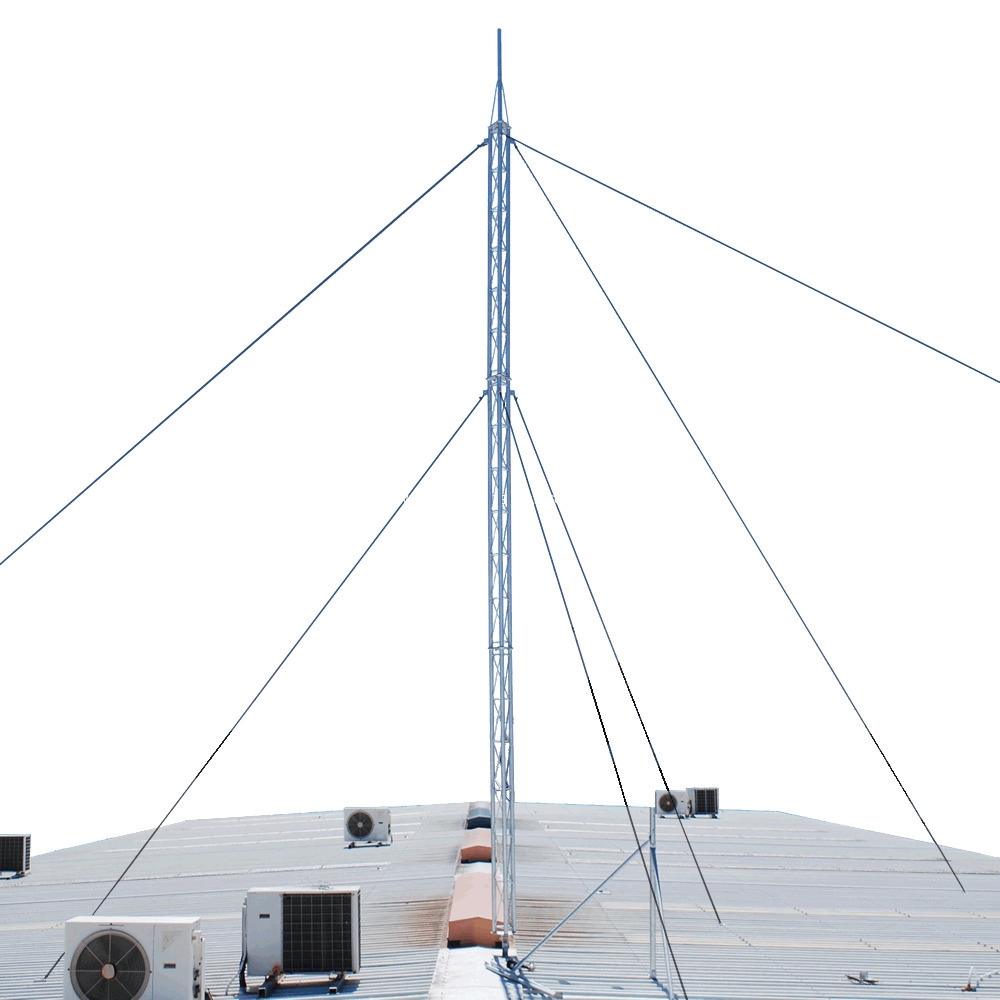

12 metre Aluminium Lattice Serviceable Guyed Tower

SKU: TF-RM-ALG12

Key Features

  • Engineer certified to support dish antennas up to 900mm in diameter in 100km/h winds
  • Modular design can reach heights up to 21m and be couriered directly to your location like a standard package
  • Custom swivel baseplate allows the mast to be installed on a wide range of roof angles/pitches, and the entire mast can be lowered down to the roof level
  • Design facilitates easy access to the headload and makes performing maintenance or adjustments a simple procedure
  • Regular production runs ensure we have a large number of sections in stock and can supply components quickly.

Usage

  • Modular designed mast that can be easily adapted to suit height applications.

Specifications

  • Aluminium fabrication in accordance to AS1664
  • Aluminium welding in accordance at AS1665
  • 7/16″ Zinc or stainless steel bolts in accordance to ISO3506 U.N.O
  • Guy cables in accordance to AS3569, Class 7X19 Grade 2070
  • Guy wire preload tension to 1.0 kN
  • Cable joins and attachments in accordance to AS2579
  • Structure classification per AS3995 is Type II

Engineer approved recommendation

  • Due to the complicated nature of tower infrastructure, an engineer approved recommendation can prove invaluable for solutions that will accommodate your particular project
  • We offer a Tower Recommendation Proposal Consultation Service, providing a detailed report for the planning of communication assets.

Please contact us for:

  • maximum dish size, heights and bracing information for your application
  • orders of multiple towers, trade pricing, lead times and to discuss customising your mast for a specific project.



tower configuration plan
