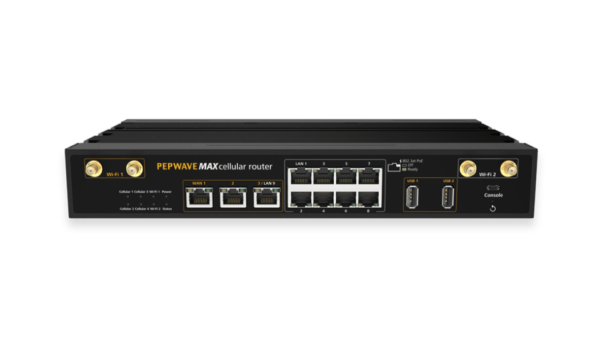

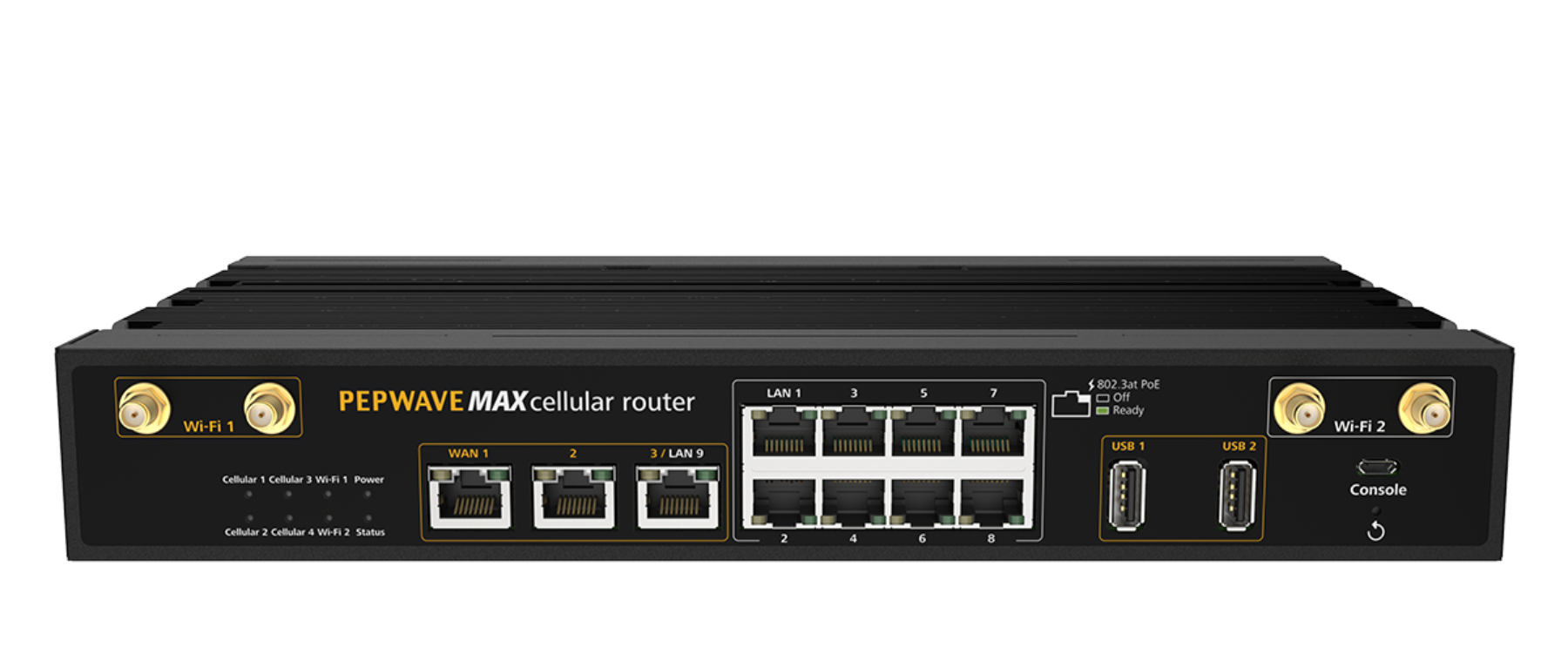

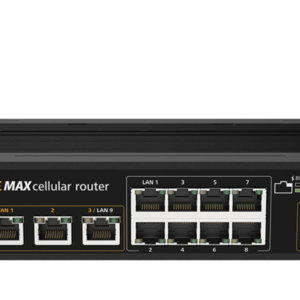

Peplink HD4 MBX

Multi-Cellular Gigabit LTE Mobile Powerhouse

The HD4 MBX is capable of combining the bandwidth of  4 cellular links into an unbreakable, high-speed SD-WAN connection. The HD4 MBX supports up to 8 SIM cards, with room for another 8 with the optional SIM Injector. With up to 16 cellular providers to connect to, spotty coverage will simply not be a problem.

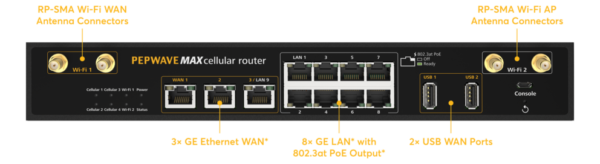

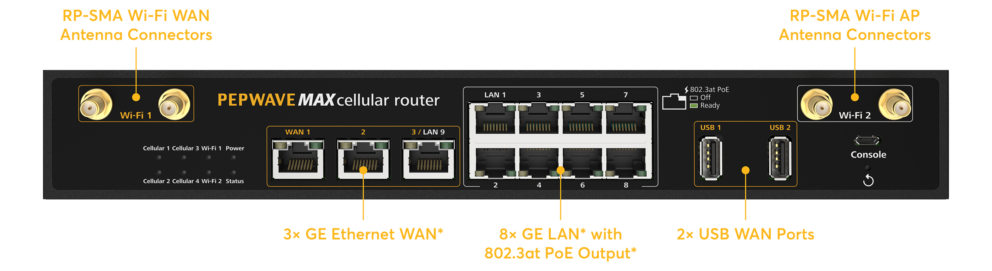

Ready for Any Environment

     Fanless Design – Thrives in high-particle environments that would break other fan-based routers.

     8×802.3at PoE Outputs – Power your IP phones, cameras, and access points.

     Robust Metal Enclosure – Same dimensions as the previous HD4, so it can fit seamlessly into any of your previous deployments.

Ideal for On-The-Go Deployments

Ignition Sensing gives it the ability to turn on and off depending on whether the vehicle has started. Upon vehicle shutdown, the MBX can also shut down after a user-defined interval, saving the battery from excessive drain.

The HD4 MBX also supports the optional SIM Injector, which adds another 8 cellular providers to connect with. This mitigates weak spots in cellular coverage, ensuring consistent connectivity. If your deployment crosses national boundaries, you can also use the SIM Injector to load multiple SIM cards, preventing roaming charges.

FirstNet Ready & ESN Certified

FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity. The HD4 MBX supports band 14, providing additional coverage as the situation demands.

The device has also been certified by the UK’s Emergency Services Network (ESN).

Future Proof Design. Ready for 5G

Right out of the box, the HD4 MBX supports Gigabit LTE. For future technologies, the MBX features a swappable cellular module, so when you need to upgrade to 5G, you can simply swap your old one with a new one. The MBX is also capable of 2.5Gbps of throughput, giving you plenty of bandwidth for Gigabit Ethernet, 5G, or any future mobile technologies.

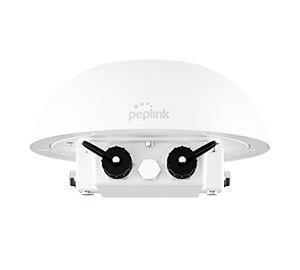

Pair with the 5G Ready Outdoor Antenna

The 5G ready Outdoor Antenna is suited to a wide range of outdoor public safety, mobile healthcare, and even transportation deployments. It has support for extensive 5G global cellular frequencies including Band 71, ensuring enhanced reliability and coverage for any business-critical application.
