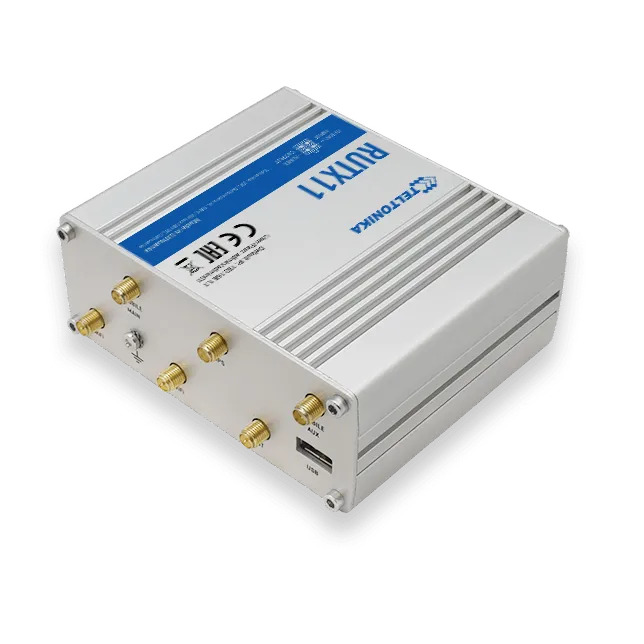

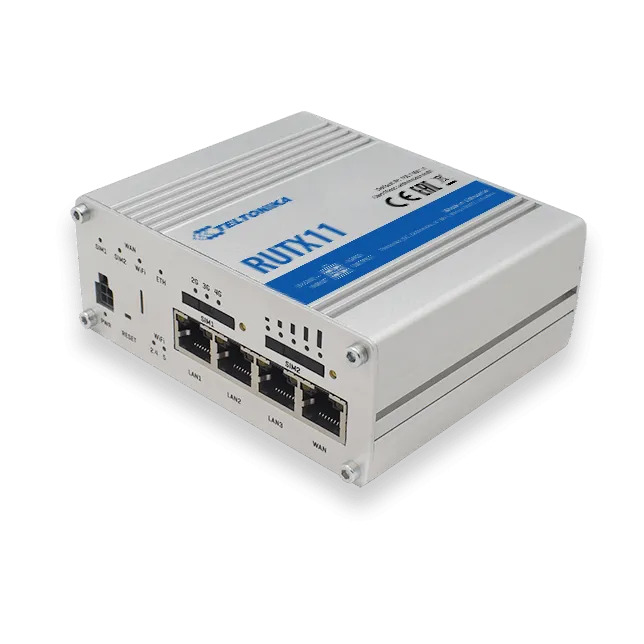

Teltonika RUTX11 – Dual SIM 4G Router


SKU: RUTX11 Categories: ,

Key Features

  • LTE-A Cat6 cellular IoT router
  • Dual SIM, Carrier Aggregation and Gigabit Ethernet interfaces
  • VPN, Firewall and plenty of processing power for custom applications on OpenWrt based RutOS system
  • Support LTE Cat 6 up to 300 Mbps
  • Gigabit Ethernet
  • Dual-SIM with auto Failover, Backup WAN and other SW features
  • Teltonika Remote Management System compatible
  • Multiple VPN services
  • Easy to use, secure and feature rich OpenWrt based Operating System.


This powerful LTE router is designed as a Main/Backup Internet source where steady connection and high data throughput is required

Equipped with Dual-SIM and 4 x Gigabit Ethernet ports. RUTX09 has all advanced RutOS software and security features.

Specifications / Frequency

  • Mobile module: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
  • Input: 1 x Digital Input (Non-isolated, Logic low 0…+5V, Logic high +8…+40V)
  • Output: 1 x Digital Output (open collector type, 30V@0.3A)
  • Connector: 4 pin industrial DC power socket
  • Input voltage range: 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
  • PoE (passive): Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards
  • Power: 4 pin industrial DC power socket
  • Power consumption: 11W Max.
  • Antennas: 2 x SMA for LTE, 1 x SMA for GNNS
  • Bridge: Direct connection (bridge) between mobile ISP and device on LAN
  • Multiple PDN: Possibility to use different PDNs for multiple network access and services
  • Band management: Band lock, Used band status display
  • OpenVPN: Multiple clients and server can be running simultaneously, 12 encryption methods
  • RMS: Teltonika Remote Management System (RMS)
  • Operating system: RutOS (OpenWrt based Linux OS)
  • Wi-Fi – 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
