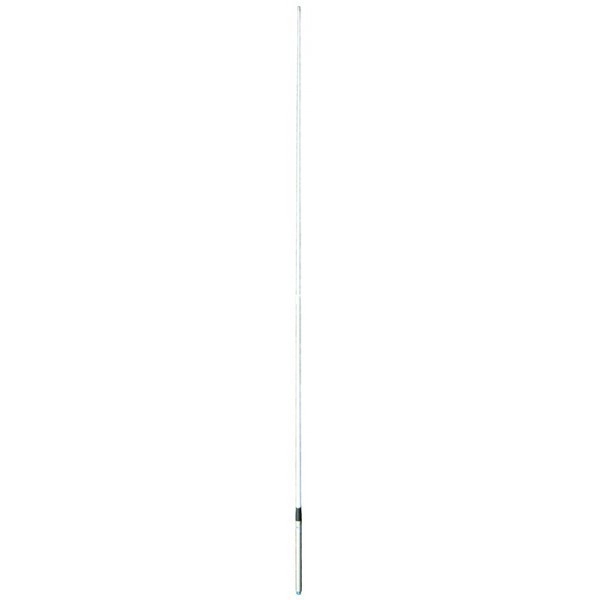

ZCG Scalar 12dBi 477MHz UHF Base Station Antenna

SKU: ZN2-77-09

Key Features

  • All white fiberglass construction
  • Broadcast grade
  • Stainless steel mount tube
  • Australian made.

Usage

  • The ZN2-77-09 omnidirectional collinear is perfect for use as a UHF CB radio base station antenna
  • Constructed with precision 1/2 wave transposed elements to achieve its high 12 dBi gain, and is mounted on a marine grade aluminum mounting tube
  • Standing 3.3 metres tall and factory tuned for 477 MHz, the ZN2-77-06 can be mounted to a mast, building or other structure
  • An N-Female connector rated for up to 100 watts input power is located at the base of the mount tube
  • All components used are of the highest quality to ensure long term survival in the harshest weather conditions and environments
  • These antennas will deliver reliable performance for many years.

Connection

N Female Connector

  • This antenna has an integrated N Female connector at the base of the mounting tube
  • Cable not included.

Please contact us if you would like a shorter length of cable, or a different connector and we will customise this antenna for you.

A heads up!

  • Special Delivery Information: This product is over 3300mm long and can only be delivered by a courier (not Australia Post) so we cannot accept a PO Box
  • Please provide an address where someone will be present to sign for the package. This item cannot be sent internationally.
