Cel-Fi GO G51 Repeater Kit for Fringe or Hilly Areas – Telstra or Optus

SKU: G51-KIT-FRINGE Category:

Key Features

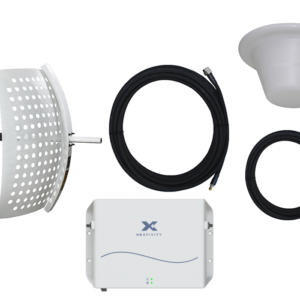

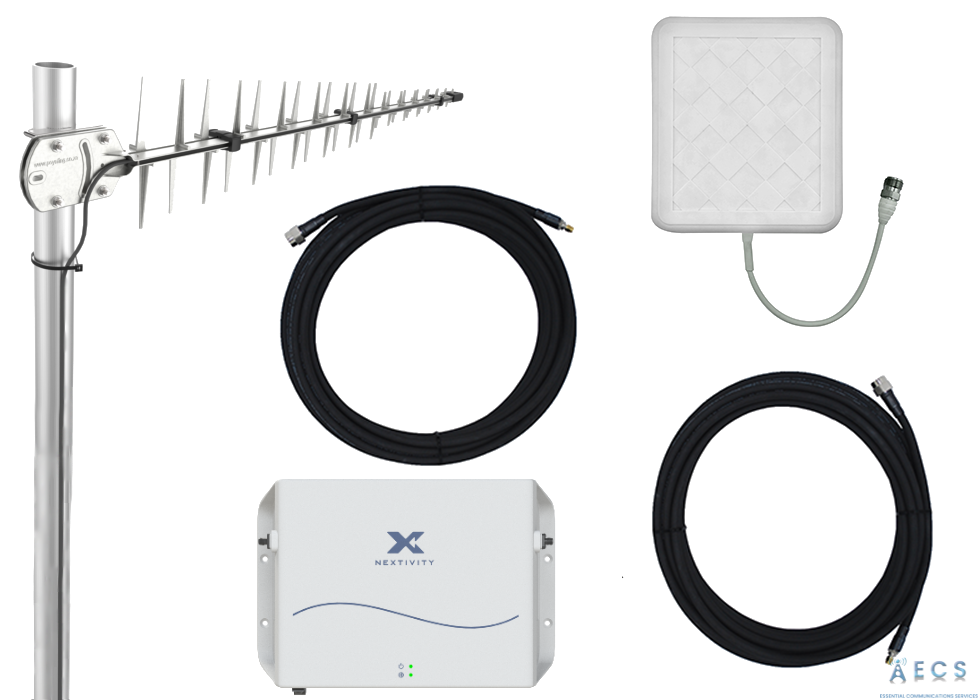

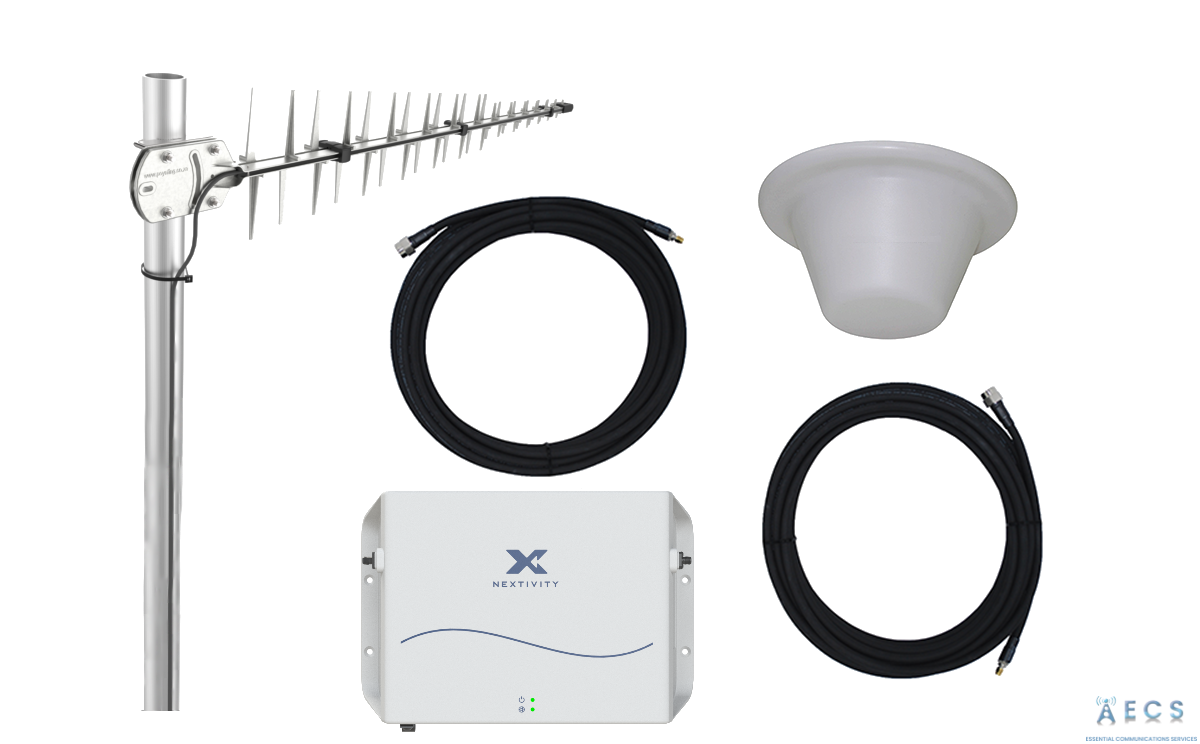

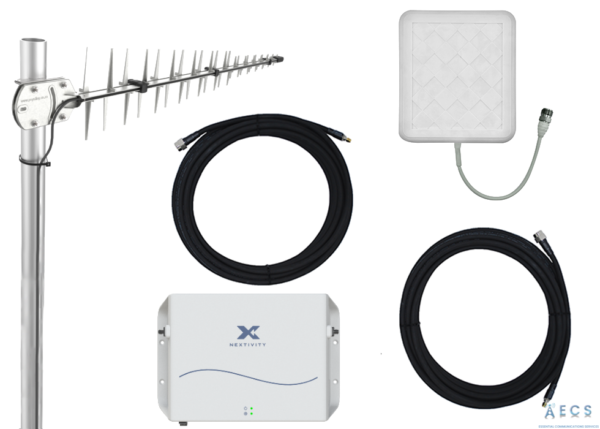

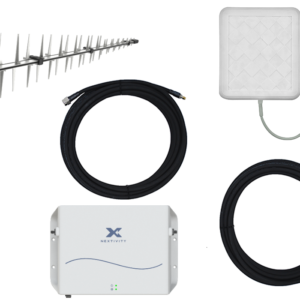

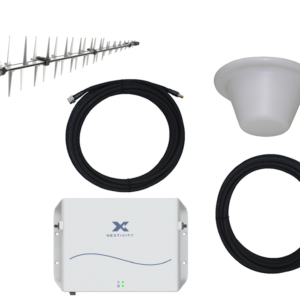

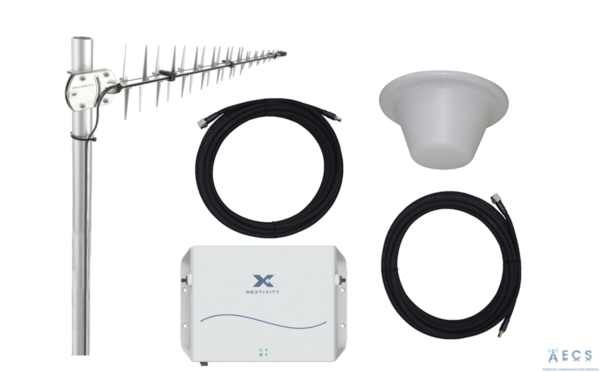

  • Complete package with an Externally Mounted Donor Antenna, Cabling, Cel Fi Go Repeater & a Ceiling Mounted Distribution Antenna
  • Compatible with Telstra or Optus – the Go will allow you to select which one upon Registration
  • Switch between the Cellualar Bands via the Wave App
    • Apple
    • Android
    • Supports all 3G & 4G frequency bands for Telstra & Optus
  • Mid-band (3.5 GHz) 5G NR coverage with 100 MHz channel bandwidth
  • Two band simultaneous relay – Up to 40MHz
  • Ease of remote monitoring and management with Nextivity WAVE Portal and WAVE App

The Cel-Fi Go Repeater is a convenient solution for those experiencing poor phone coverage within the Home or Office.

Installing this device in your home can improve the reliability of phone calls, and text messages, and increase 3G & 4G & 5G N78 services.

This is a complete repeater system designed to provide indoor coverage.

The wideband Directional Log Periodic Antenna is ideal for for areas with hills or dense vegetation causing low signal, typically the tower is within 15-20km from your location.

The LPDA Antenna is connected to the repeater via a run of super low loss ultra-flexible LCU400 cable with an SMA fitting, which allows the cable to connect to the Cel Fi Go’s input connector directly.

The Cel-Fi will need to be located near a Power Source, as a standard 240v Plug supplies it power.

The Cel-Fi Repeater is then connected to another run of the LCU400 which is run out to the location where you wish to install the Distribution Antenna.

We offer two types of Distribution Antenna, either a Ceiling Mounted Omni Directional Antenna or a Wall Mounted Directional Panel Antenna.

With the Ceiling Mounted Antenna, the Repeater provides enough boost to create a 10-30m radius of coverage within normal home or office environments, with up to an impressive 50m radius in open areas such as supermarkets or farms.

With the Wall Mounted Panel Antenna, the Repeater provides enough boost to create a 100° arc of Coverage out over a 20-60m, with some customers reporting signals out past the 100m mark.

Like all wireless systems, the coverage area is reduced by the signal traveling through thick walls or floors, so the actual coverage area will vary depending on your unique situation.

Please note: This Kit does not include a mounting Pole/Mast, this will need to be purchased separately if you don’t already have one.

Professional installation required – Buildings

  • This is an active radio transmitter that requires the appropriate level of theoretical knowledge to install without causing self-interference and for it to operate at full strength. So while it’s possible to self-install, we do not provide the Cel-Fi GO in a package or kit form, as every installation will be different.
Length of Cable from the External Antenna to the Repeater

5m, 10m, 15m, 20m, 25m, 30m, 40m

Choose your Distribution Antenna

Ceiling Mounted Omni Directional Antenna, Wall Mounted Directional Antenna

Length of Cable from the Repeater to the Distribution Antenna

1.5m, 3m, 5m, 10m, 15m, 20m
